Winglets allow the wings to be more efficient at creating lift, which means planes require less power from the engines. ... Winglets help mitigate the effects of "induced drag." When an aircraft is in flight, the air pressure on top of the wing is lower than the air pressure under the wing.

What are the purpose of winglets?

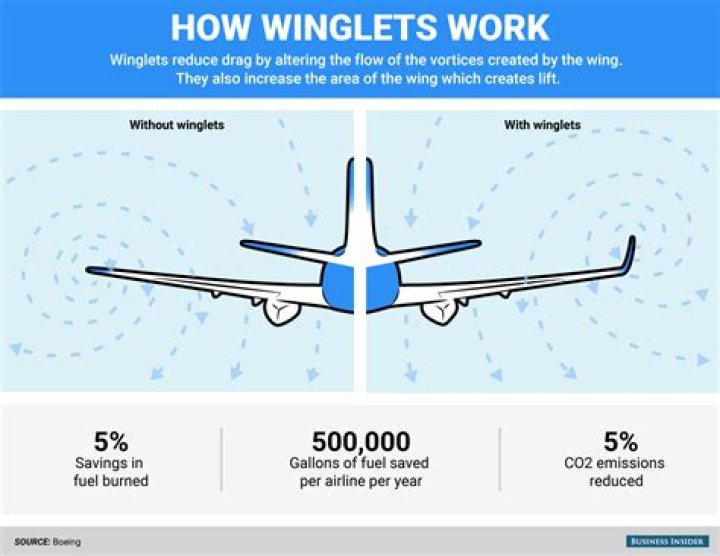

Winglets are vertical extensions of wingtips that improve an aircraft's fuel efficiency and cruising range. Designed as small airfoils, winglets reduce the aerodynamic drag associated with vortices that develop at the wingtips as the airplane moves through the air.

Are winglets effective?

Flight tests showed that the winglets increased range by about 6.5 percent and improved directional stability.

Why do some planes have winglets and some don t?

Aircraft manufacturers have been using additional 'bits' on the ends of wings since the beginning of the 2000s. These small additions, commonly known as winglets, are designed to improve the efficiency of the aircraft by reducing drag.

Can a plane fly without winglets?

Winglets are the folded up piece at the end of the wing. They're installed to decrease wingtip vortices, which is another cause of drag on the aircraft. ... Without them, the plane will have to deal with more vortex drag, and will not be able to fly as easily, but it will still be able to fly.

Winglets - How Do They Work? (Feat. Wendover Productions)

21 related questions found

How much do winglets cost?

Winglets cost anywhere from $500,000 for a 737 to more than $2 million for bigger planes. But the payoff can be rapid. Southwest Airlines estimates that it saves 54 million gallons of fuel every year thanks to equipping 93 percent of its fleet of 737s with winglets.

Do winglets improve performance?

Winglets produce an especially good performance boost for jets by reducing drag, and that reduction could translate into marginally higher cruise speed. But most operators take advantage of the drag reduction by throttling back to normal speed and pocketing the fuel savings. Several airliners use them.

How much fuel do winglets save?

Depending on the airplane, its cargo, the airline's routes, and other factors, blended winglets can: Lower operating costs by reducing block fuel burn by 4 to 5 percent on missions near the airplane's design range.

Why do 777 not have winglets?

For example, Boeing's hot-selling 777 wide-body airliner does not have winglets. According to Gregg, that's because the 777 operates from international terminals designed for larger jumbo jets. As a result, Boeing found the performance it was seeking without the need for vertical extensions.

What are winglets made of?

This is achieved by calming the small vortices of air, which form on wingtips as the airplane cruises in level flight. Most airplane winglets are made of high-tech polymers. They can be retrofitted to aircraft that were originally designed without them. Adding winglets to an aircraft extends its range.

Why do plane wings bend up?

Due to the angle at which the wing is fixed to the aircraft fuselage, higher air pressure is experienced on the lower surface of the wing than on the upper surface. This creates a pressure difference between the top and bottom sections of the wing, which generates lift (upward movement of the aircraft).

Why are airplane wingtips turned up?

The winglet is there to reduce vortex drag, which is the spiralling flow of air that forms under the tip of the wing mid-flight. ... Winglets have been a feature of jets for the past few decades, and their design was inspired by the upturned feathers on bird's wings as they soar through the air.

Why do airplane wings have tips?

Winglets allow the wings to be more efficient at creating lift, which means planes require less power from the engines. ... Winglets help mitigate the effects of "induced drag." When an aircraft is in flight, the air pressure on top of the wing is lower than the air pressure under the wing.

Do winglets reduce wake turbulence?

Winglets reduce wake turbulence thus minimizing its potential effect on following aircraft. Winglets come in different shapes and sizes with each type performing the same basic drag-reducing function. They have proven to be very effective even when retrofitted to aircraft originally designed in the 1960s.

Do winglets reduce turbulence?

They're called winglets, and their purpose is to reduce turbulence at the tips of an airplane's wings. ... By breaking up vortices, winglets reduce the drag on an airplane, which translates into fuel savings.

What is meant by winglet?

: a small wing also : a nearly vertical airfoil at an airplane's wingtip that reduces drag by inhibiting turbulence.

Is 747 better than Airbus?

Boeing claims that the 747-8 is more cost-effective per seat per mile than any other aircraft. However, Airbus claims that the A380 is the most efficient jet in the world. It does not make much sense to compare the two jets in fuel burn and seat-mile cost. The planes are considerably different in size.

Do airplane wings flex?

Aircraft wings can flex much more than most people realize. During testing, the Boeing 787 wings flexed 26 feet upward before failing. ... Compared to earlier jets, today's aircraft have longer, thinner wings that are more flexible, more fuel-efficient and provide a softer ride.

What is the difference between a 737 and 747?

The 737 has flown more miles than the 747. Percentage wise, the 737 is safer than the 747. Boeing offers more 737 variants than 747 variants, with around 13 in total. Due to having two engines, the 737 is significantly quieter than the 747.

Why are winglets so expensive?

The popularity of the wings makes them more expensive. This goes back to a classic supply and demand situation. The supply of wings has a hard time keeping up with the demand. As wings get more and more popular, there are other places that are starting to offer wings.

Do winglets reduce noise?

Winglets are a proven way to reduce aircraft drag, save fuel, cut carbon dioxide and nitrogen oxide emissions, and reduce noise. They increase range and enable a faster rate of climb.

When did winglets become common?

Introduced in 1999, the winglet technology has become popular because of the significant fuel savings it provides for aircraft -- ranging from 100,000 to 250,000 gallons per year per aircraft.

Do winglets save fuel?

Employing APB's Blended Winglets, a typical Southwest Boeing 737-700 airplane saves about 100,000 gallons of fuel each year. The technology in general offers between 4- and 6-percent fuel savings, says Stowell. ... Winglets also help planes operate more quietly, reducing the noise footprint by 6.5 percent.

What force does a winglet effect?

The Benefits of Winglets

An aircraft's wing is shaped to generate negative pressure on the upper surface and positive pressure on the lower surface as the aircraft moves forward. This unequal pressure creates lift across the upper surface and the aircraft is able to leave the ground and fly.
