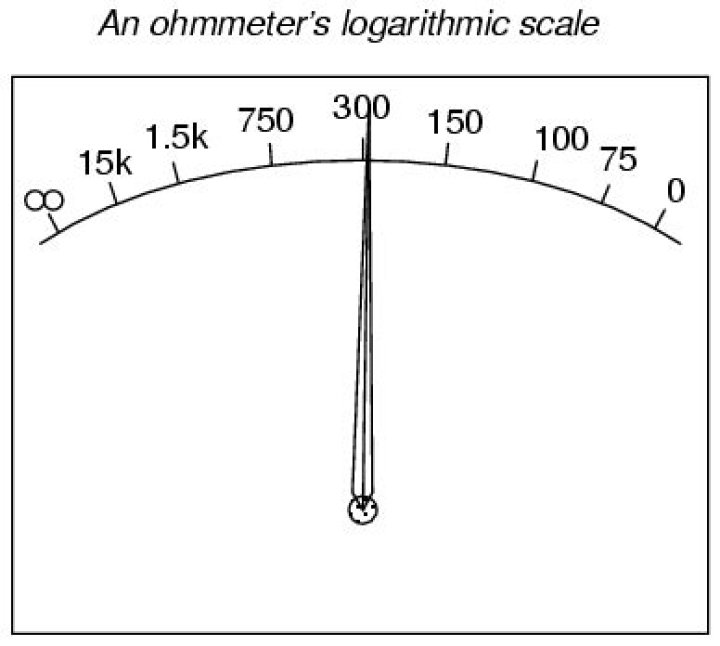

Ohmmeters contain internal sources of voltage to supply power in taking resistance measurements. An analog ohmmeter scale is “backwards” from that of a voltmeter or ammeter, the movement needle reading zero resistance at full-scale and infinite resistance at rest.

What does it mean by non linear scale of the ohmmeter?

Ohmmeters contain internal sources of voltage to supply power in taking resistance measurements. ... Analog ohmmeters also have nonlinear scales, “expanded” at the low end of the scale and “compressed” at the high end to be able to span from zero to infinite resistance.

Is the ohmmeter scale on your vom linear or nonlinear?

2. Ohmmeter Scale- Nonlinear scale where reading of the resistance is based. It is usually found in the uppermost part of the VOM.

What is a non linear scale?

Linear and Non Linear Scales. A linear scale is a scale with equal divisions for equal vales, for example a ruler. Non Liner scales have adjacent graduations that not equivalent, for example in this picture of a non-linear power scale.

What is Rx1K on a multimeter?

The range selector switch has an ohms section marked “Rx1K,” or “x10K,” and so on. This means that at x10K, the scale reading is multiplied by 10. ... If a switch on one of your electronic accessories stops working, you can test it with the multimeter. Place the multimeter probes on either side of the switch.

Ohmmeter principles

32 related questions found

Why resistance opposes the flow of current?

Resistance is the property of a material by virtue of which it opposes the flow of electrons through the material. When the voltage is applied across the resistor the free electrons start accelerating. ... These moving electrons collide with each other and hence opposes the flow of electrons.

What does Rx100 mean on a multimeter?

meter set to Rx1 what you read is the number of ohms 25 is 25.Rx10 multiply by10 so if you read 25 on this setting,25x10=250 ohms,if you're set on Rx100 then the number of ohms is 2500.

What is linear vs nonlinear?

Linear means something related to a line. ... A non-linear equation is such which does not form a straight line. It looks like a curve in a graph and has a variable slope value.

In which instrument the scale is non-linear?

Electrostatic instruments, moving iron instruments and EMMC instruments have non-linear or non-uniform scale. Moving coil instruments (PMMC) have a uniform or linear scale.

How does an ohmmeter measure resistance?

Resistance is measured with the circuit's power turned off. The ohmmeter sends its own current through the unknown resistance and then measures that current to provide a resistance value readout.

What are the other uses of ohmmeter?

Ohmmeter is an electronic instrument which is widely used to check a complete circuit or to measure the resistance of a circuit element. Micro Ohmmeter, Mega Ohmmeter and Milli- Ohmmeters are used to measure resistance in different applications of electrical testing.

What is the danger of using an ohmmeter in an active circuit?

By measuring the value of current, it can display a calculated value of ohmic resistance. Because it has an internal voltage source, ohmmeters cannot ever be connected in live circuits as they could cause damage to equipment or injury to the operator.

What is an ohmmeter And what are the procedures in interpreting resistance using an ohmmeter?

Set your multimeter to the highest resistance range available. The resistance function is usually denoted by the unit symbol for resistance: the Greek letter omega (Ω), or sometimes by the word “ohms.” Touch the two test probes of your meter together. When you do, the meter should register 0 ohms of resistance.

What is the purpose of an ammeter?

ammeter, instrument for measuring either direct or alternating electric current, in amperes. An ammeter can measure a wide range of current values because at high values only a small portion of the current is directed through the meter mechanism; a shunt in parallel with the meter carries the major portion.

How does an ohmmeter work?

The working principle of Ohmmeter is, when current flow through the circuit or component, the pointer deflects in the meter. When a pointer moves the left side of the meter, it represents a high resistance and responds to low current. The resistive measuring scale is nonlinear in an ohmmeter and the analog multimeter.

What makes something nonlinear?

If the points have the same slope, the equation is linear. If the graph does not have a constant slope, it is not linear.

Why is yy nonlinear?

yy′ makes it nonlinear as has been said, because that coefficient on y′ is not in x. Had that coefficient been a constant, you would have been correct to call it linear, since constants can be functions of x. Like, f(3)=x. Its graph is a line, i.e. linear function.

What makes a function non-linear?

Non-linear means the graph is not a straight line. The graph of a non-linear function is a curved line. ... Although the slope of a linear function is the same no matter where on the line it is measured, the slope of a non-linear function is different at each point on the line.

What is the purpose of a linear scale?

A linear scale, also called a bar scale, scale bar, graphic scale, or graphical scale, is a means of visually showing the scale of a map, nautical chart, engineering drawing, or architectural drawing. A scale bar is common element of map layouts.

How do you determine if a molecule is linear or nonlinear?

The key difference between linear and nonlinear molecules is that linear molecules have a chemical structure which is in a straight line whereas nonlinear molecules have a zig-zag or cross-linked chemical structure.

What does non-linear mean in physics?

In physics and other sciences, a nonlinear system is the opposite of a linear system, that is a system that does not satisfy the superposition principle, which means that the output is not directly proportional to the input.

What is the highest range of ohmmeter?

Ohmmeter Ranges. The amount of circuit resistance to be measured may vary over a wide range. In some cases it may be only a few ohms, and in others it may be as great as 1,000,000 ohms (1 megohm).

Who invented multimeter?

In 1920, a British Post Office engineer, Donald Macadie, is credited with inventing the very first multimeter. The story goes that he was frustrated that he needed to carry a bunch of different tools when working on telecom lines, so he created one tool that could measure amperes, volts, and ohms.

In what instrument is the ohmmeter found?

An ohmmeter is an electrical instrument that measures electrical resistance (the opposition offered by a circuit or component to the flow of electric current). Multimeters also function as ohmmeters when in resistance-measuring mode.
