subplot( m , n , p ) divides the current figure into an m -by- n grid and creates axes in the position specified by p . MATLAB^® numbers subplot positions by row. ... subplot( m , n , p , 'align' ) creates new axes so that the plot boxes are aligned. This option is the default behavior.

What is the use of subplot?

subplot divides the current figure into rectangular panes that are numbered row-wise. Each pane contains an axes. Subsequent plots are output to the current pane. subplot(m,n,p) creates an axes in the p -th pane of a figure divided into an m -by- n matrix of rectangular panes.

What is the difference between plot and subplot in Matlab?

subplot places multiple figures within the same window. You can place plots within a m x n grid, where m contains the number of rows and n contains the number of columns in your figure. p determines where you want to place your plot within the grid.

How do you plot a sub plot in Matlab?

h = subplot(m,n,p) , or subplot(mnp) breaks the Figure window into an m -by- n matrix of small axes, selects the p th axes object for for the current plot, and returns the axis handle. The axes are counted along the top row of the Figure window, then the second row, etc.

What is the use of stem in Matlab?

stem( X , Y ) plots the data sequence, Y , at values specified by X . The X and Y inputs must be vectors or matrices of the same size. Additionally, X can be a row or column vector and Y must be a matrix with length(X) rows. If X and Y are both vectors, then stem plots entries in Y against corresponding entries in X .

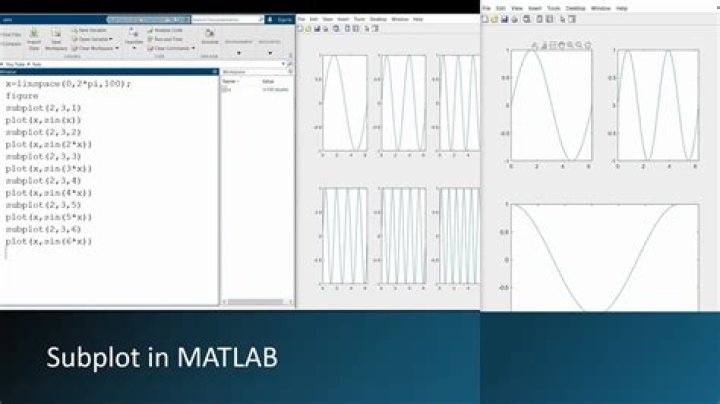

Subplots In MATLAB

42 related questions found

What is subplot in MATLAB?

subplot( m , n , p ) divides the current figure into an m -by- n grid and creates axes in the position specified by p . MATLAB^® numbers subplot positions by row. The first subplot is the first column of the first row, the second subplot is the second column of the first row, and so on.

What is difference between plot and stem?

Both plot and stem functions are used to represent a curve in MATLAB. The main point of difference between the two is that plot displays the continuous values for the curve. ... On the other hand, stem displays the discrete values of the points on the curve.

What is the difference between plot and subplot command?

The difference is that the subplot deals with issues in a storyline that aren't essential to the plot, whereas the plot deals with major events in the storyline that contribute to the arc of it.

What is a subplot example?

For example, in an action movie, a romantic subplot will often overlap with the main plot by thrusting the love interest into peril. A classic example would be a villain capturing a love interest, the protagonist further motivated to defeat this villain as the stakes have become personal (if they weren't already).

What describes an advantage of using subplot?

As a novelist you can add depth and emotional connection with your readers with a subplot. You'll deepen your story and expand insight into your characters. As a story device a subplot expands the story beyond the main storyline.

What is a subplot?

What Is a Subplot? In fiction writing, the definition of a subplot is a side story that runs parallel to the main plot. It has a secondary strand of characters and events that can infuse important information into the main storyline.

Why We Use plot in Matlab?

The plot function in Matlab is used to create a graphical representation of some data. It is often very easy to "see" a trend in data when plotted, and very difficult when just looking at the raw numbers.

What is Xlabel in Matlab?

xlabel( txt ) labels the x-axis of the current axes or standalone visualization. Reissuing the xlabel command replaces the old label with the new label. example. xlabel( target , txt ) adds the label to the specified target object.

How do you give a subplot a title in Matlab?

There is a command suptitle, which puts the title of all subplots.

What does hold on do in Matlab?

hold on retains plots in the current axes so that new plots added to the axes do not delete existing plots. ... hold off sets the hold state to off so that new plots added to the axes clear existing plots and reset all axes properties.

What are the types of subplot?

Types of Subplots

• Main character's secondary concerns and goals. The main character can have more than one goal, usually relating to the main goal in some way. Romantic subplots are common.
• Secondary character's concern and goal. One of the other characters is the hero of his/her own plot.

What makes a good subplot?

Your subplot should always support the main plot, not compete against it for the spotlight. While you can take subplots away from the main story, you should never be able to take away the main story from the subplot. A subplot that can stand alone should be its own story.

How many subplots are there?

Most stories have at least 2 or 3 subplots, and can have more. But you don't want them to take AWAY from the main storyline, only add to it! The first 8-10 pages of your second act is where your main character will face their first major test or challenge and take the first step in their arc.

What is MNP in subplot?

Documentation of subplot

H = SUBPLOT(m,n,p), or SUBPLOT(mnp), breaks the Figure window into an m-by-n matrix of small axes, selects the p-th axes for for the current plot, and returns the axis handle. The axes are counted along the top row of the Figure window, then the second row, etc.

What is the use of plot and subplot command?

More than one plot can be put in the same figure on its own set of axes using the subplot command. The subplot command allows you to separate the figure into as many plots as desired, and put them all in one figure.

What is grid on in MATLAB?

grid on displays the major grid lines for the current axes returned by the gca command. Major grid lines extend from each tick mark. example. grid off removes all grid lines from the current axes or chart. grid toggles the visibility of the major grid lines.

What is step function MATLAB?

The step function is one of most useful functions in MATLAB for control design. Given a system representation, the response to a step input can be immediately plotted, without need to actually solve for the time response analytically.

What is Axis command in MATLAB?

axis([xmin xmax ymin ymax]) sets the limits for the x- and y-axis of the current axes. ... axis auto sets MATLAB to its default behavior of computing the current axes' limits automatically, based on the minimum and maximum values of x, y, and z data. You can restrict this automatic behavior to a specific axis.

What is subplot in octave?

Octave can display more than one plot in a single figure. The simplest way to do this is to use the subplot function to divide the plot area into a series of subplot windows that are indexed by an integer. ... The grid of plot areas created by subplot is numbered in column-major order (top to bottom, left to right).
