Monostable Multivibrators Summary Then to summarize, the Monostable Multivibrator circuit has only ONE stable state making it a “one-shot” pulse generator. When triggered by a short external trigger pulse either positive or negative.

Why is monostable multivibrator regarded as a one shot multivibrator?

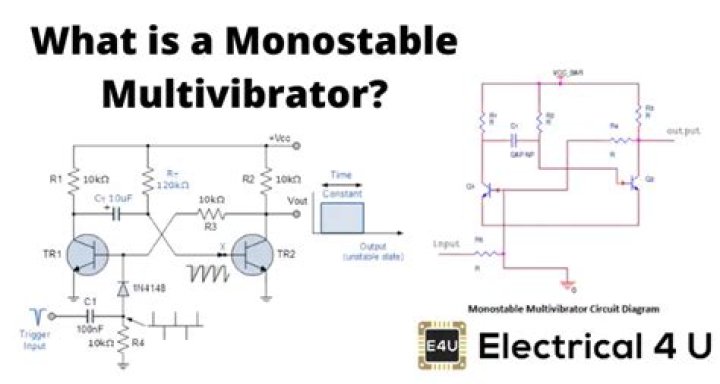

A monostable multivibrator, also called a one shot or a monoflop, is a sequential logic electronic circuit that generates an output pulse. ... Monostables may be considered as a biased form of multivibrator where it is stable in one state until triggered, then unstable and will return spontaneously.

Why multivibrator is called multivibrator?

The first multivibrator circuit, the astable multivibrator oscillator, was invented by Henri Abraham and Eugene Bloch during World War I. They called their circuit a "multivibrator " because its output waveform was rich in harmonics. ...

What is the difference between a retriggerable one shot and a non retriggerable one shot?

21. What is the difference between a retriggerable one shot and a nonretriggerable one shot? The nonretriggerable can only be triggered once. The retriggerable can be triggered many times.

Why astable multivibrator is called free-running multivibrator?

In electronic circuits, astable multivibrators are also known as Free-running Multivibrator as they do not require any additional inputs or external assistance to oscillate. ... The basic transistor circuit for an Astable Multivibrator produces a square wave output from a pair of grounded emitter cross-coupled transistors.

One-Shot or Monostable Multivibrator Digital Circuit

18 related questions found

How does a monostable multivibrator used as a frequency divider?

Explanation: Monostable multivibrator can be used as a frequency divider when a continuously triggered monostable circuit is triggered using a square wave generator. Provided the timing interval is adjusted to be longer than the period of triggering square wave input signal.

What is monostable and bistable?

Monostable – A one-shot multivibrator that has only ONE stable state as once externally triggered it returns back to its first stable state. Bistable – A flip-flop that has TWO stable states producing a single pulse either HIGH or LOW in value.

What is the difference between an astable multivibrator and a monostable multivibrator Mcq?

Explanation: Since, astable multivibrator is unstable and changes their states continually (It means that it can have both the states), whereas in monostable multivibrator, one of the states is stable, but the other state is unstable.

What controls pulse width of monostable multivibrator?

This monostable pulse generator IC can be configured to produce an output pulse on either a rising-edge trigger pulse or a falling-edge trigger pulse. The 74LS121 can produce pulse widths from about 10ns to about 10ms width a maximum timing resistor of 40kΩ and a maximum timing capacitor of 1000uF.

What is a non-retriggerable one shot?

You can use non-retriggerable one-shot mode to generate a single output pulse from the counter whenever the specified edge is detected on the counter's gate signal (after the pulse period from the previous output pulse expires). Any gate signals that occur while the pulse is being output are not detected by the module.

What is application of monostable multivibrator?

Applications of mono stable multivibrator

The monostable multivibrator is used as delay and timing circuits. It is also used for temporary memories. It is often used to trigger another pulse generator. It is used for regenerating old and worn out pulses.

What is stable state in monostable multivibrator?

A stable state is such a state where the transistor remains without being altered, unless disturbed by some external trigger pulse. ...

How can a monostable multivibrator be modified into a linear ramp generator?

How can a monostable multivibrator be modified into a linear ramp generator? Explanation: The resistor R of the monostable circuit is replaced by a constant current source. So, that the capacitor is charged linearly and generates ramp signal.

What do you mean by monostable?

adjective. (of an electric or electronic circuit) having only one stable state.

What is monostable multivibrator using op amp?

The op-amp monostable multivibrator circuit is constructed around an operational amplifier configured as a closed-loop Schmitt Trigger circuit that uses positive feedback provided by resistors R1 and R2 to generate the required hysteresis.

What are monostable circuits used for?

Monostable circuits are used as timers, pulse generators, waveform generators, and sweep generators for CRTs (cathode ray tubes) such as the ones found in some television (TV) receivers, older computer displays, oscilloscopes, and spectrum analyzers.

What is trigger in monostable?

This is a monostable multivibrator or pulse generator. The circuit must be triggered. In response to a trigger, the Q output goes high and the Q output goes low, staying there for a predetermined time and then returning to the initial state. ... If Al, Bl, and B2 are high, a high-to-low transition on A2 triggers.

How can the monostable multivibrator switches between the quasi stable state and stable state?

A Monostable Multivibrator has a stable state and a quasi-stable state. This has a trigger input to one transistor. So, one transistor changes its state automatically, while the other one needs a trigger input to change its state.

What are the advantages of monostable multivibrator?

Advantage of Monostable Multivibrator

It needs only one single pulse to start its operation there is no need of extra pulse for its operation. Its construction is very simple and can be constructed easily. Due to simple construction its price is also less.

Which is not a type of monostable multivibrator?

Explanation: A Schmitt trigger circuit is a comparator circuit, also called a regenerative comparator. It converts any waveform into a square wave. It is not a monostable multivibrator, unlike the other three options.

What determines the pulse time in a monostable multivibrator Mcq?

Detailed Solution. Hence, the timing cycle of the monostable multivibrator is determined by the timing capacitor, C _T, and the resistor R _T until it resets or returns to the original state. It remains in the original stable state indefinitely until another input pulse or trigger signal is received.

Which multivibrator has two stable states?

Bistable Multivibrators have TWO stable states (hence the name: “Bi” meaning two) and maintain a given output state indefinitely unless an external trigger is applied forcing it to change state.

What is monostable switch?

A Monostable Multivibrator generates a single pulse output when activated by a trigger command. The switch debouncer circuit will recognize the first state condition activated by the switch and latch the circuit into this condition for a predetermined period of time until the switch bouncing settles down.

Which mode can be used as monostable multivibrator?

The following figure is the schematic of IC 555 as a Monostable Multivibrator. This is the basic mode of operation of the IC 555. It requires only two extra components to make it work as a monostable multivibrator: a resistor and a capacitor. As the name specifies, a monostable multivibrator has only one stable state.

How can a monostable multivibrator using IC 555 be used as a PWM generator?

8. How can a monostable multivibrator using IC 555 be used as a PWM generator? Explanation: A monostable multivibrator can be used as a PWM generator if a modulating signal is applied to the control pin. The control pin is used to vary the voltage at the inverting node of the upper comparator.
