Reducing unsprung weight is the key to improving handling. The lower the unsprung weight, the less work the shocks and springs have to do to keep the tires in contact with the road over bumpy surfaces. Lot of problems, if not all of them is caused by inertia. Bigger weight means higher inertia.

What are benefits of reducing unsprung weight?

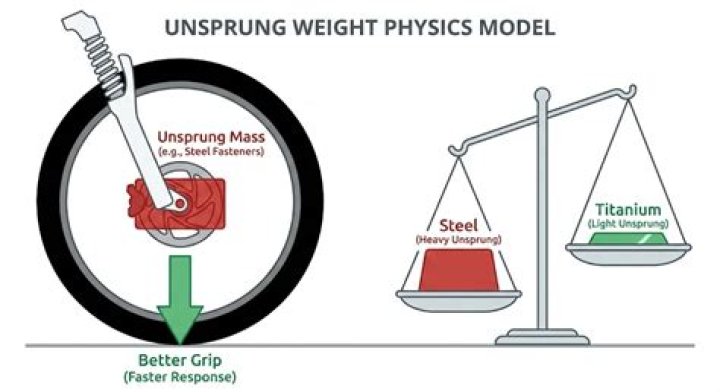

Unsprung weight is that portion of a vehicle that is not supported by the suspension (i.e. wheels, tires and brakes) and therefore, most susceptible to road shock and cornering forces. By reducing unsprung weight, alloy wheels provide more precise steering input and improved "turning in" characteristics.

How does unsprung weight affect performance?

Unsprung Mass – The Ultimate Performance Multiplier

The issue with unsprung weight is simple — it offers no performance improvement whatsoever. On the contrary, it reduces performance. More unsprung mass means that your suspension components have to work harder to keep the wheel on the ground.

Why is unsprung weight important to race cars?

With a lower unsprung weight, the tyre can be pushed back against the black-top by the suspension faster thanks to the lower inertia (an object's reluctance to changing direction or speed). Lower unsprung weight usually results in better chassis characteristics because grip is good.

What is the difference between sprung and unsprung weight and what effect does unsprung weight have on ride quality?

In simple terms, a vehicle's sprung weight is supported by springs of one kind of or another (coiled springs, air springs, Belleville springs). Unsprung weight moves up and down with the wheels as they travel over bumps, potholes, and other obstructions.

Unsprung Weight and Acceleration | Why You Should Buy Lighter Wheels

44 related questions found

What are the disadvantages of a higher unsprung weight?

Bigger weight means higher inertia. Higher inertia means more workload for shocks and springs to keep tiers on the ground. If unsprung components have a high mass they are harder to accelerate/decelerate and thus it is more difficult for the suspension to maintain a consistent tire load.

What is the difference between sprung and unsprung mass?

Sprung mass is the load sitting on top of the springs and unsprung mass is the weight connected to the bottom of the suspension.

How much does unsprung weight matter?

Why Does Unsprung Weight Matter? Unsprung weight has a huge effect on any vehicle's acceleration, braking, and cornering abilities. It's even said that at a drag strip, adding a single pound of unsprung weight to a car has the same effect as adding two or more pounds to the body.

How much is unsprung weight worth?

1 lb of unsprung = 2 lbs of static weight in performance gains.

How do you reduce unsprung mass?

The most popular modification to reduce unsprung weight is adding lighter wheels. Tires and brakes can also be swapped out for lighter versions. You can change out the suspension itself or your drive axles. Finally, you can opt for lighter nuts and bolts.

Why are lighter wheels better?

Lighter wheels can go faster because there is less weight to control. They'll help you speed up your acceleration while decreasing the time it takes you to come to a full stop. They can also contribute to greater fuel efficiency because lighter vehicles use less fuel.

Do smaller wheels improve acceleration?

Yes, smaller wheels accelerate faster, but it doesn't matter. ... A 29” wheel has more mass at a larger radius from the centre of rotation (the hub), and thus has a higher moment of inertia than a smaller wheel and is harder to get moving. So yes, bigger wheels will accelerate more slowly.

Do lighter wheels make a difference?

We always hear that lightweight wheels are better. Reducing unsprung mass theoretically helps a car's suspension work more effectively. ... We've compared light and heavy wheels a few times before, and the results consistently showed a negligible difference in autocross times–even with extreme differences in wheel weight.

Why is unsprung mass important?

A beneficial effect of unsprung mass is that high frequency road irregularities, such as the gravel in an asphalt or concrete road surface, are isolated from the body more completely because the tires and springs act as separate filter stages, with the unsprung mass tending to uncouple them.

What is clearance in a car?

Ground Clearance Meaning:

Ground Clearance (also known as ride height) is one of the most basic but very important general dimensions of a vehicle. It is defined as the minimum distance between the lower end of the vehicle body (or chassis) and the road.

Are control arms unsprung weight?

Consider all your unsprung masses; control arms and shocks are only "half" unsprung weight. Wheels, TIRES, and brakes are all unsprung mass.

Does unsprung weight affect payload?

Tires and wheels don't change payload. They're unsprung weight. Legally, they don't alter your ratings at all.

How much of a difference does wheel weight make?

In tests, drivers saw substantial improvements in lap times when they cut 12 pounds off each wheel. Getting less mass in motion also means your acceleration will make a notable improvement. In testing, many drivers knocked nearly half a second off of their 0-60 times.

Are brake calipers unsprung weight?

On the front of a motorcycle, the unsprung weight is the wheel, tire, brake discs, calipers, axle, and lower fork sliders. ... The sprung weight is everything supported by the springs—engine, chassis, fuel, and rider.

How much does weight affect acceleration of a car?

A general rule of thumb is for every 10 percent reduction in weight has a comparable 10 percent reduction in the force required to accelerate or decelerate an object. The same applies for an automobile. To break it down in quarter-mile drag racing, every 100 lb removed from a vehicle equals [approx.]

How does incorrect chassis height affect the vehicle?

Unequal camber can cause a vehicle to lead to one side. There's a safety angle, too. Ride height can also affect the aim of the headlights, which in turn affects nighttime driving safety.

What is the meaning of unsprung?

: not sprung especially : not equipped with springs.

How do you find unsprung mass?

The easiest way to measure the unsprung mass is to remove it from your vehicle and put it on a scale. Note that the statement "individual unsprung weights are located at the center of each wheel" is only a first guess/approximation.

Why was fwd invented?

He wanted something to fit the price gap between them, and he liked the idea of FWD. Miller was hired to work with Cord's engineers to modify the racing design for this new brand. Introduced for 1929, the Cord L-29 was the first American production car with power to the front wheels.

What are the causes of rough ride?

Rough, bumpy rides can be due to bad tire alignment, incorrect air pressure – too low, too high, different pressures in each tire – or even the tires not being mounted properly. Worst case scenario could be the rims themselves have become damaged or warped.
