A lap joint falls into the category of halving joints – where two halves make a whole. It is a relatively easy joint to cut and a great learning joint if you are just getting going in woodwork. While not particularly strong, lap joints are simple joints you can use to make picture frames and mirrors.

What is a lap joint joinery?

When learning joinery, a lap joint should be the first joint you master because it is the simplest option for joining two pieces of wood together. A lap joint is simply a notch cut out of one board, and a similar notch cut out of another. Then the two pieces are overlapped (hence the name) and glued together.

Is a lap joint weak?

With modern glues lap joints can be adequately strong and quite satisfactory although they may be regarded as very basic joints. ... However, corner halving joints (called above, end lap joints), are inherently weak, especially when mitred.

What are the advantages of a housing joint?

This joint is usually used on the back of drawers because it is strong and withstands stress from many directions. The housing joint is pretty suitable for almost all woodwork projects because of its simplicity and strength.

What are the advantages of joinery?

One of the reasons traditional joinery like mortise and tenon joints withstands the test of time so well is that it allows a joint to naturally expand and contract with moisture and temperature changes in the environment without devastating separation that weakens the joint and causes (often irreparable) damage to the ...

How To Make Perfect Half Lap Joints On The Table Saw

41 related questions found

What are the disadvantages of lap joints?

Disadvantages include:

• Some instances of lower tensile strength.
• Less rigid than the base materials since the weld may act as a pivot.
• Overlaps may be undesirable for mechanical or aesthetic reasons.
• Micro-cracks and cavity defects may occur if wrong welding speed is used.

Why lap joint is not suitable for sustaining heavy loads?

Owing to load eccentricity, single lap joint adherends bend during loading and, as the joint is unsymmetrical, the plane of the bond can rotate, introducing large peel stresses at the ends of the adhesive layer. This can lead to premature failure and an underestimate of the shear capacity of the adhesive.

Why are the two pieces of timber forming a half lapped joint Both gauged from the same face?

A half lap joint is where two pieces of stock, which are typically the same thickness, have half of the material removed so that the two boards fit together so that the joint adds no thickness at the joint.

What are common uses of a lap joint?

Lap joints are easy to make but aren't the sturdiest joints. These joints are often made with the help of glue or nails and are used in frames, boxes, cabinets, decks, and patio furniture among other places.

What is a lapped dovetail joint?

There are several varieties of dovetail joint, but perhaps the most common – and the most familiar – is the lapped dovetail. This is used when you want to hide the joint on one side, but make it visible on the other. Its most common use is in drawer construction.

Is a cross lap joint strong?

They provide excellent amounts of strength, even with little to no reinforcement. A cross-lap joint's shoulders prevent diagonal distortions called "racking," especially when strengthened with dowels or fasteners.

What is a half lapped joint?

In a half lap joint or halving joint, material is removed from both of the members so that the resulting joint is the thickness of the thickest member. Most commonly in half lap joints, the members are of the same thickness and half the thickness of each is removed.

What is the strongest wood joint?

Mortise and Tenon Woodworking Joints

One of the strongest woodworking joints is the mortise and tenon joint. This joint is simple and strong. Woodworkers have used it for many years. Normally you use it to join two pieces of wood at 90-degrees.

Can you rip a 2x4?

You can rip 2 x 4 on a table saw effectively provided you set the rip fence correctly, use proper technique and use the right tools. The proper technique while ripping a 2x4 is to apply pressure in three directions, that is, against the rip fence, forward (for pushing the wood), and downwards for keeping the wood flat.

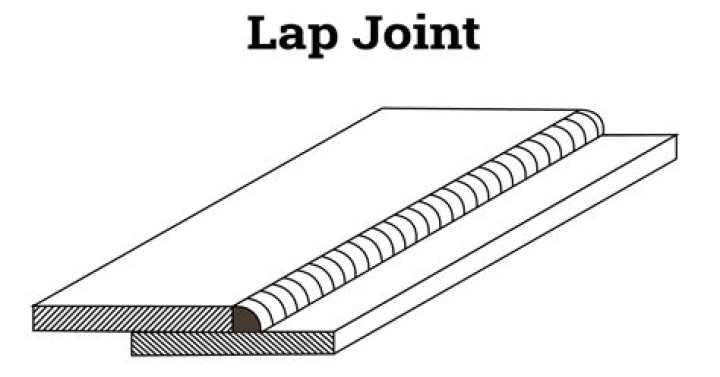

What is lap welding?

A lap weld is the result of the weld made on a lap joint. A lap weld consists of two or more materials that are overlapped on top of one another. The edge of one material is melted and fused with the surface of another material. ... Lap welds are commonly used in welding processes that involve automation.

What is a single lap joint?

Single-lap joints are a widely-used and relatively strong and simple way joining two materials via an overlapping bond. With the growing use of composite materials in modern design practices, the need to join increasingly dissimilar materials has arisen.

How do lap joint flanges work?

Lap joint pipe flanges slide directly over the pipe and are most commonly used with stub end fittings. A pipe is usually welded to the Stub End and the Lap Joint pipe flange is free to rotate around the stub end. The benefit of this is that there will not be any issues with bolt hole alignment.

What is the use of tee joint?

Tee welding joints are formed when two pieces intersect at a 90° angle. This results in the edges coming together in the center of a plate or component in a 'T' shape. Tee joints are considered to be a type of fillet weld, and they can also be formed when a tube or pipe is welded onto a base plate.

What are the advantages and disadvantages of dowel joint?

This is a way to attach wood pieces that you should think about the next time you are woodworking for the bottom reasons.

• There's No Need For Hardware. ...
• It Is Secure. ...
• Easy To Assemble. ...
• Versatility. ...
• Disadvantages Posted by Customers. ...
• Misalignment. ...
• Dowel Shearing.

What is a housing Dado?

A dado (US and Canada), housing (UK) or trench (Europe) is a slot or trench cut into the surface of a piece of machinable material, usually wood. When viewed in cross-section, a dado has three sides.

How is a mitre joint made?

A mitre joint (often miter in American English) is a joint made by cutting each of two parts to be joined, across the main surface, usually at a 45° angle, to form a corner, usually to form a 90° angle, though it can comprise any angle greater than 0 degrees.

What are the types of lap joints?

Each has a specific strength and cabinetmakers will choose which to use according to the needs of the project. Half lap, mitred half lap, cross lap and dovetail lap are the four most commonly used forms of the lap joint. Each style has a cut characteristic that makes it easily identifiable.
