The improvement in the waveform is achieved by using a diode pair in each collector branch of the transistors. This restricts the direction of current flow for the charging and discharging of the timing capacitors. ... 1 Fig 1: Conventional multivibrator using two transistors.

Why capacitor is used in multivibrator?

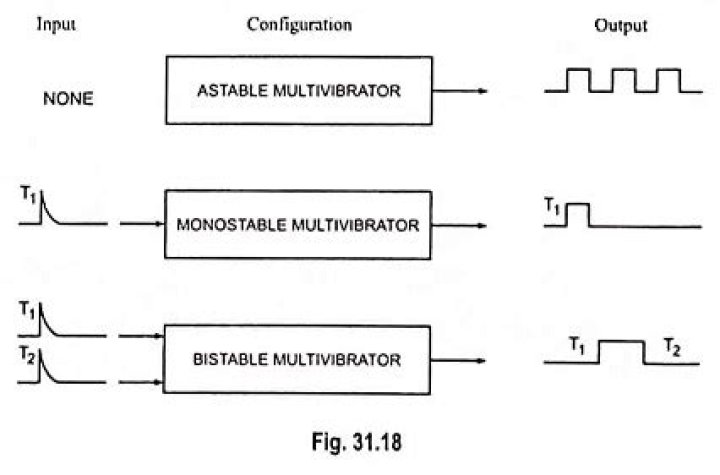

There are three main types of multivibrators. In the astable multivibrator capacitors are used to couple the two amplifier stages and provide the feedback path. ... The bistable multivibrator is also called a flip-flop, with either of two DC stable states.

What is th in astable multivibrator if a diode is connected in parallel with RB?

Frequency Modulation using Astable Multivibrator

A diode is connected in parallel to the resistor R₂ in order to generate a pulse output with duty cycle ≈ 50%.

What are the advantages of astable multivibrator?

Advantages of Astable Multivibrator

• They are very simple in design.
• They are very reliable.
• They are very easy to construct with a very low cost.
• They do not need any external triggering.
• They can run continuously for a very large amount of time without any problem.

How does a astable multivibrator work?

The basic principle of the Astable multivibrator is a slight variation in the electrical properties or characteristics of the transistor. This difference causes one transistor turn ON fast than the other when power is applied for the first time, thereby triggering oscillations.

Astable Multivibrator using BJT Explained

26 related questions found

Why astable multivibrator is called astable?

An astable multivibrator is also known as a FREE-RUNNING MULTIVIBRATOR. It is called free-running because it alternates between two different output voltage levels during the time it is on. The output remains at each voltage level for a definite period of time. ... The astable multivibrator is said to oscillate.

How does an astable work?

Astable oscillators produce a continuous square wave from its output or outputs, (two outputs no inputs) which can then be used to flash lights or produce a sound in a loudspeaker.

Which is astable multivibrator applications?

The applications of Astable multivibrators involve in radio gears to transmit and receive radio signals and also in time, morse code generators and some systems which require a square wave like analog integrated circuits and TV broadcasts.

What are the characteristics of astable multivibrator?

It is also called free-running relaxation oscillator. It has no stable state but only two quasi-stable states between which it keeps oscillating continuously of its own accord without any external excitation. When one transistor is in ON state and other remains in OFF state.

What is astable multivibrator using IC 741?

The astable multivibrator is also called as a free-running multivibrator. It has two quasi-stable states i.e. no stable state such. No external signal is required to produce the changes in state. The component values used to decide the time for which circuit remains in each state.

How astable multivibrator can be obtained by using IC 555?

An Astable Multivibrator can be designed by adding two resistors (RA and RB in circuit diagram) and a capacitor (C in circuit diagram) to the 555 Timer IC. These two resistors and the capacitor (values) are selected appropriately so as to obtain the desired 'ON' and 'OFF' timings at the output terminal (pin 3).

What is astable multivibrator using op amp?

The Op-amp Multivibrator is an astable oscillator circuit that generates a rectangular output waveform using an RC timing network connected to the inverting input of the operational amplifier and a voltage divider network connected to the other non-inverting input.

What is the duty cycle of astable multivibrator using ic555 when RA RB R?

50% Duty Cycle Astable Oscillator

The 555 oscillator now produces a 50% duty cycle as the timing capacitor, C1 is now charging and discharging through the same resistor, R2 rather than discharging through the timers discharge pin 7 as before.

What is monostable and astable?

Astable multivibrator, in which the circuit is not stable in either state —it continually switches from one state to the other. ... Monostable multivibrator, in which one of the states is stable, but the other state is unstable (transient). A trigger pulse causes the circuit to enter the unstable state.

Why do we call astable multivibrator as a free running multivibrator?

An astable multivibrator is also known as a FREE-RUNNING MULTIVIBRATOR. It is called free-running because it alternates between two different output voltage levels during the time it is on. The output remains at each voltage level for a definite period of time. ... The astable multivibrator is said to oscillate.

What is symmetrical and unsymmetrical triggering?

Symmetrical connections are exactly what they sound like; a connection with equal download and upload speeds. ... An asymmetrical connection, however, does NOT have equal download/upload speeds. For example, 60/3 means 60 Mbps download and 3 Mbps upload speed.

Is astable multivibrator is saturated?

Astable multivibrator using OP-AMP

The two states of the circuit between which it switches are those in which the amplifier output is at positive and negative saturation. ... The positive feedback from the output to terminal A causes a regenerative switching which drives the amplifier to positive saturation.

Which multivibrator has two stable states?

Bistable Multivibrators have TWO stable states (hence the name: “Bi” meaning two) and maintain a given output state indefinitely unless an external trigger is applied forcing it to change state.

How can astable multivibrator be used as a voltage to frequency converter?

The same circuit is also called a voltage-to-frequency converter (VFC) because a given voltage gives rise to a specific frequency. An astable multivibrator is used as voltage-controlled oscillator [see Fig. 7.13(a)]. ... As a result, the voltage at the base of Q ₂, V _B2 varies with time, ...

Which one is the astable application?

Astable multivibrators are used in the applications like pulse position modulation, frequency modulation, etc. as they are simple, reliable and easy to construct.

What is difference between monostable and bistable?

Monostable – A one-shot multivibrator that has only ONE stable state as once externally triggered it returns back to its first stable state. Bistable – A flip-flop that has TWO stable states producing a single pulse either HIGH or LOW in value.

Why astable multivibrator does not require any triggering?

Definition: An astable multivibrator is a type of multivibrator that does not require a triggering pulse thus, sometimes known as a free-running multivibrator. It necessarily provides square wave as its output. Astable multivibrator is called so because both the states present here are unstable i.e., quasi-stable.

Is used for implementation of astable multivibrator?

It is implemented by the coupling capacitors that instantly transfer voltage changes because the voltage across a capacitor cannot suddenly change. ... Accordingly, one fully charged capacitor discharges (reverse charges) slowly thus converting the time into an exponentially changing voltage.

What is true about astable multivibrator or a monostable multivibrator?

Explanation: Since, astable multivibrator is unstable and changes their states continually (It means that it can have both the states), whereas in monostable multivibrator, one of the states is stable, but the other state is unstable. SO Monostable Multivibrator is also known as Half-Astable Multivibrator.

What is astable multivibrator describe with proper diagram?

Construction of Astable Multivibrator

Two transistors named Q₁ and Q₂ are connected in feedback to one another. The collector of transistor Q₁ is connected to the base of transistor Q₂ through the capacitor C₁ and vice versa. ... The following figure shows the circuit diagram for Astable Multivibrator.
