Do joists and trusses run same direction? When building a house, it is actually quite the opposite and most floor joists and floor trusses are laid perpendicular to each other.

How do you know which way rafters run?

An important thing to know about joists is that they usually run in the same direction throughout a house. If the visible joists in a basement or attic run east to west, for example, you can be fairly certain the invisible joists under the bedroom floor also run east to west.

Does floor joist direction matter?

Wood floors should always be laid perpendicular to floor joists—across rather that in between them. This will make the floors structurally sound and will help prevent the planks from separating, sagging or buckling. So, there is no right or wrong way to lay your wood flooring.

In which direction should ceiling joists normally be laid?

They must be at the same spacing and in the same direction as the main rafters so they can be fixed to, and act as ties between the feet of opposing rafter pairs.

Which way do ceiling joists run UK?

Remember that the joists as a general rule will run from the front of the house to the back.

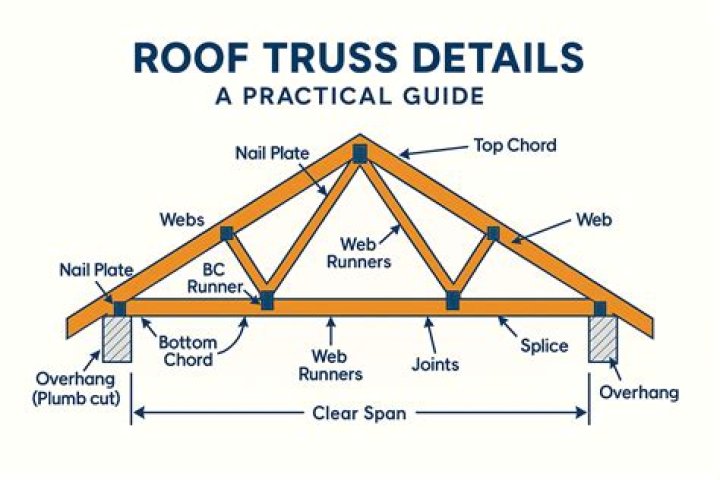

Understanding and Analysing Trusses

38 related questions found

Which way do second floor joists run?

Typically, the second story floor joists will not only run the same direction as the first floor joists, they will also be directly over them.

Which way do ceiling beams run?

For floors, they will typically run across the shorter width of the room. With ceilings that have rafters, they typically run parallel to the rafters.

How far apart are ceiling trusses?

Roof trusses should be 24” apart, on center. Trusses are allowed to be closer together, at either 12” or 16” on center, but building codes allow for 24” on center spacing without using heavier duty fasteners for truss to wall connections.

What is the difference between a stud and a joist?

Wall studs are support beams in your home's walls, they're typically 16 to 24 inches apart. ... Joists are the support beams in your floor and ceiling. You need to find these if you want to hang light fixtures, ceiling fans or fix squeaky floors.

Do floor joists run parallel to trusses?

When building a house, it is actually quite the opposite and most floor joists and floor trusses are laid perpendicular to each other. If the joists and trusses are running in the same direction, this means that they will all be attached to the same wall, increasing the load that the wall is carrying.

Which way should I run my flooring?

The most common way to lay hardwood flooring is by aligning the planks parallel to the longest wall. Apart from a few exceptions like sagging joists, this is the preferred direction to lay wood floors because it aesthetically provides the best result.

Do studs go horizontal?

The studs are the vertical pieces that make up most of a wall's frame. ... A horizontal piece at the bottom of the wall is called the bottom plate. The studs are nailed to this plate, which is nailed to the floor. At the top of the wall is the top plate.

How much space should be between trusses?

Truss Spacing: this is the distance between trusses. The standard roof truss spacing is 2'. Almost all residential trusses use this spacing. There is a misconception that spacing trusses every 16” on center is better because it will be strong than the average 2'.

Are roof trusses 24 on Center?

Trusses are generally secured 24 inches on center along the top plate. For a 30-foot long roof, a total of 15 trusses are needed.

How far apart should steel trusses be?

With traditional stick-frame construction, the trusses are usually spaced 2 feet apart. For many traditional stick-frame builders, trusses spaced 8 feet apart seems unnatural, but thanks to the ingenuity of modern engineering it is a very common building design.

How do you find a joist in the ceiling without a stud finder?

Try a Small Nail

While your there, measure the distance between joists to see if they are 16 or 24-inches apart. When you go back downstairs, you will see the nail, know which way the joists run and how far apart they are, so you can use your measuring tape to find the joist you need.

Are ceiling joists load bearing?

Walls that run perpendicular (at a 90 degree angle) to the ceiling joists are load-bearing. Walls that run parallel (in the same direction) as the ceiling joints are non load-bearing. Ceiling joists are spliced over the wall.

Can ceiling joists run perpendicular to rafters?

When you have ceiling joists running perpendicular to the rafters, you typically need rafter ties, often installed 4 feet on center. I don't see this in what you posted. It is possible the roof is supported by a structural beam instead of mere ridge board, then you may not need the rafter ties.

Do first and second floor joists run the same direction?

The second floor joists will typically run the same way that the first floor joists do.

Can joists change direction?

To change the direction joists build without changing the elevation of your floors or ceilings, place a Bearing Line along with multiple Joist Direction Lines to manually control the direction the joists generate. In this example, a simple four-walled structure will be used.

What is joist blocking?

Floor joist blocking refers to solid, lateral supports installed between floor joists to evenly distribute loads placed atop floor joists. Blocking uses lumber the same size as the floor joists and is fastened either in a staggered or straight line mid-span or every 8' depending on the length of the joist.
