The DI piston shows the forward facing directional arrow while the standard 4-valve piston shows which side should be positioned towards the exhaust valves. In any type of high-horsepower and/or high-RPM application, piston-to-valve clearance is critical.

Are Pistons directional?

Pistons always have directional arrows on them showing you which way to install them. ... The wrist pin is often offset to lessen piston side thrust to reduce wear.

Can you put pistons in backwards?

Installing the piston backwards would increase the rod angle (not reduce it as stated in the article), possibly putting it in a more favorable position for pushing down on the crank during the power stroke, but also increasing side loading in both the power stroke and compression stroke.

What happens if piston rings are installed upside down?

With the taper of the ring upside down, oil will be scraped up with each upward stroke to be left in the combustion chamber and burned on the power stroke. It only takes a minute, check all rings on the piston for correct installation before installing the pistons.

Why are pistons directional?

On the power stroke when the piston is moving down, the crank shaft is offset in different directions (mirror images of each other) depending which way the engine is turning. The parts are designed to work better turning the "right" way than the "wrong" way.

Which way do pistons fly out at 10000 revs?

42 related questions found

Which side is the thrust side of a piston?

When the crankshaft rotation is clockwise, the left side of the cylinder liner is called the thrust side (TS) and the opposite side is known as the anti-thrust side (ATS).

Does it matter which way connecting rods face?

"When assembled, the flanges on the connecting rod and cap should face to the front in the left bank and to the rear in the right bank. Install the piston with the stamped arrow facing forward."

When pistons are installed in the block the notch on the piston should be facing?

The piston notch must be forward for ALL. On the bosses 1-3-5-7 should face the rear of the engine and 2-4-6-8 should face the front of the engine.

What does the arrow mean on a piston?

The arrow shows the marking on the piston crown that indicates that is the side of piston that needs to face the exhaust. ... Either way, be sure your piston is facing the correct direction, meaning the exhaust valve reliefs line up with the exhaust side of the head.

How tight should a piston be in the bore?

It should be three thousandths minimum. The fit of the ring in the piston may not allow the ring to fully collapse around the cylinder if the rings are checked out ok.

What is piston offset?

By offsetting the piston pins, the engine runs quieter and produces more horsepower due to lower friction during the combustion event. ... Offsetting the pin bore slightly increases the stroke which may be enough to throw the engine out of spec for some racing classes that limit displacement visa bore or stroke.

Is an engine that uses one side of the cylinder and one face of the piston to develop the power?

A single-acting cylinder in a reciprocating engine is a cylinder in which the working fluid acts on one side of the piston only.

What is side thrust?

1A lunge from the side with a sword or other sharp weapon; (figurative) an indirect attack or criticism, a sideswipe.

Which piston ring goes on top?

When you first open the box, you will see that the tabs say “1”, “2” or “3” to show which groove the rings are. Once you've removed the rings from the box, you'll see that the 2^nd groove ring has a dot on the top and an inside bevel at the bottom. Install the dot toward the top of the piston.

Which Piston Ring Goes On top black or silver?

The black/dark ring goes on the bottom. The silver one goes on top. One side of the rings will have a dot or a couple letters or some kind of mark to indicate that is the "top" of the ring.

Do piston rings rotate?

Piston rings lead a much more active life than might be thought. While we usually imagine that they only reciprocate in a motion defined by the piston, they also rotate during service. The speed of rotation of piston rings has been measured experimentally. ...

Which way does the connecting rod go?

Orientation remains the same when installed correctly on the crankshaft. Every second rod journal faces in the opposite direction (180 degrees) on each crankshaft journal. The narrower sides on the rod journal face each other, the wider part of the journals face outwards towards the crankshaft journal.

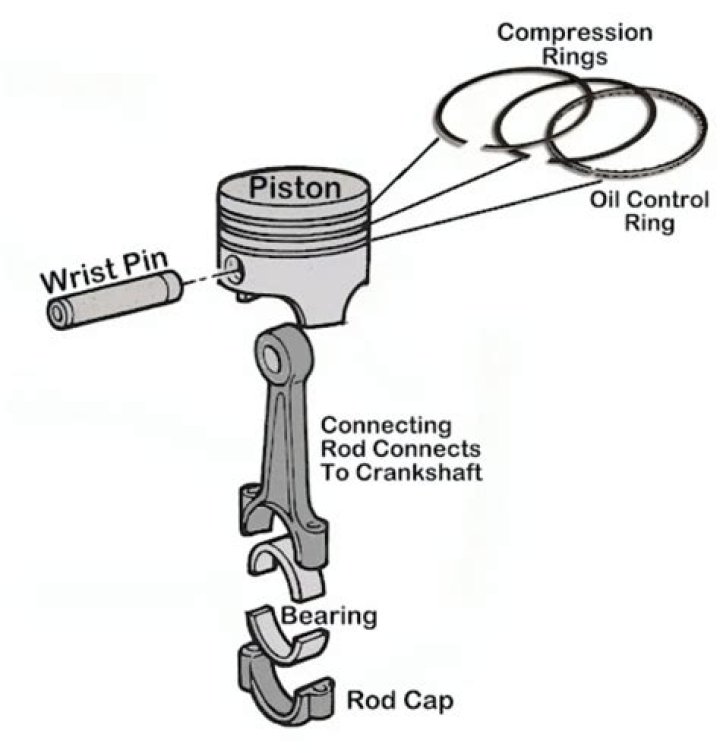

How is the piston connected to the crankshaft?

A connecting rod is the part of a piston engine which connects the piston to the crankshaft. Together with the crank, the connecting rod converts the reciprocating motion of the piston into the rotation of the crankshaft.

Where should the piston arrow point?

Arrow on piston should always point to the exhaust side.

What is used to indicate the front of a piston?

"FRONT" with Arrow on Piston Crown

Some pistons may have a laser marking on the crown of the piston to indicate which direction the piston should be installed. “FRONT” with an arrow shape, or just an arrow shape, means that the marking should be pointing to the front of the engine, when the piston is installed.
