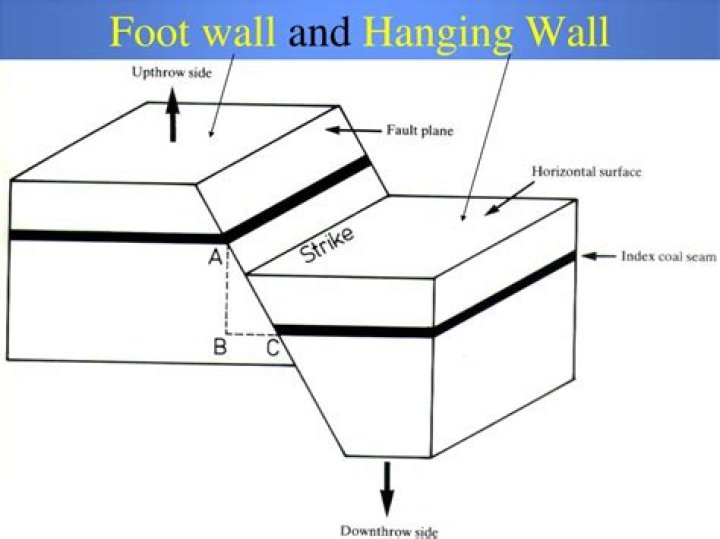

When rocks slip past each other in faulting, the upper or overlying block along the fault plane is called the hanging wall, or headwall; the block below is called the footwall. The fault strike is the direction of the line of intersection between the fault plane and Earth's surface.

Which wall is the hanging wall?

The hanging wall is the block of rock above the fault line. You can hang something from the hanging wall as if it were a ceiling. The footwall is the block of rock below the fault line. You can walk on it as if it were the floor below you.

Which side of the fault is the hanging wall?

The two sides of a non-vertical fault are known as the hanging wall and footwall. The hanging wall occurs above the fault plane and the footwall occurs below it.

What is hanging wall in mining?

Hanging-wall meaning

The mass of rock overlying a mineral deposit in a mine. ... The block of rock lying above an inclined geologic fault plane.

What's a foot wall?

1 : the lower underlying wall of a vein, ore deposit, or coal seam in a mine. 2 : the lower wall of an inclined fault.

Hanging Wall vs Foot Wall

18 related questions found

How do footwall and hanging walls form?

The hanging wall, the block of rock positioned above the plane, pushes down across the footwall, which is the block of rock below the plane. The footwall, in turn, pushes up against the hanging wall. These faults occur where the crust is being pulled apart, at a divergent plate boundary.

What is right lateral strike-slip?

If you were to stand on the fault and look along its length, this is a type of strike-slip fault where the right block moves toward you and the left block moves away. See also left-lateral.

Which of the following faults occurs where the hanging wall moves up or is trust over the footwall?

Reverse dip-slip faults result from horizontal compressional forces caused by a shortening, or contraction, of Earth's crust. The hanging wall moves up and over the footwall. Thrust faults are reverse faults that dip less than 45°.

Which type of fault is described by hanging wall slipping down the footwall?

Normal dip-slip faults are produced by vertical compression as Earth's crust lengthens. The hanging wall slides down relative to the footwall.

What are the 3 fault types?

There are three main types of fault which can cause earthquakes: normal, reverse (thrust) and strike-slip.

What is a left lateral strike-slip fault?

If you were to stand on the fault and look along its length, this is a type of strike-slip fault where the left block moves toward you and the right block moves away.

Where is the foot wall found?

ore body is called the hanging wall, and rock located below the ore body is called the footwall.

What do you call the block that moved up relative to the other?

Faults allow the blocks to move relative to each other. This movement may occur rapidly, in the form of an earthquake - or may occur slowly, in the form of creep. Faults may range in length from a few millimeters to thousands of kilometers.

What is normal fault?

Normal, or Dip-slip, faults are inclined fractures where the blocks have mostly shifted vertically. If the rock mass above an inclined fault moves down, the fault is termed normal, whereas if the rock above the fault moves up, the fault is termed a Reverse fault.

How does a reverse fault occur?

A type of fault formed when the hanging wall fault block moves up along a fault surface relative to the footwall. Such movement can occur in areas where the Earth's crust is compressed.

In which type of fault is the hanging wall above the footwall Brainly?

Reverse fault is formed by compressional forces in the crust, while that of normal fault is caused by tension force. The compressional forces caused the crust to fracture and the hanging wall rises above the footwall.

Which type of faults is being described wherein the hanging wall moves upward due to compression stress?

Reverse Faults - are faults that result from horizontal compressional stresses in brittle rocks, where the hanging-wall block has moved up relative the footwall block.

What is the left lateral position?

It is the left lateral position, where patients lie on their left side, with their left leg straight out on the bed, and the right leg bent up but also lying on the bed – like the recovery position.

Is it a right or left lateral fault?

If the block opposite an observer looking across the fault moves to the right, the slip style is termed right lateral; if the block moves to the left, the motion is termed left lateral.

What is the right lateral?

Adjective. right lateral (comparative more right lateral, superlative most right lateral) (geology) Describes the relative motion of two blocks along a strike-slip fault. From a plan-view perspective, as if standing on the fault line, the right block moves towards, and the left block moves away.

Where do you find the hanging wall and the footwall?

The block below your feet is the footwall, and the one upon which you would hang your miner's lamp is the hanging wall. It is that simple. Strike-slip faults are vertical and thus do not have hanging walls or footwalls. If the hanging wall drops relative to the footwall, you have a normal fault.

What is footwall in geology?

1). Geology. a mass of rock lying beneath a fault plane.

What happens to the hanging wall and footwall In a normal fault?

In normal faults, the hanging wall drops down relative to the footwall. Normal faults are caused by tension that pulls the crust apart. This causes the hanging wall to slide down.
