Which is shear plane?
Victoria Simmons shear plane A plane that is parallel to the walls of a shear zone and contains the shear direction (the displacement vector).
How do you find the shear on a plane?
The shear plane angle is the angle of inclination of the assumed shear plane from the cutting velocity vector, as measured on orthogonal plane. It is denoted by βO. It can be expressed in terms of Chip Reduction Coefficient (ζ) and orthogonal rake angle (γO), as given below.
What is the shear angle?
The shear angle is defined as the degree of angle that changes at peak frictional force and at the commencement of the experiment.
What is shear angle in machining?
Shear angle It has been observed that during machining, particularly ductile materials, the chip sharply changes its direction of flow (relative to the tool) from the direction of the cutting velocity, VC to that along the tool rake surface after thickening by shear deformation or slip or lamellar sliding along a plane ...
How do you calculate shear stress on a plane?
The maximum shear stress is equal to one half the difference of the principal stresses. It should be noted that the equation for principal planes, 2θp, yields two angles between 0° and 360°.
Mechanics of Machining | Cutting Velocity Analysis
41 related questions foundWhy shear stress is maximum at 45?
In simple tension , the maximum resolved shear stress is 45 degrees to the tensile force . That is why a tensile test bar makes a "cup and cone" fracture face ; the cup edges are 45 degrees to the tensile force . This if for ductile materials that can deform in shear.
What is an example of a shear force?
Scissors
A pair of scissors is a classic example to demonstrate shear force. When an object, for example, a piece of paper is placed between the two metal blades of a pair of scissors, it gets divided into two parts only because of the shear force.
How do you find the shear angle of an aircraft?
In a chip formation process, the shear plane angle is the angle between the horizontal plane and the shear plane. It is calculated by this equation: Tan angle is equal to chip ratio cosine rake angle divided by 1 minus chip ratio sine rake angle.

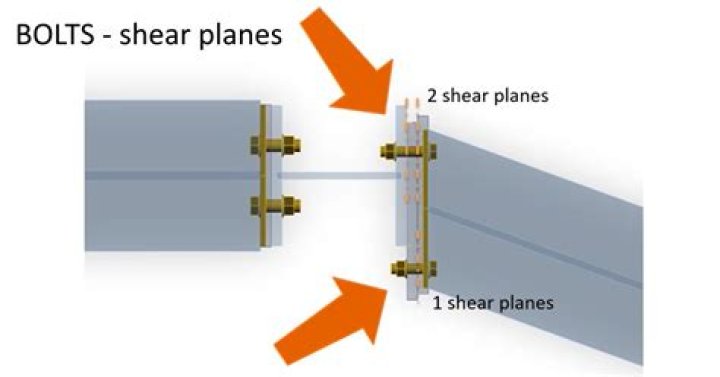

What is shear plane in bolted connection?
The maximum shear in the bolt occurs at the contact surface of the connected plates. The strength capacity of the bolt, then, is the shear strength of the bolt where the shear is at its maximum. ... The location of maximum shear in the bolt is commonly referred to as a SHEAR PLANE.
What is shear zone in metal cutting?
The shear zone is assumed by these authors to have a shape approximating a fan with centre near the tool cutting edge. ... plastic flow of metal near the tool cutting edge is not affected by the frictional stresses associated with sliding of the chip along the rake face of the tool.
What are the types of shearing?
The most commonly sheared materials are in the form of sheet metal or plates, however rods can also be sheared. Shearing-type operations include: blanking, piercing, roll slitting, and trimming.
What is orthogonal cutting?
Orthogonal Cutting Is a Type of Cuttings in Which the Cutting Tool Is Perpendicular to the Direction of Motion. the Chip Flow in This Cutting Is State-Of-The-Art. This Type of Cutting Has a Lower Life Cutting Capacity in the Tool.
What is shear angle in orthogonal cutting?
2. In orthogonal cutting, shear angle is the angle between. (a) shear plane and the cutting velocity. (b) shear plane and the rake plane. (c) shear plane and the vertical direction.
What are principal planes?
The principal planes are two hypothetical planes in a lens system at which all the refraction can be considered to happen. For a given set of lenses and separations, the principal planes are fixed and do not depend upon the object position. ... The principal planes for a thick lens are illustrated.
How is shear strain calculated?
shear strain=ΔxL0. shear strain = Δ x L 0 . shear stress=F∥A. ... The shear modulus is the proportionality constant in (Figure) and is defined by the ratio of stress to strain.
What is eccentric shear?
Explanation: When the lever arm is to be extended to accommodate more number of bolts, bracket connection is used. The bracket type connection are more rigid than any other type of connection. ... Both the moment and the force result in shear effects in the bolts of the group and is called as eccentric shear.
What is a bolt shank?
The shank is the threadless part of the bolt between the head and thread. There are two main ways of using the shank of the bolt. One is to make the shank increase the shearing capacity. ... When bolts are being used as tension bolts, they should be more elastic than the joint members.
What does the word shear?
verb (used with object), sheared, sheared or shorn, shear·ing. to cut (something). to remove by or as if by cutting or clipping with a sharp instrument: to shear wool from sheep. to cut or clip the hair, fleece, wool, etc., from: to shear sheep. to strip or deprive (usually followed by of): to shear someone of power.
What is angle of twist and angle of shear?
The angle of shear is given by angle of the deformation that comes up on the sides when deformation force or shearing stress is exerted on an object. The angle of twist is given as the angle along with which an element of a rotating machine rotates or twists w.r.t its free end.
What is Lee and Shaffer relation?
Lee and Shaffer's relationship between and is derived on the assumption that: A. The material being cut behaves like an ideal plastic which does not strain harden. ... As the tip of the tool approaches the stress builds up till it reaches a value high energy to cause plastic deformation.
What is torsion example?
The drive shaft of a car connecting the engine to the rear axle is a very common example. The rotation of the shaft will cause twisting, resulting in the development of torsional stresses. Other examples could include the propeller shaft of a ship or aircraft.
What is shear force in physics?
Shear force is a force acting in a direction that's parallel to (over the top of) a surface or cross section of a body, like the pressure of air flow over an airplane wing.
What is torsional force?
A torsion force is a load that is a applied to a material through torque. ... If a torsion force is large enough, it can cause a material to undergo a twisting motion during elastic and plastic deformation. Torsion force is commonly measured in foot-pounds or Newton-meters.
What are the 3 principal stresses?
The three principal stresses are conventionally labelled σ1, σ2 and σ3. σ1 is the maximum (most tensile) principal stress, σ3 is the minimum (most compressive) principal stress, and σ2 is the intermediate principal stress.
