Single-pole switches have two brass terminal screws and a toggle labeled ON and OFF. ... This type of light switch controls one light fixture (or electrical outlet) from a single location. When installing, always connect two hot wires to it, not two neutrals.

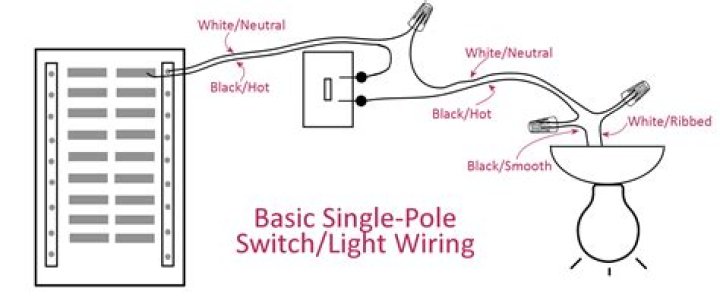

What is single pole switch wiring?

Single-pole light switch controls lights from one location. Leviton. When wiring switches, this type of cable may be used as a switch leg—where you need two black wires to go from the switch to black wires located at the light or at an intermediate electrical box.

What are single pole switches used for?

A single pole switch is used to control the light in a small closet or bathroom. It's called a single pole switch because there are two wires connected or separated by the switch mechanism. There's also a ground wire to protect against electrical faults.

How do I know if I need a single pole or double pole switch?

The pole of a switch refers to the amount of separate circuits that switch can control. Single pole switches can control just one circuit and a double pole switch can control two circuits.

What are the 4 types of switches?

The types of switches are classified into four types namely:

• SPST (Single Pole Single throw)
• SPDT (single pole double throw)
• DPST (double pole, single throw)
• DPDT (double pole double throw)

Single Pole Switch Lighting Circuits - How to wire a light switch

22 related questions found

What is a 3 pole switch?

Three pole or three-way switches are used to control lights and fixture from multiple locations, such as the top and bottom of a flight of stairs A closer look shows that a three pole switch has three terminals, while a single pole switch has two.

Can you use 3-way switch single pole?

To convert a 3-way switch to single pole, one of the traveler wires is removed from the switch. In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. ... 3-way switches can be converted to single pole in several configurations.

Can I replace a double pole switch with a single pole switch?

There are two different types of switches: the single pole and the double pole switch. ... A double pole switch can be used to control light and a fan or 2 lights on separate circuits. It is easy to wire a double pole switch to work as a single pole switch because only one side is used instead of both.

What is a single pole single throw switch?

A Single Pole Single Throw (SPST) switch is a switch that only has a single input and can connect only to one output. This means it only has one input terminal and only one output terminal. A Single Pole Single Throw switch serves in circuits as on-off switches. When the switch is closed, the circuit is on.

How do I know if my switch is single pole?

Single-pole switches have two brass terminal screws and a toggle labeled ON and OFF. Most also have a grounding screw that connects to the circuit's ground wire. This type of light switch controls one light fixture (or electrical outlet) from a single location.

How do you know if a switch is single pole or 3-way?

When viewed from the front, a standard single-pole toggle switch has "on/off" markings next to (or above and below) the toggle. A 3-way switch has no "on" or "off" markings because the toggle can turn the light on or off in either position, and this depends on the position of the other switch's toggle.

What are the different type of switches?

Types of Electrical Switches and Their Importance

• ONE-WAY (SINGLE-POLE) ELECTRICAL SWITCH. A one-way or single-pole electrical switch is the most common one in use. ...
• TWO-WAY (DOUBLE-POLE) ELECTRICAL SWITCH. ...
• DO NOT DISTURB SWITCH. ...
• LIGHT DIMMER / STEPLESS REGULATOR. ...
• BELL PUSH SWITCH.

Does it matter which wire goes where on a single pole switch?

In the case of a single-pole switch, these wires are interchangeable—it doesn't make any difference which wire is attached to which screw terminal. ... Usually, it's a simple matter of pigtailing the switch's grounding screw to the circuit grounding wires.

What does single pole and double pole mean?

A single-pole switch controls just one circuit. A double-pole switch controls two separate circuits. ... When the switch is opened, the terminals are not connected, so current does not flow. A double-throw switch connects an input terminal to one of two output terminals. Thus, a double-pole switch has three terminals.

What is a single pole double throw switch used for?

A Single Pole Double Throw switch can serve a variety of functions in a circuit. It can serve as an on-off switch, depending on how the circuit is wired. Or it can serve to connect circuits to any 2 various paths that a circuit may need to function in.

What is a double pole single throw light switch?

A double pole single throw switch controls two circuits (poles) and has 2 states an “on” (closed) state and an “off” (open) state. A double pole single throw has four terminals in total, two inputs and two outputs which are all controlled by the same switch.

Do both switches need to be 3-way?

No, you can use each switch for a different 3-way circuit. ... No, it isn't necessary to replace both switches as long as the position you're installing it in has access to the neutral.

What is a pole on a switch?

“Pole” indicates the number of circuits that one switch can control for one operation of the switch. ... If one switch can control one circuit for one operation, it is a single-pole switch. If it can control two or three circuits for one operation, it is a double-pole or a triple-pole switch.

What is a single pole socket?

Single pole means only the PHASE is switched. Double pole means both PHASE and NEUTRAL are switched together; giving complete isolation to the appliance. Single pole sockets tend to be the "trade range" which only just about manage to scrape the BS 1363.

What does single pole mean?

A single pole switch has one input and one output, it has two states; “on” or “off”. They can be wired either normally open or normally closed and can be either latching or momentary. There are two types of single pole switch, these are “single-pole, single throw” and “single pole double throw”.

What is a 4 pole switch?

4-Way Switches

Four-way switches are used to control lighting from three or more locations. ... There are four terminals that provide two sets of toggle positions on a four-way switch. Each set of terminals is one of the toggle positions. When the switch is in the up position, the current can flow through two terminals.
