Alternators are electrical generators; what gives an engine its spark, the headlights their light, and the heater its power while the vehicles moving down the road. The alternator has three main components and a voltage regulator: The Stator, Rotor, and Diode.

Does the engine drive the alternator?

The alternator runs at various RPM (which varies the frequency) since it is driven by the engine. This is not a problem because the alternating current is rectified to direct current. Alternator regulators are also simpler than those for generators.

What are the four main components of the alternator?

Main Components of an Alternator

• Rotor and Stator. The rotor and stator of an alternator are a belt-driven group of magnets inside copper wiring that creates a magnetic field. ...
• Diode Assembly. ...
• Voltage Regulator.

What are the two main components of the alternator?

The rotor and stator are the electricity-producing components of an alternator. [3][4][5] The rotor, a cylindrical piece surrounded in magnets, spins inside of the stator, which holds a fixed set of conductive copper wiring. The movement of the magnets over the wiring is what ultimately creates electricity.

What are all the parts of an alternator?

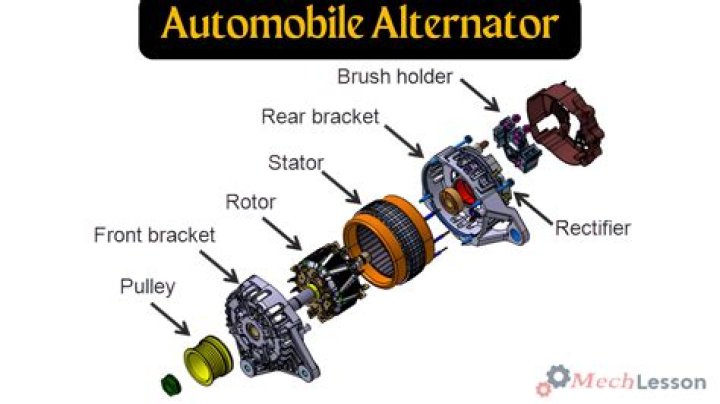

Major Components of an Alternator

• Regulator: The voltage regulator is a part that controls the amount of power supply from the alternator to the battery. ...
• Rectifier: ...
• Rotor: ...
• Slip Rings: ...
• Slip Ring End Bearing: ...
• Stator: ...
• Drive End Bearing: ...
• Pulley:

How Alternators Work - Automotive Electricity Generator

40 related questions found

What is alternator made of?

A basic alternator is made up of a series of alternating finger pole pieces placed around coil wires called field windings that wrap around an iron core on the rotor shaft. Since we know the pulley attaches to the shaft, we can now visualize how the rotor spins inside the stator.

What are alternator diodes?

The diodes are part of the rectifier assembly that converts the alternator's AC output to DC. The alternator's charging output flows through six diodes in the rectifier assembly before it goes to the battery and electrical system. Consequently, the higher the charging load, the hotter they get.

What is main alternator?

An alternator is an electrical generator that converts mechanical energy to electrical energy in the form of alternating current. For reasons of cost and simplicity, most alternators use a rotating magnetic field with a stationary armature.

What does an alternator do in a car engine?

“An alternator, as an integral part of every combustion engine vehicle, its main responsibility is to convert chemical energy to electrical energy so that you can charge and replenish the battery in your engine and other electrical components in a car.”

What is alternator and types of alternator?

The five different types of alternators include: Automotive alternators – used in modern automobiles. ... Marine alternators – used in marine applications. Brushless alternators – used in electrical power generation plants as the main source of power. Radio alternators – used for low band radio frequency transmission.

What are the four main components of the alternator quizlet?

Rotor, stator, diode pack, voltage regulator. If the voltage regulator cannot regulate the amount of electricity that is being sent to the battery, how can this be fixed? The alternator needs to be replaced.

What are the types of alternator?

Types of Alternator

• Car alternators.
• Diesel-electric alternators.
• Marine alternators.
• Brushless alternators.
• alternators for radio transmission with low band radiofrequency.

Which components in alternator produces a magnetic field?

Which component in alternator produces a magnetic field? Explanation: Rotor in an alternator produces a magnetic field. An alternator is a device that converts mechanical energy to electrical energy and produces the AC current. The rotor is the moving part of the alternator.

What holds the alternator in place?

And what keeps the alternator stable and steady is the bracket. The alternator bracket keeps it safe from harm while the vehicle is running, especially when it encounters bumps and potholes on the road.

What connects to the alternator?

Remote voltage sense alternators: The three wires connected to the alternator are the positive, negative cables and a third smaller gauge wire connected to the alternator remote sense or (S) terminal. To determine if your vehicle has remote sense, voltage will always be present on this terminal at all times.

What controls the output of an alternator?

Current measurement. The current flowing through the rotating solenoid (rotor) is the decisive factor for regulating the output generated by the alternator. ... It is controlled by the alternator regulator based on the battery voltage, which has been measured in advance.

Where does an alternator go in an engine?

The alternator is usually bolted to the front of the engine and is driven by the crankshaft aided by the serpentine belt.

Where is the alternator located and what is it driven by?

An alternator gets its name from the term alternating current (AC). Alternators are typically found near the front of the engine and are driven by the crankshaft, which converts the pistons' up-and-down movement into circular movement. (To learn more about the basic parts of car engines, read How Car Engines Work.)

What voltage does an alternator produce?

A good alternator should put out between **13.5-14.5 volts. Stress test the alternator - Place a load on the alternator by turning on the headlights, the radio and the air conditioning. The voltage should remain high with these circuits on.

What is an alternator rectifier?

The electrical energy passes through a device called a rectifier, which is made up of six or more diodes. The rectifier converts the alternating current energy produced by the alternator into direct current energy the automobile can use.

What is the working principle of alternator?

All the alternators work on the principle of electromagnetic induction. According to this law, for producing the electricity we need a conductor, magnetic field and mechanical energy. Every machine that rotates and reproduces Alternating Current.

What is meant by alternator?

A generator producing alternating current by the rotation of its rotor.

Where is the diode in an alternator?

Your car's alternator (used to be called a generator) will typically have up to six diodes. These are located on the alternators rectifier assembly. Electricity flows through the diodes, which convert the alternator's AC output to DC (which is what the battery runs on).

What is an open diode in an alternator?

An open diode is one in which an open circuit in a reverse-biased diode has no current flowing through it.

What does a diode trio do in an alternator?

A diode trio is used by the alternator for internal power to the rotor. Once the alternator is charging, it is self sufficient. The diode trio has three diodes to rectify the negative AC current to make the stator output useable to power the rotor.
