Brake calipers are mounted to the brake rotors, and they are a vital component in an automobile's braking system.

What is the caliper mounted on?

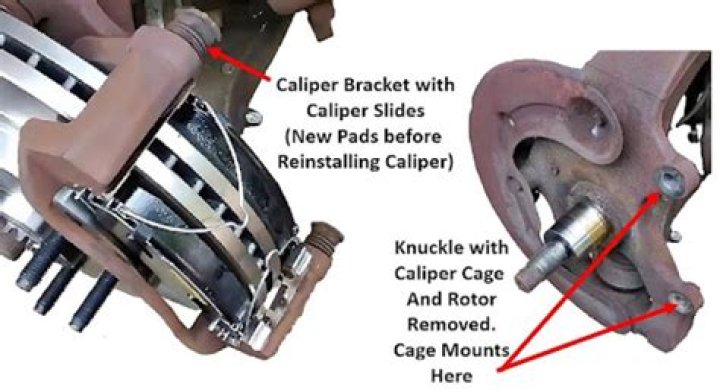

The caliper is attached to the steering knuckle via mounting bolts and the caliper sits over part of the brake disc or rotor.

Where is a fixed caliper mounted?

Fixed opposed piston calipers

A fixed caliper is mounted to a bracket with no sliding pins or bushings in its mount. The fixed caliper consists of an equal number of pistons on both the inboard and outboard halves of the caliper.

How is a brake caliper mounted?

Axial-mount calipers

With the advent of radially-mounted brake calipers, this format has gone on to be called the “normal mounting.” The caliper is mounted to “bosses” cast into a fork's bottom tube, with bolts that run parallel to the wheel axle. There isn't anything wrong with this type of mounting.

Does the location of the brake caliper matter?

Disc brake caliper position on the rotor has little effect on real-world brake efficiency—as long as the bleed screws end up at 12 o'clock. ... Theory holds a caliper that mounts "in lead" might develop better squat and result in a greater tire contact patch under hard braking.

Which disk brake caliper do you need? Flat mount or post mount caliper

38 related questions found

What is mounting in brakes?

IS mounts (also frequently called IS tabs, disc tabs, etc) are unthreaded eyelets 51mm apart that bolts run through parallel with the hub axle. In almost all cases the brake caliper is then bolted to an adapter that has one set of threads for the IS mounts and another 74mm apart for the caliper.

What are the parts of a brake caliper?

Brake Caliper Assembly

A caliper is made up of multiple parts all crucial in effective operation of the brake system. These parts include the caliper and mounting bracket, slide pins, locking bolts, dust boots, brake mounting clips, brake pads and shims, the brake piston with dust boot and seal.

Are fixed calipers better than floating?

A sliding or floating caliper has pistons on only one side of the disc. ... In a system with fixed calipers, not only is the mounting much more rigid, but the stiffness of the caliper itself is greatly increased. This manifests itself in enhanced braking performance, pedal feel, and pad wear.

Do calipers move?

A fixed caliper's operation is simple to understand. A fixed caliper does not move when the brakes are applied. There are pistons on both sides of a fixed caliper. When the brakes are applied, the pistons apply the brake pads on both sides against the rotor (See Figure 1).

Where are the brake pads located?

Find the caliper next to the rotor.

Find the long metal piece pressing up against the rotor. The large metal piece clamped to the side of the rotor is called the brake caliper. If you look inside of the caliper you should see a rubber lining. This rubber lining is your brake pads.

Which side is the brake on a car?

The pedal on the right is the gas, and the wider one on the left is the brake.

Can you put brake calipers on the wrong side?

Just turn the wrong caliper upside down while it is hanging by the brake line so the bleeder valve is now on top, put a block of 2 x 4 in the caliper to keep it from extending and bleed the brake. When finished bleeding just turn it back over and bolt it down. Just as safe as installing correct caliper.

Are calipers side specific?

A Right Hand Leading caliper (RL) will mount on the right side of the car, on the front edge of the brake rotor; a Right Hand Trailing caliper (RT) will mount on the rear edge of the brake rotor. ...

What are the most common problems with brake calipers?

What are the Symptoms of a Bad Brake Caliper?

• Pulling to one side. A seized brake caliper or caliper sliders can cause the vehicle to pull to one side or the other while braking. ...
• Fluid leaks. ...
• Spongy or soft brake pedal. ...
• Reduced braking ability. ...
• Uneven brake pad wear. ...
• Dragging sensation. ...
• Abnormal noise.

What does a sticking brake caliper sound like?

it can be a high-pitched screech, a thud or a metal-on-metal grinding noise. these sounds can mean that your caliper is stuck, that it has come loose or that it's having some other problem.

Are calipers part of the brakes?

Brake calipers are a specific component of your braking system that's crucial for the function of your brakes. Calipers are found on each wheel and work to squeeze the brake pads against the rotors in an effort to slow the spin of the wheel and get the vehicle to reduce its speed.

What are the parts of the brakes?

Main Parts of a Braking System

• Brake Pedal. The pedal is what you push with your foot to activate the brakes. ...
• Brake Master Cylinder. The master cylinder is basically a plunger that is activated by the brake pedal. ...
• Brake Lines. ...
• Rotors/Drums. ...
• Wheel Cylinders. ...
• Brake Pads.

Where are disc brakes typically located?

Disc brakes are found on most vehicles today. They are mounted on the front axle and often the rear as well. To stop a wheel (and your car), a disc brake uses a caliper fitted with brake pads to grab a spinning disc, or rotor. The caliper is an assembly mounted to the vehicle with a bracket so it frames the rotor.

Is Mount vs flat mount?

Flat-mount is a newer road-specific disc brake mount, and is more compact and lighter than post-mount. With flat-mount, the rear caliper affixed with two bolts running through a flattened frame surface and then threading directly into the caliper (or adapter affixed to the caliper).

IS brake mount size?

The two major mounting standards right now are: 51mm International Standard (or "I.S.") - A disc caliper is attached to the frame/fork with two bolts that are 51mm apart (center to center).

What is a post mount brake caliper?

Postmount brake calipers are the standard on mountain bikes. ... In most frame designs the caliper bridges between chainstays and seatstays, spreading the load over a big area, so you can design a light frame around it. For the fork, they require posts that usually stick out a bit, but nothing too dramatic.
