Biasing is the process of providing DC voltage which helps in the functioning of the circuit. A transistor is based in order to make the emitter base junction forward biased and collector base junction reverse biased, so that it maintains in active region, to work as an amplifier.

Which biasing is mostly used?

Voltage Divider Transistor Biasing

This voltage divider biasing configuration is the most widely used transistor biasing method.

What is the purpose of biasing a transistor?

Why it is necessary ? Transistor Biasing is the process of setting a transistors DC operating voltage or current conditions to the correct level so that any AC input signal can be amplified correctly by the transistor.

Why is biasing used in transistor amplifiers?

Transistor biasing makes analog and digital operation of a transistor possible. Without transistor biasing, BJT amplifiers fail to deliver the required output across load terminals. The optimum value of transistor bias voltage is equal to two times the required AC output voltage peak.

Which biasing is best and why?

Voltage divider bias is more stable because the biased voltage will not change. It is best to use voltage divider bias for accuracy.

Bias in an Artificial Neural Network explained | How bias impacts training

28 related questions found

What are the types of biasing used for a transistor?

The types of transistor biasing include:

• Fixed Base Bias or Fixed Resistance Bias.
• Collector Feedback Bias.
• Dual Feedback Bias.
• Fixed Bias with Emitter Resistor.
• Emitter Bias.
• Emitter Feedback Bias.
• Voltage Divider Bias.

What is biasing PDF?

Page 1. Transistor Biasing. Transistor Biasing is the process of setting a. transistors DC operating voltage or current conditions to the. correct level so that any AC input signal can be amplified.

Why do we use biasing?

Bias establishes the DC operating point for proper linear operation of an amplifier. If an amplifier is not biased with correct DC voltages on the input and output, it can go into saturation or cutoff when an input signal is applied. Bias establishes the DC operating point for proper linear operation of an amplifier.

What is biasing of diode?

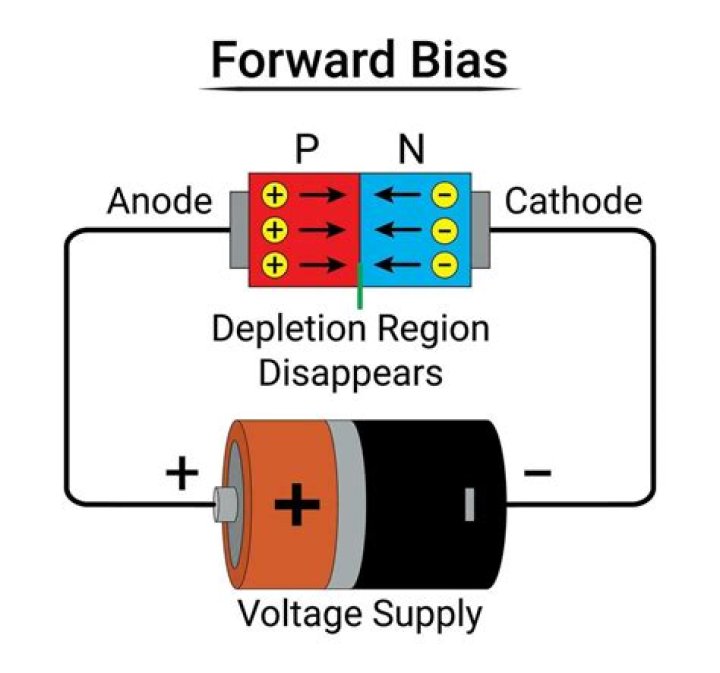

Bias. A diode (PN junction) in an electrical circuit allows current to flow more easily in one direction than another. Forward biasing means putting a voltage across a diode that allows current to flow easily, while reverse biasing means putting a voltage across a diode in the opposite direction.

What is biasing in electronic?

In electronics, biasing is the setting of initial operating conditions (current and voltage) of an active device in an amplifier. ... A bias circuit is a portion of the device's circuit which supplies this steady current or voltage.

What are the biasing techniques used in BJT?

The following are five common biasing circuits used with class-A bipolar transistor amplifiers:

• Fixed bias.
• Collector-to-base bias.
• Fixed bias with emitter resistor.
• Voltage divider bias or potential divider.
• Emitter bias.

What is biasing in semiconductor?

Advertisements. The term bias refers to the application of DC voltage to set up certain operating conditions. Or when an external source of energy is applied to a P-N junction it is called a bias voltage or simply biasing. This method either increases or decreases the barrier potential of the junction.

How biasing is done for a transistor?

Transistor biasing can be achieved either by using a single feed back resistor or by using a simple voltage divider network to provide the required biasing voltage. The following are five examples of transistor Base bias configurations from a single supply ( Vcc ).

How many types of biasing are there?

14 Types of Bias. When it comes to human behavior, there are many common types of bias we have that can influence the way we think and act in our everyday lives.

What is the most commonly used bias circuit in BJT amplifier?

The most commonly used bias in BJT amplifier circuits is. voltage divider bias.

What is amplification electronics?

Amplification means increasing the amplitude (voltage or current) of a time-varying signal by a given factor, as shown here. The graph shows the input (blue) and output voltage (red) of an ideal linear amplifier with an arbitrary signal applied as input.

What is an example of biased?

Biases are beliefs that are not founded by known facts about someone or about a particular group of individuals. For example, one common bias is that women are weak (despite many being very strong). Another is that blacks are dishonest (when most aren't).

Which diode is forward biased?

In a standard diode, forward biasing occurs when the voltage across a diode permits the natural flow of current, whereas reverse biasing denotes a voltage across the diode in the opposite direction. However, the voltage present across a diode during reverse biasing does not produce any significant flow of current.

Why reverse bias is used in photodiode?

The photodiode is reverse biased for operating in the photoconductive mode. As the photodiode is in reverse bias the width of the depletion layer increases. This reduces the junction capacitance and thereby the response time. In effect, the reverse bias causes faster response times for the photodiode.

What is bias in CNN?

Bias represents an extra neuron included with each pre-output layer and stores the value of “1,” for each action. Bias units aren't tied to any previous layer in the network, so they don't represent any form of activity, but are treated the same as any other weight.

What is bias in BTS?

A “bias” just means your favorite member of the group. ... Having a “bias” is not a BTS-specific phenomenon, as most K-pop fans use this term to talk about their favorite members of other groups.

What is biasing in simple words?

Bias is a tendency to prefer one person or thing to another, and to favour that person or thing. ... To bias someone means to influence them in favour of a particular choice.

Which method of biasing is used to operate transistor as an amplifier?

For use as an amplifier, the transistor should be inactive mode. Therefore, the emitter-base junction is forward biased and the collector-base junction is reverse biased. Also, an amplifier uses an emitter bias rather than a base bias.

What are the different types of biasing circuits?

Types of bias circuit for class-A amplifiers

• Fixed bias.
• Collector-to-base bias.
• Fixed bias with emitter resistor.
• Voltage divider bias or potential divider.
• Emitter bias.

Why the bias is used in the transistor amplifier circuit Mcq?

Explanation: A BJT is biased to operate in the active region, to work as an amplifier. It is not biased in the cut-off or saturation region to work as a switch. Also, biasing is done to maintain a stable collector current so that the operating point does not change. This also prevents thermal runaway.
