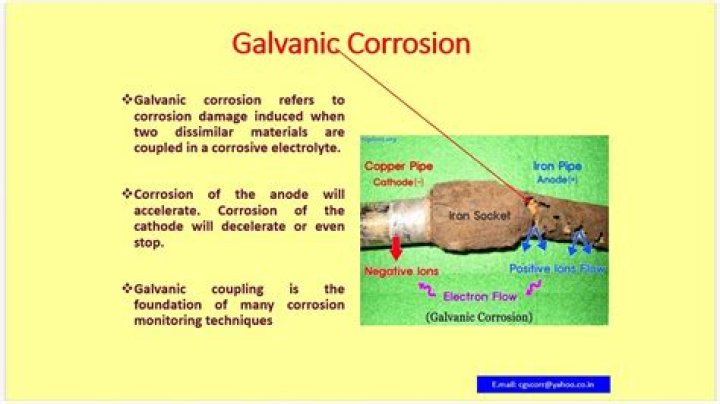

Galvanic corrosion occurs when two dissimilar metals are immersed in a conductive solution and are electrically connected. One metal (the cathode) is protected, whilst the other (the anode) is corroded. The rate of attack on the anode is accelerated, compared to the rate when the metal is uncoupled.

Where does corrosion occur in a galvanic cell?

Anode - The electrode where galvanic reaction(s) generate electrons - negative ions are discharged and positive ions are formed. Corrosion occurs at the anode. Cathode - The electrode that receives electrons - positive ions are discharged, negative ions are formed. The cathode is protected from corrosion.

Where does corrosion occur the most?

General corrosion occurs when most or all of the atoms on the same metal surface are oxidized, damaging the entire surface. Most metals are easily oxidized: they tend to lose electrons to oxygen (and other substances) in the air or in water. As oxygen is reduced (gains electrons), it forms an oxide with the metal.

What is an example of galvanic corrosion?

Examples of corrosion. A common example of galvanic corrosion occurs in galvanized iron, a sheet of iron or steel covered with a zinc coating. ... Instead, the zinc is corroded because it is less "noble"; only after it has been consumed can rusting of the base metal occur.

How is galvanic corrosion occur?

Galvanic corrosion occurs when two dissimilar metals are immersed in a conductive solution and are electrically connected. One metal (the cathode) is protected, whilst the other (the anode) is corroded. The rate of attack on the anode is accelerated, compared to the rate when the metal is uncoupled.

Galvanic Corrosion | Forms of Corrosion

15 related questions found

Does galvanic corrosion occur in air?

Galvanic corrosion (also called bimetallic corrosion) is an electrochemical process in which one metal corrodes preferentially when it is in electrical contact with another, in the presence of an electrolyte. ... Galvanic cells can form in any electrolyte, including moist air or soil, and in chemical environments.

Where does electrochemical corrosion take place?

Electrochemical corrosion occurs when two dissimilar metals are present in an electrolytic medium. Sea water is an efficient electrolyte. Different parts of the same metal made dissimilar, by treatment, or a metal and its oxide are sufficiently dissimilar to create such corrosion as shown in Fig. 14.16.

Why is galvanic corrosion a problem?

The anode metal combines with the cation in the conductive solution so it forms rust and other chemical compounds. ... The cathode metal receives electrons from the anode metal and doesn't break down. Galvanic corrosion can cause welds to fail. It's a common problem on oil platforms and in other salt-water installations.

How does corrosion take place?

General corrosion occurs when most or all of the atoms on the same metal surface are oxidized, damaging the entire surface. Most metals are easily oxidized: they tend to lose electrons to oxygen (and other substances) in the air or in water. As oxygen is reduced (gains electrons), it forms an oxide with the metal.

Can galvanic corrosion occur in freshwater?

Galvanic Series

Fittings will be damaged more quickly in saltwater than in freshwater, but it is also possible for galvanic corrosion to take place when dissimilar metals are out of the water. In general, the farther apart the two metals are on the scale, the more likely the anodic metal will be damaged.

Is galvanic corrosion the same as electrolysis?

Galvanic corrosion is caused when two dissimilar metals come into contact with each other while immersed in an electrolyte like salt water. Electrolysis is caused by the existence of potential current between two different objects. These objects can be aboard a single vessel or involve multiple vessels.

When galvanic corrosion occurs What forms the electrolyte?

Galvanic corrosion (dissimilar-metal corrosion) is an electrochemical process in which one metal corrodes preferentially, when in electrical contact with a different type of metal, and both metals are immersed in an electrolyte such as water.

Can galvanic corrosion occur without an electrolyte?

When galvanic corrosion occurs, ions flow from the less noble alloy, the anode, to the more noble alloy or cathode. In order for this flow of ions to occur, an electrolyte must be present. Galvanic corrosion cannot occur without the presence of an electrolyte and electrical contact between the metals.

What is galvanic corrosion quizlet?

What is galvanic corrosion? It is a form of corrosion that occurs at the junction of dissimilar metals when they are joined together by a suitable electrolyte, such as moist or aqueous environment, or soil containing moisture. ... All metals with the exception of most noble metals.

What is galvanic cell in chemistry?

A galvanic cell is an electrochemical cell that uses the transfer of electrons in redox reactions to supply an electric current. This cell is driven by a spontaneous chemical reaction that produces an electric current through an outside circuit. ... For this reason, galvanic cells are commonly used as batteries.

What conditions must be present in galvanic corrosion?

For galvanic corrosion to occur, three conditions must be present:

• Electrochemically dissimilar metals must be present.
• These metals must be in electrical contact, and.
• The metals must be exposed to an electrolyte.

How does exfoliation corrosion occur?

Corrosionpedia Explains Exfoliation Corrosion

This type of corrosion occurs on the extended grain boundaries. The products of corrosion force the material to move away from the body, so these products occupy a greater volume than the volume of the parent metal, thus causing the metal to exfoliate or delaminate.

Where does corrosion occur in the rusting of iron?

Where does corrosion occurs in the rusting of iron? Explanation: Corrosion occurs at anode but rust is deposited near cathode.

Which type of reaction occurs in cathodic areas?

Cathodic reactions include oxygen reduction and hydrogen evolution, neither of which consumes metal.

How does the galvanic series work?

With the galvanic series, metals are grouped according to electrical potential compared to a known standard. Metals that are far apart from each other on the list will corrode fast in seawater or electrolytes when electrically connected. Metals that are closer together will suffer less damage.

Does galvanic corrosion occur without water?

Requirements for Galvanic Corrosion: In order for galvanic corrosion to occur, three elements are required. A conductive electrolyte solution (e.g. water) must connect the two metals on a regular basis. The electrolyte solution creates a “conductive path”.

Which of these materials is the most cathodic?

Which of these materials is the most cathodic? Stainless steel.

Does galvanic corrosion require oxygen?

In the absence of dissolved oxygen or hydrogen ions to maintain the cathode process, galvanic corrosion does not occur. It is possible to combine different metals such as copper and steel in closed hot-water systems with little corrosion. ... For example, aluminum added to brass will increase its corrosion resistance.
