Isolated ground (IG) receptacles (electrical outlets) are most often found in hospitals and other medical facilities, commercial buildings, and some industrial settings. This special receptacle may have an orange face with a small green triangle or a white face with a small orange triangle.

Are isolated ground outlets required?

The National Electrical Code does not require an isolated ground receptacle in any particular place. However, an industry regulation or engineering plan might specify them. An example would be in healthcare facilities. An isolated ground receptacle should be used for medical diagnostics equipment, for example.

Under what article in the NEC are isolated ground outlets found?

Article 517 in the National Electrical Code (NEC) applies to electrical construction and installation criteria in healthcare facilities.

How are isolated grounding type receptacles required to be identified?

Isolated ground receptacles are required to be identified by an orange triangle located on the receptacle (figure 4 and photo 2). ... Where isolated (insulated) circuits are installed, there is often a desire to install a separate connection to the earth at the equipment location.

Where does an isolated ground originate?

The NEC says the insulated equipment grounding conductor for an IGR may originate at the neutral point of the power source, and it may pass through boxes and panelboards without termination, but neither configuration is required [Secs.

Isolated Ground GFCI Receptacles

27 related questions found

What is the purpose of isolated ground receptacles?

Isolated ground receptacles have special construction and wiring that help eliminate electromagnetic "noise" that can affect sensitive electronic equipment. They are very rarely installed in homes but sometimes are used in large installations to combat noise interference with audio, video, and computer equipment.

What's the purpose of an isolated ground?

The Isolated Ground (IG) is a type of equipment ground that, in theory, reduces interference experienced by electronics and instrumentation from radio frequency (RF) noise, by connecting that equipment directly to the grounding terminal of the service equipment, without ever making contact with another metal component ...

Where installed for the on the grounding circuit a receptacle in which the grounding terminal is purposely insulated from the receptacle mounting means shall be permitted?

According to UL product category RTRT, grounding-type receptacles in which the grounding terminals are purposely insulated from the mounting means of receptacles and associated metal cover plates as permitted by Section 250.146(D) of the NEC are so identified by an orange triangle marked on the face of the receptacle.

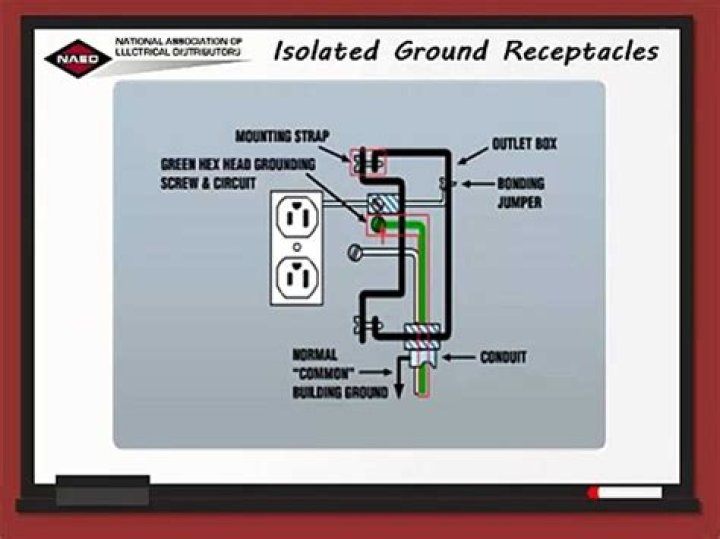

How do you wire an isolated ground receptacle?

Connect the grounding wire(s):

Isolated Ground Receptacles must be mounted in a grounded metal wallbox. Connect bare copper ground wire (if present) to the metal wallbox. Connect the GREEN wire lead of the GFCI to the insulated Isolated Ground wire in the wallbox.

What does the green dot on a receptacle mean?

The green dots indicate that the UPS outlets and plug are certified as hospital-grade and may be used within patient-care vicinities.

Where a grounding means exists in the receptacle enclosure A N _____ type receptacle shall be used?

Where a grounding means exists in the receptacle enclosure or an equipment grounding conductor is installed in accordance with 250.130(C), grounding-type receptacles shall be used and shall be connected to the equipment grounding conductor in accordance with 406.4(C) or 250.130(C). (2) Non–Grounding-Type Receptacles.

Where an isolated power system is used the patient equipment grounding point typically connected to the reference grounding bar in the <UNK>?

The equipment grounding conductor(s) installed with circuits supplied by isolated power systems are permitted to be installed inside or outside the raceway for the branch circuit and must be connected to the reference grounding bus within the isolated power system enclosure.

How effective is an isolated ground?

An isolated ground, if installed correctly, can reduce some electrical noise. However, complete power conditioning and protection usually requires additional devices such as a surge protector or an uninterruptible power supply. If the receptacle is not installed correctly, it can create a dangerous installation.

What do Orange outlets signify?

According to an information article by Scott Spyrka @spyrkaelectric.com, the orange outlets are isolated ground receptacles that can provide electricity directly from a grounding point, meaning they maintain power even if the circuit breaker is tripped or power is interrupted elsewhere.

How do you isolate an electrical outlet?

Isolate electricity to a particular electrical appliance by turning the switch on the wall socket to the "Off" position. By doing so you won't need to trip the switch or remove the fuse that connects the circuit to all the wall sockets.

Do hospital grade receptacles have an isolated ground?

For example, an isolated ground straight blade receptacle is offered in all the different grades—General Use, Hospital, Fed. ... In addition to complying with the general use requirements, hospital grade receptacles are specially designed and are subject to additional requirements of the standards.

What do blue outlets mean?

Blue outlets have an alarm indicating the loss of ground protection.

What are blue receptacles used for?

Yellow wires are usually switched legs for fans and light switches. Blue wires usually work as travelers for three-way and four-way switches. Like blue and yellow wires, these are generally used for three-way and four-way switching. They are also used to carry power to outlets in 220-volt applications.

What is a grounding terminal?

Grounding terminal blocks clamp mechanically onto the DIN Rail by tightening the center mounting screw, making a reliable electrical connection between the cage clamp terminals and the DIN Rail. The rail serves as a busbar and automatically distributes ground potential to all other ground terminals on the same rail.

What is acceptable impedance for an equipment grounding conductor?

The NEC specifies 25 ohms as an acceptable limit for electrode impedance. The IEEE Standard 142 Recommended Practice for Grounding of Industrial and Commercial Power Systems ("Green Book") suggests a resistance between the main grounding electrode and earth of 1 to 5 ohms for large commercial or industrial systems.

What type of receptacle would be used for reduction of electromagnetic interference?

Isolated ground receptacles are installed for the purpose of reducing electromagnetic interference on the grounded conductor.

How do self grounding outlets work?

Self-grounding outlets are three-prong outlets that automatically ground to the outlet metal box they are attached to via the mounting screws on the outlet assembly, or via a green pigtail wire from the outlet assembly that is screwed to the metal outlet box.

Does a dedicated circuit need its own ground?

Registered. HackMaster said: That's really depending on the situation, the specifications of the actual job. Dedicated circuits do not need dedicated neutrals but recent code changes do dictate identification of neutral too hot pairings and multi pole breakers where shared.

What is an isolated circuit?

'Isolated' refers to a circuit separated from the AC line in order to prevent electric shock. A 'non-isolated' circuit is one not shielded from the AC power source, making electrocution possible. Applications requiring isolation circuitry include TVs and A/V sets.
