Figure 1: At 100 percent saturation, the wet-bulb (WB) temperature equals the dry-bulb (DB) temperature. In order to maintain a constant WB temperature, the humidity ratio must be lowered as the DB temperature increases. Notice the WB lines run parallel with each other.

When the wet bulb and dry bulb temperatures are equal?

When the air is fully saturated it reaches the saturation line where relative humidity is 100%, and the dry bulb temperature, wet bulb temperature and dew point temperature all are same.

What does it mean when the wet and dry bulb thermometers are the same temperatures?

Evaporation is an endothermic process, which means it absorbs heat, so the wet bulb temperature is lower than the dry bulb temperature or the same. ... If the relative humidity is 100 percent, which means the air can't hold any more moisture, no evaporation occurs, and the wet bulb and dry bulb temperatures are the same.

When wet bulb and dry bulb temperature are equal the humidity is Mcq?

Solution: The wet bulb temperature at 100% relative humidity is same as dry bulb temperature.

When DBT and WBT are same then the RH will be?

When relative humidity of the air is 100%, i.e the air is saturated, the dew point temperature (DPT) equals the wet bulb temperature (WBT), which is also equal to the dry bulb temperature.

dry bulb wet bulb temperature and relative humidity

16 related questions found

What are the conditions that the DBT is equal to the WBT?

The wet-bulb depression is the difference between the dry-bulb temperature and the wet-bulb temperature. If there is 100% humidity, dry-bulb and wet-bulb temperatures are identical, making the wet-bulb depression equal to zero in such conditions.

What is DBT WBT and RH?

The thermodynamic wet-bulb temperature is a thermodynamic property of a mixture of air and water vapor. ... Knowing both the dry-bulb temperature (DBT) and wet-bulb temperature (WBT), one can determine the relative humidity (RH) from the psychrometric chart appropriate to the air pressure.

When the DBT WBT and DPT are the same value?

When the relative humidity of the air is 100%, i.e the air is saturated, the dew point temperature (DPT) equals the wet-bulb temperature (WBT), which is also equal to the dry-bulb temperature.

What is the relation between DBT and WBT if the relative humidity is 100%?

What is the relation between DBT and WBT if the relative humidity is 100%? Explanation: When the dry bulb temperature is equal to the wet-bulb temperature, then the relative humidity tends to be 100%.

What does wet-bulb temperature mean Mcq?

Explanation: Wet bulb temperature means the steady state temperature attained by a wet bulb thermometer.

Is wet bulb same as dew point?

Mike Moss: In a saturated air parcel (with relative humidity 100%) the wet bulb, dry bulb and dew point temperatures are all the same. ... The dew point will be the lowest number, and the wet bulb will fall between those two.

What does it mean when DBT and WBT are identical?

When air is passed over the wet wick, moisture contained in the wick evaporates and cooling effect is produced at the bulb. Hence WBT is always less than DBT for unsaturated air and is equal to DBT for saturated air. WBT value is affected by moisture content of air.

What is the difference between dew point and wet bulb temperature?

The key difference between dewpoint and wet bulb temperature is that dewpoint temperature is the temperature to which we should cool the air to saturate the air with water vapor whereas wet bulb temperature is the temperature that we get from a moistened thermometer bulb that is exposed to air flow.

What is the difference between wet bulb and dry bulb?

The Wet Bulb temperature is the adiabatic saturation temperature. Wet Bulb temperature can be measured by using a thermometer with the bulb wrapped in wet muslin.

Why wet bulb temperature is important?

The wet bulb temperature is crucial for the design and dimensioning of a cooling tower. A cooling tower cools water by evaporation to temperatures that are lower than the ambient temperature and that approach the wet bulb temperature.

What is the purpose of wet bulb temperature?

Wet bulb temperature essentially measures how much water vapor the atmosphere can hold at current weather conditions. A lower wet bulb temperature means the air is drier and can hold more water vapor than it can at a higher wet bulb temperature.

How is DBT and WBT measured?

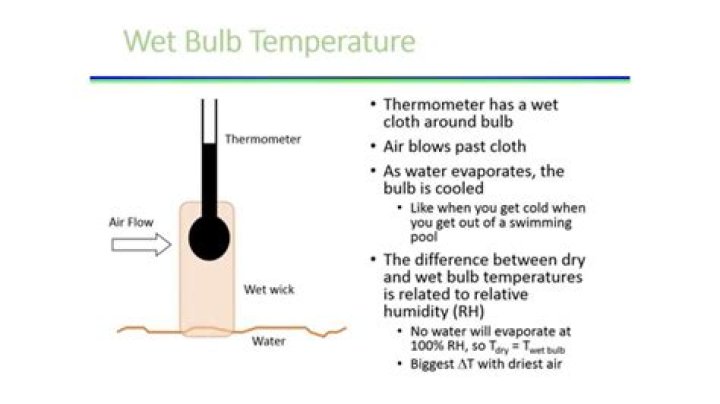

The DBT and WBT of the air are measured by a special thermometer called Sling thermometer. It comprises of two ordinary thermometers, but one of them is covered with the wet wick or cloth. The uncovered thermometer measures dry bulb temperature, while the one covered with wet cloth measures wet bulb temeprature.

What is the difference between DBT and WBT called MCQ?

14. What is the difference between DBT and WBT called? Explanation: The difference between dry bulb temperature and wet bulb temperature is called wet-bulb depression.

What determines the dew point temperature?

The dew point is the temperature the air needs to be cooled to (at constant pressure) in order to achieve a relative humidity (RH) of 100%. At this point the air cannot hold more water in the gas form. ... The higher the dew point rises, the greater the amount of moisture in the air.

What is WBT in RAC?

Wet bulb temperature (WBT or tw):

It is the temperature recorded by a thermometer whose bulb is covered with a wick or cloth saturated with water and is exposed to a current of moving air.

How is wet bulb temperature determined?

Wet Bulb temperature can be measured by using a thermometer with the bulb wrapped in wet muslin. ... The rate of evaporation from the wet bandage on the bulb, and the temperature difference between the dry bulb and wet bulb, depends on the humidity of the air.

When the air is saturated the dry bulb wet bulb and the dew point temperature are?

The wet bulb temperature is always lower than the dry bulb temperature but will be identical with 100% relative humidity (the air is at the saturation line). The Dew Point is the temperature at which water vapor starts to condense out of the air (the temperature at which air becomes completely saturated).

What is the difference between DPT and WBT?

Answer: i) WBT: Wet bulb Temperature twb : It is the temperature recorded by a thermometer when its bulb is covered by a wet cloth exposed to the air. ii) DPT: Dew point temperature tdp :It is the temperature of air recorded by thermometer, when the moisture (water vapour) present in its, begins to condensed.

What is DB and WB in HVAC?

DB = Dry-bulb; the temperature of air without taking account for evaporation/relative humidity. WB = Wet-bulb; the temperature of the air with the evaporative effect of a “wet bulb” taken into account.

How does Wet Bulb Globe temperature work?

The WetBulb Globe Temperature (WBGT) is a measure of the heat stress in direct sunlight, which takes into account: temperature, humidity, wind speed, sun angle and cloud cover (solar radiation). This differs from the heat index, which takes into consideration temperature and humidity and is calculated for shady areas.
