Things to drive FMEA review Andrews said: Everyone agrees that FMEA's has to be reviewed whenever any change happens in the process and that no timeframe can be fixed.

When should FMEA process be completed?

FMEA is used during design to prevent failures. Later it's used for control, before and during ongoing operation of the process. Ideally, FMEA begins during the earliest conceptual stages of design and continues throughout the life of the product or service.

How do you review FMEA?

Here's an overview of the 10 steps to a Process FMEA.

1. STEP 1: Review the process. ...
2. STEP 2: Brainstorm potential failure modes. ...
3. STEP 3: List potential effects of each failure. ...
4. STEP 4: Assign Severity rankings. ...
5. STEP 5: Assign Occurrence rankings. ...
6. STEP 6: Assign Detection rankings. ...
7. STEP 7: Calculate the RPN.

Why do we need to talk to our customers when doing FMEA?

Preferably, there is a visual way to see which failure modes are from field information and how they are addressed. Talk with the FMEA team to ensure that the FMEA benefited from field lessons learned and that high-risk issues from the field will not be repeated.

When should Pfmea be performed?

A PFMEA should be conducted when any of the following occur:

• Modification to an existing process.
• Introduction of new technology, equipment, or process steps to production.
• Relocation of a process to a new facility.

What is Failure Mode and Effects Analysis - FMEA? PM in Under 5

38 related questions found

What is the difference between PFMEA and DFMEA?

PFMEA stands for Process Failure Mode and Effects Analysis. Unlike DFMEA, which focuses on design, PFMEA focuses on processes. It is a qualitative tool that zooms in on current processes to see where they can be improved and helps in developing new, reliable and efficient, processes.

What is the goal of FMEA?

The goal of a FMEA is to reduce the risk of process failures and improve resident safety.

What are best practices when using FMEA worksheets?

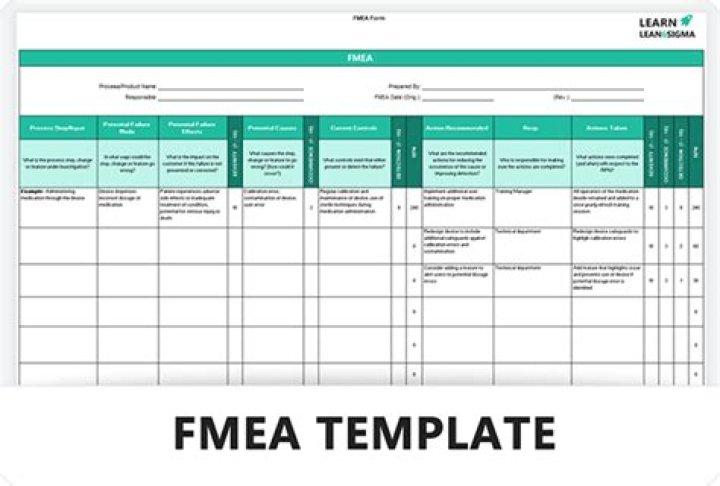

The basic steps to using the FMEA Worksheet are:

• Identify all failure modes.
• Consider the root causes.
• Assess the risk of the failure (severity, occurrences, and detection).
• Create an RPN (risk priority number) and rank the failure modes.
• Eliminate the risks.

What are the 3 attributes of a failure that FMEA scores?

All these three attributes (Severity, Priority, and Likelihood) are individually measured in scale and then multiplied to get a Risk Priority Number (RPN).

What are the 3 types of FMEA?

Types of FMEA:

Process FMEA (PFMEA) Functional FMEA (FFMEA) / System FMEA (SFMEA)

Is FMEA a quality tool?

It is the technique par excellence of quality tools. FMEA is based on the application of a procedure for classifying potential failures based on their severity, frequency and detection capacity. ...

What is key date in FMEA?

Key Date: The date when the FMEA should be completed. FMEA Date (Orig.): The date when the FMEA is first completed. FMEA Date (Rev.): The latest revision date for the FMEA. Prepared By: The person who prepared the document.

What are the 5 steps of the FMEA process?

1. Step 1: Identify potential failures and effects. The first FMEA step is to analyze functional requirements and their effects to identify all failure modes. ...
2. Step 2: Determine severity. Severity is the seriousness of failure consequences of failure. ...
3. Step 3: Gauge likelihood of occurrence. ...
4. Step 4: Failure detection.

What is the end result of an FMEA analysis?

Failure Mode and Effects Analysis (FMEA) is a structured approach to discovering potential failures that may exist within the design of a product or process. Failure modes are the ways in which a process can fail. Effects are the ways that these failures can lead to waste, defects or harmful outcomes for the customer.

Is FMEA required for ISO 9001?

One major revision to ISO 9001 is the requirement to identify, evaluate, and address risks. ... Failure mode and effects analysis (FMEA) is the perfect tool to satisfy an organization's risk analysis needs—provided that the technique is understood.

What is FMEA explain with example?

Failure Mode and Effects Analysis (FMEA) is a model used to prioritize potential defects based on their severity, expected frequency, and likelihood of detection. An FMEA can be performed on a design or a process, and is used to prompt actions to improve design or process robustness.

How is RPN calculated?

The RPN is calculated by multiplying the three scoring columns: Severity, Occurrence and Detection. ... RPN = Severity x Occurrence x Detection. For example, if the severity score is 6, the occurrence score is 4, and detection is 4, then the RPN would be 96.

How can I improve my FMEA?

Necessary adjustments may include identifying new failure modes, or updating severity, occurrence and detection data for a more accurate RPN calculation. Ideally, you would continuously refine your FMEAs to near perfection, gaining a holistic view of risk that makes it easier to predict and prevent problems.

Can we reduce severity in FMEA?

The truth is that Severity ranking cannot be changed at all. No matter what you do. If Severity of a Failure Mode has to be addressed, it can be done by either summarily eliminating the Failure Mode or by eliminating the Effect with which the Severity ranking is associated.

Is FMEA a problem solving tool?

Failure Mode Effect Analysis (FMEA) is one the most effective and accepted problem solving (PS) tools for most of the companies in the world. Since FMEA was first introduced in 1949, practitioners have implemented FMEA in various industries for their quality improvement initiatives.

How do you write DFMEA?

Here are the 10 steps to a Design FMEA.

1. STEP 1: Review the design. ...
2. STEP 2: Brainstorm potential failure modes. ...
3. STEP 3: List potential effects of each failure. ...
4. STEP 4: Assign Severity rankings. ...
5. STEP 5: Assign Occurrence rankings. ...
6. STEP 6: Assign Detection rankings. ...
7. STEP 7: Calculate the RPN. ...
8. STEP 8: Develop the action plan.

How do you facilitate a Pfmea?

10 Steps to Conduct a PFMEA

1. Step 1 | Review the process. ...
2. Step 2 | Brainstorm potential failure modes. ...
3. Step 3 | List potential effects of failure. ...
4. Step 4 | Assign Severity rankings. ...
5. Step 5 | Assign Occurrence rankings. ...
6. Step 6 | Assign Detection rankings. ...
7. Step 7 | Calculate the RPN. ...
8. Step 8 | Develop the action plan.

What is the difference between a FMEA and Fmeca?

What is the difference between FMEA and FMECA? FMEA method provides only qualitative information while FMECA provides qualitative as well as quantitative information, which gives the ability to measure as it attaches a level of criticality to failure modes. FMECA is an extension of FMEA.

What is an acceptable FMEA RPN?

It depends on the company to indicate and important is Customer no complaint during audit. From my experience, usually company will use RPN >100, 125, 150 but for FMEA 4th edition, using RPN is not recommended. To take actions, you and use Severity 9 or 10 and also Severity(5 to 8) X Occurrence(4 to 10).
