For an object at infinity, a concave mirror produces an image of its focus which is real, inverted and diminished. For all rays appear to come parallel to the principal axis. As we know, the parallel rays coming from an object passes through the focus when reflected by the mirror.

When the object is at infinity the image formed by a convex mirror is?

Image formed by a convex mirror is always virtual and erect. When an object is placed at infinity, virtual image is formed at focus and the size of the image is smaller.

What is infinity in concave mirror?

For an object at infinity, a concave mirror produces an image of its focus which is real, inverted and diminished. ... Hence images formed at focus as point size. As an image is formed due to converging rays in front of the mixture, therefore it is the real image. Hence the formed image is real, inverted and diminished.

Where will the image be formed in a concave mirror if the object is at infinity?

If the object is at the infinity, the image is formed at the focus.

When object is between infinity and pole of a convex mirror?

When the object is placed between the infinity and the pole of a convex mirror, the ray diagram will be as follows : The image formed will be behind the mirror between P and F. So the image is virtual, erect and diminished.

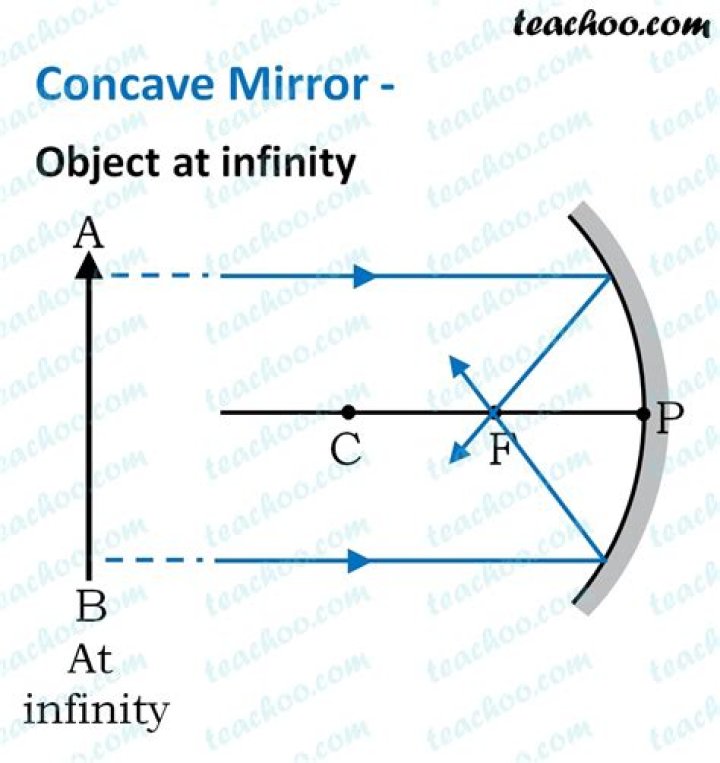

Ray diagram for Concave mirror - when object is at infinity | Tutor talk

37 related questions found

Can a convex mirror form image at infinity?

For a convex mirror, if the object is at infinity the image will be a dot on the focal point. As the object moves from infinity toward the mirror, the image moves along the principal axis toward the mirror. When the object is right next to the mirror, the image will be right next to the mirror on the other side.

What are the rules of concave and convex mirror?

Spherical mirrors whose inner side is reflecting are called concave mirrors. Spherical mirrors whose outer side is reflecting are called convex mirrors.

Which image is formed by concave mirror?

Concave mirrors can produce both real and virtual images; they can be upright (if virtual) or inverted (if real); they can be behind the mirror (if virtual) or in front of the mirror (if real); they can also be enlarged, reduced, or the same size as object.

When the object is placed at infinity in front of a convex lens then the image will be formed at the following point?

Image of an object placed at infinity will be highly diminished and point sized in case of all the four i.e. concave mirror, convex mirror, concave lens and convex lens.

When an object is at infinity meaning?

The distance between the lens and the object is very much greater than when compared to object size is known as object at infinity. Parallel rays fall on the lens. The object at infinity means distant object. The rays falling on the lens from an object at infinity are parallel to principal axis.

When the object is placed at infinity the image is formed at focus of the lens?

An infinitely large, real and inverted image is formed at infinity when object is placed at principal focus, F1 of a convex lens. Properties of Image: Image is highly enlarged, real and inverted.

When object is between infinity and Centre of curvature?

When object is placed between infinity and centre of curvature of a concave mirror the image is formed between centre of curvature (C) and focus (F). Inverted.

When an object is placed between O and F of a convex mirror?

When an object is placed between the focus (F) and optical centre (O) of convex lens, then the image is formed beyond F1 to the same side of as that of object and is erect, virtual and magnified image.

What does image at infinity mean?

In optics and photography, infinity focus is the state where a lens or other optical system forms an image of an object an infinite distance away. This corresponds to the point of focus for parallel rays. The image is formed at the focal point of the lens.

What does it mean when an image is formed at infinity?

When we say image is formed at infinity, it mean that the rays of light seems to meet at some very long distance whose distance cannot be measured.

What type of rays come from infinity?

We consider light rays from infinity parallel because they are parallel. This can be shown using some high school level trignometry. Imagine any two lines that meet at a given point. As the intersection point is pushed further away, the lines become more parallel.

When an object is placed between O and F1 in front of a convex lens the image formed is?

A virtual, erect and enlarged image is formed at the same side of lens, when an object is placed between principal focus, F1 and optical centre, O of a convex lens. Properties of Image: Image is enlarged, virtual and erect.

When object is placed at infinite distance is image formed by a convex lens is?

Answer: The answer is D virtual and erect .

In which mirror the image of an object placed at infinity will be highly diminished and point sized?

Image of an object placed at infinity will be highly diminished and point sized in case of all the four i.e. concave mirror, convex mirror, concave lens and convex lens.

When the object is between F and P?

When the object is between F and P of a concave mirror, then its image is formed behind the mirror. The image is enlarged, erect and virtual.
