From the equation, we understand that resistance is directly proportional to the length of the conductor and inversely proportional to the crossectional area of the conductor. Doubling the length doubles the resistance.

What happens to resistance when length is doubled?

So, the new resistance, after doubling the length of the wire, becomes twice of the original resistance. Hence, if the length of a wire is doubled, then its resistance becomes doubled.

What happens to resistance if length and diameter is doubled?

Hence, if diameter doubles, resistance becomes 1/4 times.

When the length of a conductor is doubled its resistance will be?

Hence, If the length of a wire is doubled, then its resistance becomes 2 times.

When the length of a wire is doubled then its resistance doubled the resistance of a wire is directly proportional to its length?

Therefore, when the length of the wire is doubled, resistance of the object is also doubled. Therefore, option (D) is the correct answer. Therefore, resistance is directly proportional to length of object and inversely proportional to cross-sectional area.

Resistance - When the length is doubled

44 related questions found

When the resistance of the conductor is doubled then the rate of flow of electric current is?

I_new = 6 mA (Current is directly proportional to voltage; a halving of the voltage will halve the current. But current is also inversely proportional to the resistance; a doubling of the resistance will halve the current.

When both length and area of cross section are doubled What is the new resistance?

Initial length of the conductor l1=l Final length of the conductor l2=2l Initial cross-sectional area A1=A Final cross-sectional area A2=2A The resistance of conductors given by R=ρ1A∝1A As both the length and area are doubled Hence, there will be no change in the resistance of the conductor and so it will remain ...

How does resistance depend on length?

The resistance of a wire is directly proportional to its length and inversely proportional to its cross-sectional area. Resistance also depends on the material of the conductor. ... The resistance of a conductor, or circuit element, generally increases with increasing temperature.

What happens to the resistance if the length is doubled and the cross-sectional area is halved?

If you double both length and cross-sectional area of a wire, you will (double / triple / quadruple) the resistance of the wire. 2. To cut the resistance of a wire in half, you may (cut the resistivity in half / double the length / quadruple the area).

When the length of a conductor increases its resistance?

when you have longer length of wire, the current has to travel more distance, more the distance higher the number of obstacles it faces through its path. Therefore resistance increases with the length.

Why does the resistance increase with length?

The moving electrons can collide with the ions in the metal. This makes it more difficult for the current to flow, and causes resistance. The resistance of a long wire is greater than the resistance of a short wire because electrons collide with more ions as they pass through.

How does resistance change with length and diameter?

The area is proportional to the square of the diameter. Therefore, the resistance is inversely proportional to the square of the diameter of the conductor. ... If ratio of resistance of the conductor of the same length and diameter ratio is 1:2 will have resistance ratio 4:1.

How does resistance change if the length of the wire increases?

When electrons start to move, they get scattered from the nuclei present in the material which is the wire made from. This process creates the resistance. Thus, when the length of the wire increases, the amount of particles scattered from the nuclei increases which also increases the resistance.

What happens to resistance when area of cross section is doubled?

What happens to resistance of a conductor if area of cross section is doubled? The resistance of a conductor is inversely proportional to its area of cross section. i.e., Resistance will be reduced to half.

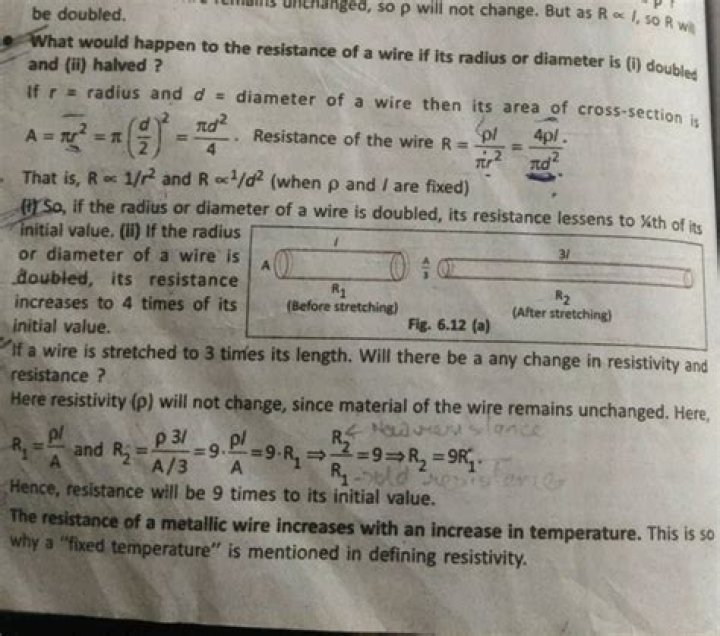

How is the resistance of a wire affected if its length is doubled and its radius is doubled?

(a) Resistance of a wire is directly proportional to the length of a wire; so if the length is doubled, resistance is also doubled. ... Thus, if radius is doubled, area increases four times and hence the resistance becomes one-fourth.

Why is length directly proportional to resistance?

As the length increases, the number of collisions by the moving free electrons with the fixed positive ions increases as more number of fixed positive ions are present in an increased length of the conductor. As a result, resistance increases.

What is the relation between resistance and the length of conductor?

The resistance of a conductor is directly proportional to its length (L) as R ∝ L. Thus doubling its length will double its resistance, while halving its length would halve its resistance. Also the resistance of a conductor is inversely proportional to its cross-sectional area (A) as R ∝ 1/A.

How does resistance of a resistor changes on changing its length and thickness?

As the diameter of the wire increases, the resistance decreases. In fact, if we double the cross-sectional area then the resistance halves. This means that resistance is inversely proportional to the area of the wire.

When the length and area of cross section both are halved then its resistance 1 point?

So we can see that new resistance becomes two times of original resistance of the wire. Hence, the correct option is (B).

What is the relationship between resistance and current?

The relationship between current, voltage and resistance is expressed by Ohm's Law. This states that the current flowing in a circuit is directly proportional to the applied voltage and inversely proportional to the resistance of the circuit, provided the temperature remains constant.

Is there any relationship between the size of the resistance and the size of the resulting voltage?

The total resistance of a series circuit is equal to the sum of individual resistances. Voltage applied to a series circuit is equal to the sum of the individual voltage drops. The voltage drop across a resistor in a series circuit is directly proportional to the size of the resistor.

How does the resistance affect the current?

The current is directly proportional to the voltage and inversely proportional to the resistance. This means that increasing the voltage will cause the current to increase, while increasing the resistance will cause the current to decrease.

How does length and area affect resistance?

Resistance is directly proportional to length. The cross section area A. Resistance is inversely proportional to cross section area.

When the length of a wire is doubled and all other factors remained the same what would the wire resistance become?

Hence, If the length of a wire is doubled, then its resistance becomes 2 times.

What is the effect of the length to the resistance of copper wire?

its length – the longer the wire, the greater its resistance. its cross-sectional area A – the greater the area, the less its resistance.
