When constructing an inscribed polygon with a compass and straightedge, how should you start the construction? Place a point on your paper and then use a compass to construct a circle.

What step is included in the construction of inscribed polygons?

Make arcs above and below the given line. Which step is included in the construction of inscribed polygons? Draw a circle from a given center with a compass.

How do you construct with a compass and straightedge?

The most-used straightedge and compass constructions include:

1. Constructing the perpendicular bisector from a segment.
2. Finding the midpoint of a segment.
3. Drawing a perpendicular line from a point to a line.
4. Bisecting an angle.
5. Mirroring a point in a line.
6. Constructing a line through a point tangent to a circle.

When constructing inscribed polygons and parallel lines How are the steps different?

When constructing inscribed polygons and parallel lines, how are the steps different? Four right angles are created. A compass is used to copy an angle.

Which step is included in the construction of parallel lines?

Which step is included in the construction of parallel lines? Copy an angle by creating arcs with a compass. When constructing inscribed polygons and parallel lines, how are the steps similar? A compass is used to draw arcs.

Constructing Inscribed Polygons

23 related questions found

When constructing inscribed polygons How can u be sure the figure inscribed is a regular polygon?

This means that all the corners, or vertices, of a regular polygon will lie on a circle. Usually the simplest method, then, to construct a regular polygon is to inscribe it in a circle. Procedure: The radius of a circle can be struck exactly six times around the circle.

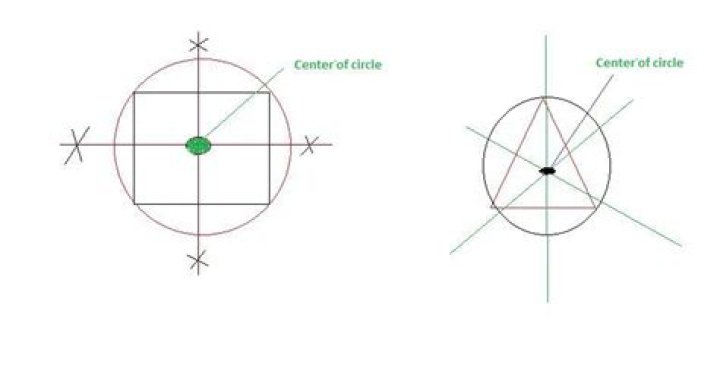

Which step is the same when constructing an inscribed square an inscribed equilateral triangle?

For the square construction, the diameter will be used, but for the equilateral triangle construction, the radius will be used. Which step is the same when constructing an inscribed regular hexagon and an inscribed equilateral triangle? Set the compass width to the radius of the circle.

When constructing an inscribed square by hand which step comes after constructing a circle?

When constructing an inscribed square by hand, which step comes after constructing a circle? Set compass to the diameter of the circle. Set compass to the radius of the circle. Use a straightedge to draw a diameter of the circle.

Why do we only use a compass and straightedge when doing geometric constructions?

The compass and straightedge is more important in constructing geometric structures than other drawing tools such as rulers and protractors. Because steps taken with a compass and straightedge cannot be seen at first glance and this situation become a problem for students.

When constructing parallel lines with a compass and straightedge how should you start construction?

When constructing inscribed polygons and parallel lines, how are the steps different? A compass is used to copy an angle. When constructing perpendicular lines with a compass and straightedge, how should you start the construction? Open the compass and mark two points of intersection between arcs from the given line.

What are the steps to constructing an angle bisector?

Investigation: Constructing an Angle Bisector

1. Draw an angle on your paper. Make sure one side is horizontal.
2. Place the pointer on the vertex. Draw an arc that intersects both sides.
3. Move the pointer to the arc intersection with the horizontal side. ...
4. Connect the arc intersections from #3 with the vertex of the angle.

What is the second step in copying an angle?

Step 1: Draw a ray and call the endpoint B. Step 2: Now go back to the angle you are copying.

When constructing an inscribed square what step comes?

Terms in this set (4)

Mark points where both ends of the diameter intersect the circle. Construct a perpendicular bisector to the diameter of the circle. Mark points where the perpendicular bisector intersects the circle. Mark points where the perpendicular bisector intersects the circle.

What is the first step to constructing an inscribed square?

1 Mark a point A on the circle. This will become one of the vertices of the square. 2 Draw a diameter line from the point A, through the center and on to cross the circle again, creating point C. 3 Set the compass on A and set the width to a little more than the distance to O.

What is the difference between constructing a regular hexagon and constructing an equilateral triangle?

What is the difference between constructing a regular hexagon and an equilateral triangle? Answer :-For the hexagon construction, every arc along the circle is connected, but for the equilateral triangle construction, every other arc along the circle is connected.

Which step is the same in the construction of parallel lines and the construction of a perpendicular line to a point off a line?

Which step is the same in the construction of parallel lines and the construction of a perpendicular line to a point off a line? Create a line that intersects the original line. When constructing a perpendicular line through a point off a line, how can you verify that the lines constructed are perpendicular?

What is the first step in constructing a regular pentagon inscribed in a circle?

Draw a circle in which to inscribe the pentagon and mark the center point O. Draw a horizontal line through the center of the circle. Mark the left intersection with the circle as point B. Construct a vertical line through the center.

What are the tools used in constructing a polygon?

Any regular polygon can be constructed with geometry software or the appropriate tools:

• Compass: A device that allows you to create a circle with a given radius. ...
• Straightedge: Anything that allows you to produce a straight line.

What are the steps for using a compass and straightedge to construct the bisector of ∠ A?

What are the steps for using a compass and straightedge to construct the bisector of ∠A? Drag the steps and drop them in order from start to finish. Place the point of the compass on point A and draw an arc that intersects the sides of ∠A. Label the points of intersection as points B and C.
