According to a Boeing publication flaps are usually fully retracted at an altitude of about 3,000 ft. As you probably know flaps increase lift and drag. So as the plane increases speed (and thereby lift potential), the need for flaps decreases.

When should flaps be retracted?

Once a positive rate of climb is established, the pilot should retract the flaps and landing gear (if equipped). It is recommended that takeoff power be maintained until reaching an altitude of at least 500 feet above the surrounding terrain or obstacles.

Why are flaps retracted after landing?

Retracting the flaps after touchdown actually reduces the likelihood of skidding the tires during heavy braking. It also improves directional control in a crosswind.

What is flap retraction?

Flap retraction is part of the takeoff and climb out procedure. Flaps are extended on the ground before takeoff to increase the lift at low speeds. Once the aircraft has achieved a stabilized climb and a safe airspeed and altitude, the flaps are retracted to achieve the optimum lift and drag configuration.

What happens when you retract flaps?

Flaps. ... Drag decreases as the flaps are retracted, allowing the airplane to accelerate to a rate that will generate lift equal to that lost by the retracting flaps. The goal is to do this without losing altitude.

How do flaps work on an aircraft?

29 related questions found

Do flaps go up or down when landing?

When you're landing, you typically extend your flaps to their maximum setting. By putting the flaps out all the way, you maximize the lift and drag that your wing produces.

Do flaps increase camber?

But how exactly do flaps work? To put it simply, flaps increase the camber (and sometimes the area) of your wing. By increasing the camber of your wing, you also increase the amount of lift your wing can produce. With flaps down, your wing can produce more lift at slower speeds, than when your flaps are retracted.

How do flaps retract?

A hinged flap which folds out from under the wing's leading edge while not forming a part of the leading edge of the wing when retracted. This increases the camber and thickness of the wing, which in turn increases lift and drag.

Do flaps reduce stall speed?

Flap increases lift and therefore the stalling speed is reduced. However, flap also changes the shape of the wing, and this results in a lower nose attitude at the stall.

Are flaps used during climb?

Flaps reduce aircraft stalling speed by increasing lift and it enables you to lift-off at a lower airspeed. Resulting in a shorter ground run. It also reduces the rate of climb (and angle) due to a somewhat higher drag. You must always use the recommended flap setting for the given circumstances.

What do you mean by retract?

1 : to draw back or in cats retract their claws. 2a : take back, withdraw retract a confession. b : disavow. intransitive verb. 1 : to draw or pull back.

What does retract mean in aviation?

To draw back or in: a plane retracting its landing gear.

What does flaps down while taxiing mean?

Good pilots put the aircraft into a well-known (up) configuration after landing, so that the aircraft is ready for use on the next flight. Flaps down during taxi was a signal to the tower that the aircraft had been hijacked.

What is minimum flap retraction height?

It's the altitude at which you will begin retracting flaps in the event of an engine failure or fire at or post V1. V1 is your "decision airspeed". V1 will vary on every takeoff based on aircraft's weight, runway length, airport elevation etc.

What does it mean to extend flaps?

1) Extending flaps increases the camber, or curvature, of your wing. When you extend the flaps on your plane, you lower your aircraft's stall speed, and at the same time, increase drag.

Why forward cg increase stall speed?

The only way to continue level flight is to increase angle of attack in order to increase lift – that means that for the same aircraft weight, a forward C.G. will cause you to fly at a higher angle of attack and thus closer to the critical angle of attack, and therefore you increase the stall speed.

What will happen if CG is too far forward?

During landing, one of the most critical phases of flight, exceeding the forward CG limit may result in excessive loads on the nosewheel, a tendency to nose over on tailwheel type airplanes, decreased performance, higher stalling speeds, and higher control forces.

Do fighter jets have flaps?

In the case of a fighter jet the wing is in general a delta wing without flaps, so in order to reduce the speed for landing they have to increase the angle of attack to augment the trail without loosing too much lift.

Why are flaps deflected downwards?

Lowering the flaps increases K and therefore also the lift, but the flaps need to be raised when the aircraft has reached its cruising altitude because they cause undesirable drag. ... Flaps are extensions of the trailing edge of the wing and can be deflected downward as much as 45°.

Why flaps should never be used at cruising airspeed?

Deploying flaps and slats in the air is a normal part of landing procedures. The only danger occurs if they are deployed while the plane is flying too fast (e.g. cruising speed) then they jam or rip off creating all kinds of problems.

When flaps are down it will?

Lowering flaps increases the wing's camber and allows the aircraft to fly at a smaller angle of attack (AOA).

Do planes have rudders?

The rudder is a primary flight control surface which controls rotation about the vertical axis of an aircraft. This movement is referred to as "yaw". The rudder is a movable surface that is mounted on the trailing edge of the vertical stabilizer or fin.

Why do flaps increase lift?

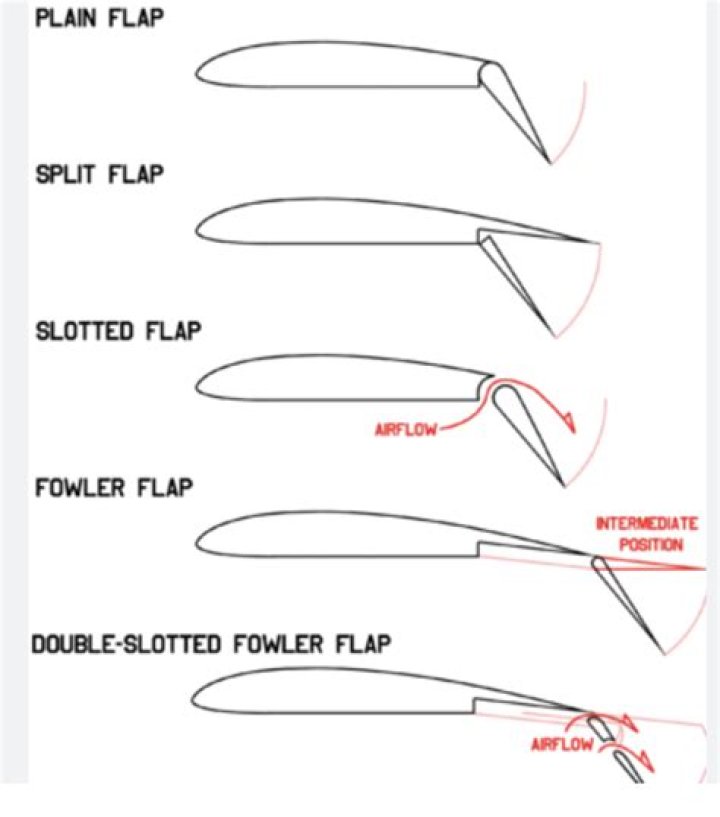

Instead of simply folding down from the wing, slotted flaps allow a small opening between the flap and the rest of the wing. This creates additional lift, because it allows the high pressure beneath the wing to rush above the wing.

Can you take off without flaps?

Yes take-off without flaps is possible. The Airbus A300 and Boeing 767 are approved for such take-offs and it is being done regularly. It results in a better climb gradient, especially with one engine out.
