A swashplate, also known as slant disk, was invented by Anthony Michell in 1917. It is a mechanical engineering device used to translate the motion of a rotating shaft into reciprocating motion, or vice versa.

What does swash plate mean?

1 : a revolving circular plate set obliquely on a shaft and acting as a cam to give a reciprocating motion to a rod in a direction parallel to the shaft.

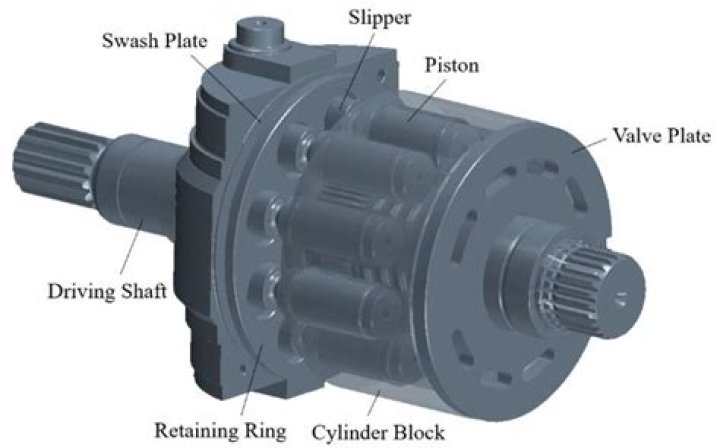

What is the purpose of swash plate in a piston pump?

Swash plate causes pistons to reciprocate. In these pumps the size and number of pistons as well as their stroke length also determine the displacement. The stroke length is controlled by the swash plate angle.

How does a swash plate compressor work?

The required amount of refrigerant gas is sucked in and compressed by changing the pressure balance within the compressor. The swash plate angle can be adjusted, which forces the piston to make larger or smaller strokes. This enables stable temperature control and improved driving feeling.

How does a swashplate work?

The rotating swashplate is mounted on the stationary swashplate by means of a bearing, and is allowed to rotate with the main rotor mast. A swashplate mechanism controls the cyclic and collective pitch of the rotor blades. The cyclic pitch of the rotor blades is used to change a helicopter's roll and pitch.

EC145 Swashplate animation

28 related questions found

What is a swash plate on a bobcat?

The swash plate is a key component in the rotator group of an axial piston motor group as it controls the motor displacement and is crucial to converting translational motion along the axis into rotational motion.

How do helicopters fly forward?

The rotor blades are pitched lower in the front of the rotor assembly than behind it. This increases the angle of attack -- and creates lift -- at the back of the helicopter. The unbalanced lift causes the helicopter to tip forward and move in that direction.

What type of compressor is a swash plate?

As the shaft rotates, the swash plate that is integrated with the shaft converts this rotational movement into reciprocating movement of the pistons, which draw and compress the refrigerant gas. The following is an outline of the swash plate type compressor, which is a representative type of reciprocating compressor.

Which type of displacement is observed in swash plate piston pumps?

Variable displacement.

Movement of the swash plate controls pump output from zero to maximum.

What controls the angle of the swash plate in a variable swash plate compressor?

The swashplate angle is controlled with linkage and springs, which are adjusted by changing the refrigerant pressure in the compressor housing. A control valve with ports and passages that connect to the suction (low-side) and discharge (high-side) chambers of the compressor head is utilized.

What happens when a swash plate is vertical?

When the swash plate is in a vertical position, perpendicular to the centerline of the piston barrel, there is no piston stroke and consequently no fluid displacement. When the swash plate is positioned at an angle, the pistons are forced in and out of the barrel and fluid displacement takes place.

In which of these pumps swash plate is replaced by cylinder block?

Replacement of swash plate by cylinder block in bent axis piston pump - Hydraulics & Pneumatics.

What changes the angle of the swash plate?

The swash plate angle can be changed by pivoting the yoke on pintles. The positioning of the yoke can be accomplished by manual operation, servo control or a compressor control and the maximum swash plate angle is usually limited to 17.5° (Figure 3.18).

What are the causes of blade coning?

Coning is an upward sweeping angle of the rotor blades as a result of lift and centrifugal force. Centrifugal force is caused by blade rotation. This force pulls the rotor blades horizontally and provides rigidity to the blades. The faster the rotation of the blades, the more centrifugal force.

How does a cyclic work?

The cyclic is used to control the main rotor in order to change the helicopter's direction of movement. In a hover, the cyclic controls the movement of the helicopter forward, back, and laterally. ... Thus, If the pilot pushes the cyclic forward, the rotor disk tilts forward, and the helicopter is drawn straight ahead.

What is a difference between vane pump and radial piston pump?

Hydraulic vane pumps are used in die casting, injection moulding machines industry plus land and road construction machinery. Piston pumps handle large flows at high hydraulic system pressures delivering optimum efficiency and reliability while maintaining a compact size with a high power density.

Why is there an odd number of piston in swash plate pump?

When a pump has an uneven number of pistons, no more than one piston is completely blocked by a pintle at one time, which reduces flow pulsations. With an even number of pistons spaced around a cylinder block, two pistons could be blocked by a pintle at the same time.

How many pistons can piston pumps have?

Piston pumps can have more than one piston and set of check valves. A duplex pump has two pistons and two sets of check valves, a triplex has three, and so on. It is important to check valves on either side of the pumping chamber to ensure fluid is flowing in the correct direction.

What are the causes of pump noise and vibration?

The noise emitted by pumps and systems is caused by vibrations in the piping and the pump casing. These vibrations interact with the surrounding air and are perceived as airborne sound. Transient flow and the pressure fluctuations associated with it produce this effect.

How much does a compressor cost for a car?

Car a/c compressor replacement costs about $994 for car a/c compressor with average prices of car a/c compressor ranging from $842 for a compressor to $1146 for car a/c compressor in the US for 2020, according to Repairpal.com.

What is wobble plate compressor?

Wobble plate compressors are well used in air conditioning for high-class automobiles. They allow continuous control by automatic adjustment of the piston stroke, to keep the low pressure above a certain limit.

What kind of AC compressor is in a car?

Your car's engine propels the A/C compressor in its main role of compressing the refrigerant used to absorb the heated air inside the cabin of your automobile. As mentioned above, the most commonly used A/C compressor is the swash plate type.

Can helicopters fly upside down?

A few modern helicopters can perform a roll and are hence flying upside down for a few moments but they cannot maintain sustained inverted flight, unlike a fixed wing aircraft. Older machines did not have the power or the rotor technology to make rolls a safe aerobatic option.

Can a helicopter fly backwards?

Unlike an airplane, a helicopter can fly backwards or sideways. It also can hover in one spot in the air without moving. This makes helicopters ideal for things an airplane cannot do.

Can a helicopter fly in a tunnel?

A helicopter pilot in Brazil appears to have successfully completed a re-enactment of the death-defying stunt from the 1996 Paramount Pictures movie Mission: Impossible in which a helicopter flies through a tunnel.
