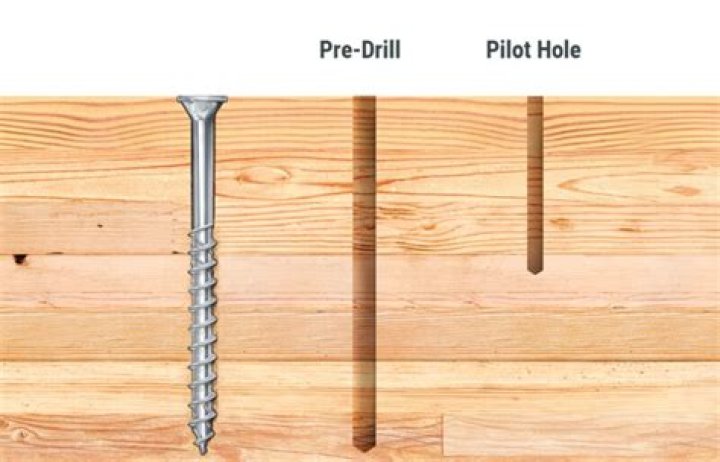

A pilot hole is a small hole drilled into a piece of construction material. Its purpose may be: to guide a larger drill to the appropriate location and ease the job of the larger drill allow for the ...

Do I need to drill a pilot hole?

Pilot holes are necessary if you're drilling into hardwood, laminate, or need a precisely located fastener. They're also recommended if the wood is likely to crack, or if appearance is important. You can skip the pilot holes when doing a rough build with softwood where appearance isn't important.

What is the purpose of the pilot hole when drilling?

Drilling a pilot hole before using a screw or nail to join parts together makes the process easier and prevents the wood from splitting.

When should you drill a pilot hole?

Three common reasons to drill a pilot hole are: When screwing though the edge or end of material. A pilot hole allows the screw threads to cut directly into the hole, which reduces the risk of splitting wood near an end or edge. When you need precise screw locations.

What makes a pilot hole?

In a pinch, you can still make a pilot hole by choosing a nail that's the same size as your screw's body, and then carefully hammering it straight into the wood to the appropriate depth before pulling it back out. Then, use a manual or powered screwdriver to complete the rest of the project.

What is PILOT HOLE? What does PILOT HOLE mean? PILOT HOLE meaning, definition & explanation

39 related questions found

Should you predrill for nails?

When nailing up moldings and other thin workpieces, boring a pilot hole first helps prevent the nails from splitting the wood, especially when nailing near the board's end. What if you don't have the right size drill bit? Simply chuck a finishing nail in the drill to bore perfect-size pilot holes.

How big a pilot hole should I drill?

As a general rule, a pilot hole should be the same diameter as the root of the screw (the center core just below the threads). This allows the bulk of a screw to enter a board without splitting the grain, yet still allow the threads to do their work of pulling two boards together to form a joint.

How do I know if I'm drilling into a stud?

What is this? Simply drill or nail into the wall at the location you found with a stud finder. If it goes in and gets stuck, you've hit the stud. If it suddenly slides into the wall and is easy to pull out, you've gone through the drywall and hit air!

Can you screw into wood without drilling?

For rough construction, you can usually just power screws into place without drilling a hole. However, for finer woodworking projects, you risk splitting the wood without first drilling holes, especially near the end of a board. When driving screws, drill a pilot hole to prevent the wood from splitting.

Do screws weaken wood?

When you drive screws into wood without drilling pilot holes, you're essentially pushing wood out of the way to make room for the screw. That displaced wood puts more pressure on the wood surrounding the screw, which can lead to splitting and cracking, weakening the wood over time.

Are all wood screws self tapping?

Wood screws are self-tapping as well, tapping their own thread into the wood, making them perfect for any woodworking job. A type 17 point, also known as an auger point, is a feature on many wood screws which eliminates the need to drill a small pilot hole before inserting your fastener.

Can you use a hammer instead of a drill?

Hammer drills don't just bore holes into masonry, though. Most allow you to turn the hammer function off, so with standard drill bits you can use them for the same tasks as cordless drill/drivers. However, care has to be taken. They still deliver a lot of power and can easily break small-diameter drill bits.

Can you hammer in a screw?

Yes, a hammer can be used to set a screw into drywall or gypsum, for example. However, the threads of the screw are likely to rip a hole large enough that the screw will just pop back out again! ... It's best to hammer in a nail that's slightly smaller than the screw first, remove the nail and then insert the screw.

How do I make sure I hit a stud?

Make a fist and knock on the wall with your knuckles. In some places, you'll hear a hollow sound. Other areas will sound more “solid.” The “solid” sound indicates you have knocked on a stud. Studs are located about 16 to 24-inches apart.

Is it bad to drill into a stud?

One rule of thumb is to be especially careful when drilling into any walls that connect to your bathroom or kitchen—basically, any wall that's likely to have pipes. ... “And unless you hit it where it passes through a stud, your drill bit will probably deflect off of the curved surface.”

Why is the drill not going through the wall?

The most common reason a drill won't penetrate a wall at all is because the drill is spinning in the wrong direction. If the drill bit enters the wall and then hits resistance, the typical cause is a metal plate or masonry obstruction.

Should pilot hole be smaller than screw?

As a general rule of thumb, your pilot hole should be slightly smaller than the diameter of your screw. ... It is best to err on the smaller side when choosing a bit; a pilot hole can always be made bigger, but not smaller.

What is the purpose of a countersink?

Countersinks are mainly used for countersinking drill holes, countersinking screws and deburring. Countersinking widens the drill hole and facilitates subsequent tapping. When countersinking screws, space is created for the screw head so that it closes with the surface of the workpiece.

What is a shank pilot hole?

A pilot hole works in conjunction with a screw-shank clearance hole. A pilot hole is a small-diameter hole bored into the bottom board. Its purpose is to provide a path for the screw to enter the board without splitting it. ... Note that pilot holes in hardwood are slightly larger than those for softwoods.

Which drill bits are for wood?

High-Speed Steel (HSS) drill bits are used for drilling wood, light metals, fiberglass and PVC. Black oxide-coated drill bits are more durable than standard HSS bits and the coating helps the drill bit resist rust. These are best for hardwood, softwood, PVC, fiberglass and steel.
