Weighbridges are mainly used for weighing large vehicles like trucks or rail containers where movement of goods is done through vehicles. ... The main function of weighbridge is to weigh the entire truck loads of goods in industries where material can be weighed only at the time of movement from one place to another.

What are weighbridge used for?

Weighbridges determine the mass of a vehicle, including prime movers and connected trailers. You can use them to weigh goods such as farm produce, agricultural products, scrap metal and landscape materials weighing over 3 tonnes.

How is a weighbridge used to weigh a loaded truck?

The controller digitizes the signal from the junction box using analog to digital converter (ADC) and weigh is registered on LED display. The weight of the payload, including the weight of the truck, is measured by first driving the truck onto the weighbridge; this weight is referred to as the gross weight.

What is the purpose of a single module pit weighbridge?

The purpose of weighbridge is to control overloading and thus protect the road pavement.

What is the definition of a weighbridge?

: a platform scale flush with the roadway (as for weighing vehicles, cattle, or coal)

What is a Weighbridge and How do you Select & Buy a Weighbridge?

44 related questions found

What is weighbridge f1?

The FIA randomly calls drivers onto the weighbridge as they return to the pits to ensure cars are running legally at all times. ... FIA procedure requires drivers to be pushed on and off the weighbridge by officials to protect the scales, which sit under each wheel, from being damaged.

What is weighbridge clerk?

Job Summary: The Weighbridge Clerk offers accurate. weight information of all materials received into the plant and all dispatches. out of the plant while ensuring compliance with the set weight tolerances, internal controls and safety requirements.

How do you use weighbridge?

For a single deck weighbridge, drive onto the deck and stop when only the front wheels are on the scale and record the weight. Then drive forward until only the rear wheels are remaining on the scale and record the weight.

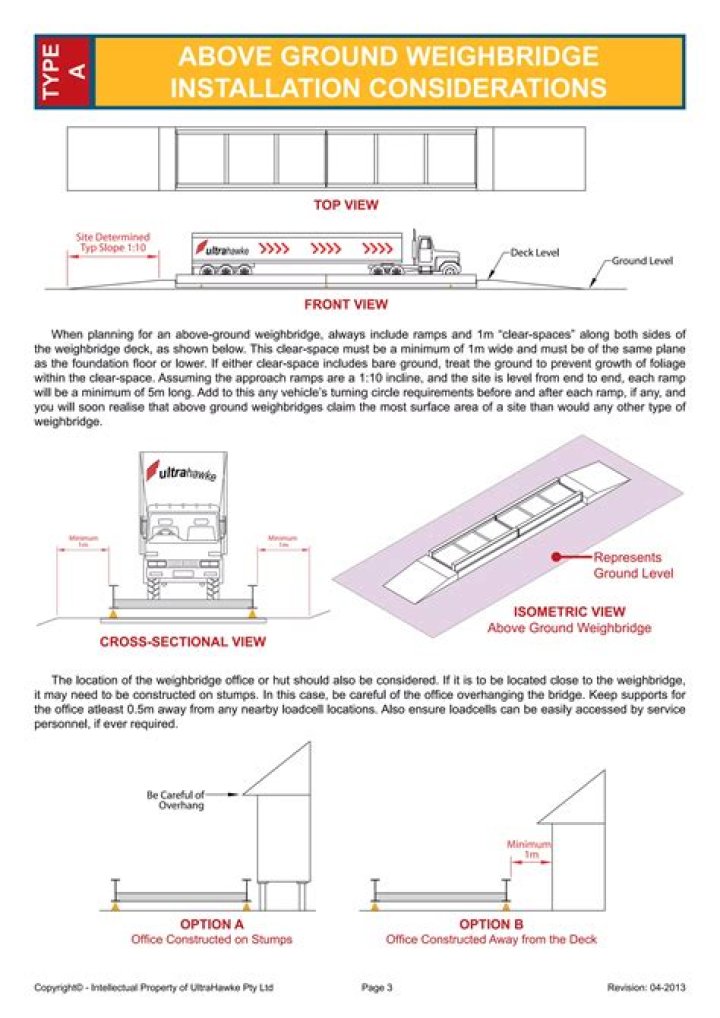

What is Pitless weighbridge?

This type of weighbridge / Truck scale is most suitable where the excavation work for foundation is difficult or construction of pit is expensive. Since the structure is above ground level, vehicles can approach the weighbridge only from two directions where the ramps are provided.

What is the construction of weighbridge?

In a method for constructing a weighbridge, the weighing platform is made of reinforced concrete and is built in a previously prepared foundation ditch which is used as a mold for the weighing platform.

What happens if a truck is overweight?

A truck company can be fined $65 per pound for overweight loads up to 10,000 pounds. After 10,000 pounds overloaded, the fine increases to $125/pound. State laws vary throughout the country. Many states only charge a few pennies per pound when the load is overweight.

Why do trucks have to get weighed?

Truck weigh stations are important because weighing trucks prevents overweight trucks from going onto highways that cannot handle the heavy load. Trucks that weigh over the regulated weight limit can cause irreparable damage to roads and bridges. Many states collect taxes on transported goods based on weight.

Which load cell used in weighbridge?

The HM9B-C3-30t Load Cell is a dual shear beam load cell with IP68 Protection. As well as being well suited to weighbridge scales it is also used for applications such as truck, track, hopper and other electronic weighing devices. It has high accuracy and is OIML approved.

Do you have to pay for weighbridge?

In the past weighbridges were generally free. However, that has changed, and you may find that some companies that use them may request a small charge for the privilege. The cost will vary from area to area and business to business. You really shouldn't pay more than a tenner, though.

What is weighbridge calibration?

Weighbridge calibration is exactly that, a calibration to ensure the weighbridge is accurately measuring the weight which is placed on it.

What would you use to measure the weight of a truck?

A truck scale (US), weighbridge (non-US) or railroad scale is a large set of scales, usually mounted permanently on a concrete foundation, that is used to weigh entire rail or road vehicles and their contents. By weighing the vehicle both empty and when loaded, the load carried by the vehicle can be calculated.

What does Pitless mean?

Filters. Without a pit or pits.

How does a public weighbridge work?

“A weighbridge works by having a large steel platform (the weighbridge deck) resting on, normally, six load cells (these are the parts that weigh the load). ... When the weighbridge is loaded with weight, the load cells send out a higher number of points which weight display converts into a weight on the screen.”

What do caravan weights mean?

•

It refers to how much pressure the caravan weight applies to the tow ball connected to your vehicle. The tow ball weight is measured when the caravan is empty aside from manufacturer specifications.

What does a weighbridge administrator do?

As a Materials Recovery Facility (MRF) weighbridge administrator you will be responsible for the day to day movements of vehicles using the plant. You will ensure the data is entered on our systems correctly. You will be the face of B&M to hauliers.

What is a Wheatstone bridge load cell?

A load cell is based on an electrical circuit called Wheatstone bridge. Being Vin the power supply of the bridge or input excitation (V=Volts) and Vout the output signal. (mV=milivolts). This arrangement allows to measure very small changes in the resistance ∆R, which occurs in the.

What do you mean by strain gauge?

A strain gauge is a type of electrical sensor. It's primary use is to measure force or strain. The resistance of a strain gauge changes when force is applied and this change will give a different electrical output. Strain gauges use this method to measure pressure, force, weight and tension.

How does load cell work?

Load cell is a sensor or a transducer that converts a load or force acting on it into an electronic signal. When a load/force/stress is applied to the sensor, it changes its resistance. ... This change in resistance leads to a change in output voltage when a input voltage is applied.

How do you bypass a weigh station?

Drivewyze is the nation's largest service that allows drivers to bypass a weigh station. The system works with fixed stations and mobile inspection sites using a smartphone or tablet. Drivers mount their device in the cab so they can easily and safely see the Drivewyze instructions.
