The standard unit of magnetomotive force is the ampere-turn (AT), represented by a steady, direct electrical current of one ampere (1 A) flowing in a single-turn loop of electrically conducting material in a vacuum . Sometimes a unit called the gilbert (G) is used to quantify magnetomotive force.

What are the units of magnetomotive force?

Electromagnetism and magnetic circuits

Magnetomotive force (mmf), F_m = NI ampere-turns (At), where N = number of conductors (or turns) and I = current in amperes. Since 'turns' has no units, the SI unit of mmf is the ampere, but to avoid any possible confusion 'ampere-turns', (A t) are used in this chapter.

What is the unit of magnetomotive?

Units. The SI unit of mmf is the ampere, the same as the unit of current (analogously the units of emf and voltage are both the volt). Informally, and frequently, this unit is stated as the ampere-turn to avoid confusion with current. This was the unit name in the MKS system.

What is the symbol for magnetomotive force?

magnetomotive force (m.m.f.) (symbol: F_m; unit: ampere; ampere-turn)

What is magnetizing force?

The force exerted by a magnet which is determined by the sum of all lines of magnetic flux present in a magnetic field.

What is Magnetomotive Force | Electromagnetism Fundamentals | Physics Concepts & Terminology

23 related questions found

What is the unit of magnetizing force produced by electric current?

The SI composite unit of magnetizing force is the ampere per meter.

How do you calculate magnetizing force?

Magnetization force (H) = 360 A/m.

What is the SI unit of magnetic flux density ?:?

The tesla (symbol T) is the derived SI unit of magnetic flux density, which represents the strength of a magnetic field. One tesla represents one weber per square meter.

What is mmf in induction motor?

In electrical motors, primarily ac windings goal is to produce rotating magneto-motive force (MMF) wave. ... The magnetic flux is analogous to the electric current. The MMF which sets up the magnetic flux is analogous to the EMF. The MMF is equivalent to a number of turns of wire carrying an electric current.

What is flux linkage unit?

Flux linkage is the linking of the magnetic field with the conductors of a coil when the magnetic field passes through the loops of the coil, expressed as a value. The flux linkage of a coil is simply an alternative term for total flux, used for convenience in engineering applications.

Is magnetomotive force a force?

Magnetomotive force, also known as magnetic potential, is the property of certain substances or phenomena that gives rise to magnetic field s. Magnetomotive force is analogous to electromotive force or voltage in electricity.

What is magnetomotive force in magnetic circuit?

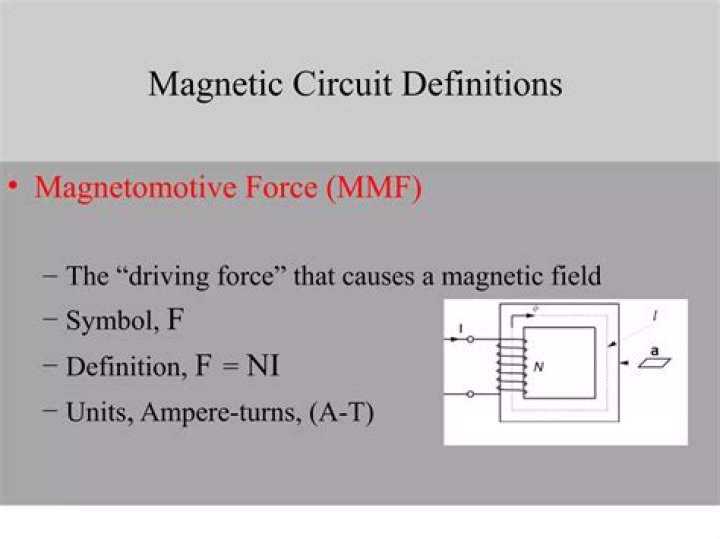

The magnetic pressure, which sets up the magnetic flux in a magnetic circuit is called Magnetomotive Force. • The SI unit of MMF is Ampere-turn (AT), and their CGS unit is G (gilbert).

What is the value of MMF?

The strength of the MMF is equivalent to the product of the current around the turns and the number of turns of the coil. As per work law, the MMF is defined as the work done in moving the unit magnetic pole (1weber) once around the magnetic circuit.

What is the MMF and flux?

Magnetic flux is defined as the product of the average mangetic field times the perpendicular area. MMF(Magnetomotiveforce): Magnetomotiveforce is defined as the product of current flowing through the wire and the numbers of windings. INDUCTION LAW: ... Magnetic field is produced by electric current.

Which of the following correctly defines the magnetomotive force?

Magnetomotive force (MMF) is a component or part of the equation of magnetic flux in magnetic circuits. As an analogy to electromotive force, MMF “drives” magnetic flux through a magnetic circuit. Magnetomotive force is also known as magnetic potential.

What is the magnetomotive force MMF of a wire with 8 turns carrying three amperes of current?

There is a wire, which has eight turns in it. The amount of current flowing through the wire is three amperes. We are required to find the magnetomotive force of the wire. Hence, the magnetomotive force is found to be \[24\,{\text{At}}\] .

How is mmf rotor calculated?

Assuming that the steel in the rotor and stator is infintely permeable, the mmf produced in the airgap between the two sides of a coil will be constant. Each coil will produce a square wave mmf function, phase shifted by 120°. The mmf functions for each phase are: FA=NiA2π[cos(θ)−13cos3(θ)+15cos5(θ)−17cos7(θ)…]

What is mmf physics?

magnetic circuits

The magnetomotive force, mmf, is analogous to the electromotive force and may be considered the factor that sets up the flux. The mmf is equivalent to a number of turns of wire carrying an electric current and has units of ampere-turns.

What is the unit of flux density?

The tesla (symbol T) is the derived SI unit of magnetic flux density, which represents the strength of a magnetic field. One tesla represents one weber per square meter.

Is telsa an SI unit?

tesla, unit of magnetic induction or magnetic flux density in the metre–kilogram–second system (SI) of physical units. One tesla equals one weber per square metre, corresponding to 10⁴ gauss. It is named for Nikola Tesla (q.v.).

What is the SI unit of magnetic field strength Class 10?

SI unit of magnetic field is tesla (T). So, one tesla is that magnetic field in which a charge of one coulomb moving with a velocity of 1 m/s perpendicular to the magnetic field experiences a force of one newton.

Is J an SI unit?

The SI unit for work and energy commonly used in drawing is the joule (J), which is equivalent to a force of one newton exerted through a distance of one meter (m).

What is a coercive force?

: the opposing magnetic intensity that must be applied to a magnetized material to remove the residual magnetism.

What is the magnetization of Earth?

The crust of the Earth has some permanent magnetization, and the Earth's core generates its own magnetic field, sustaining the main part of the field we measure at the surface. ... The core of the Earth has a temperature of several thousand degrees Celsius, and is not permanently magnetized.

What is magnetic field formula?

The equation for the magnetic field strength (magnitude) produced by a long straight current-carrying wire is: B=μ0I2πr. For a long straight wire where I is the current, r is the shortest distance to the wire, and the constant ₀=4π10⁻⁷ T⋅m/A is the permeability of free space.
