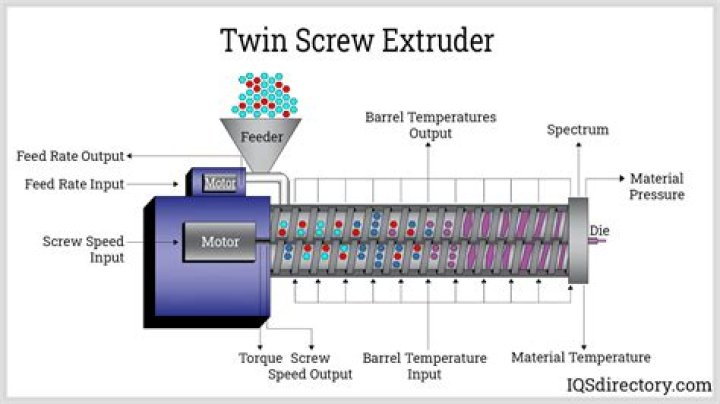

A twin screw extruder is a machine consisting of two intermeshing, co-rotating screws mounted on splined shafts in a closed barrel. The screws are tight and self-wiping, which eliminates stagnant zones over the entire length of the process section. This results in high efficiency and perfect self-cleaning.

What is twin screw extruder used for?

Twin screw extruders are principally used for specialized applications such as devolatilization, pumping thermally sensitive materials, ingredient mixing (compounding), and reaction chambers for mixing and transport of viscous materials.

What is double screw extruder?

The double screw extruders are composed of two screwed assemblies, coupled and co-rotating, mounted on fluted shafts located inside a closed barrel. ... In the processes by extrusion of double screw, the raw materials can be solid (powders, granulates, flours), liquids, suspensions, and possibly gases.

What is the difference between single screw extruder and twin screw extruder?

In single screw extruder the granular materials stay longer in the extruder slowing down production time. In a twin screw extruder the operation is complex and process control requirements are higher than that of a single screw extruder which has easy manipulation and simple control process.

What is a twin screw?

: having a right-handed screw propeller and a left-handed screw propeller parallel to each other one on each side of the plane of the keel — compare single-screw.

Twin screw extruder working principle - 3D demonstration

26 related questions found

What is single screw extruder?

A single screw extruder is a machine used to form a plastic product into the required shape. The machine heats the plastic raw material (e.g. PVC) to its melting point, after which it is pushed through a die that gives the material its shape.

How many types of extruder are there?

There are two major types of extruders; single and twin screw (co-rotating and counter rotating).

What is plastic extruder machine?

Plastics extrusion is a high-volume manufacturing process in which raw plastic is melted and formed into a continuous profile. ... This process starts by feeding plastic material (pellets, granules, flakes or powders) from a hopper into the barrel of the extruder.

What is an extruder used for?

Extruders are used to produce long continuous products such as tubing, tire treads, and wire coverings. They are also used to produce various profiles that can later be cut to length.

What is a twin screw axle?

Tandem axles are non-steer axles usually found on the rear of tractors. ... If both axles of a tandem are drive axles, they are called tandem drive axles or twin screws. A pusher axle is a front axle of a tandem, a non-drive axle. If it is a rear non-drive axle of the tandem it is called a tag axle.

Who invented twin screw extruder?

In 1940, Wilhelm Ellermann of Krupp developed what is claimed to be the first commercial intermeshing, counter-rotating twin-screw extruder, called the Knetwolf. Krupp patented it in 1941 and built units for I.G. Farben with screws up to 400 mm diam.

What is screw extruder?

A screw extruder is a type of mixer which moves the components through a cylinder using a screw which turns. ... Single screw extruders are simply comprised of a central screw that rotates within a heated cylinder. A screw extruder is a type of mixer which moves the components through a cylinder using a screw which turns.

Why is twin screw extrusion starve fed?

Twin screw extruders are normally run starve fed, so the operator is free to adjust the screw speed for a certain throughput rate, but there is a proper operating range of screw speed allowable. If the screw speed is too high, the extruder becomes unfilled of polymer and surging may result. ... Extrusion feeding.

How does a screw extruder work?

Screw extruders are divided into single screw and multiscrew extruders. ... The materials enter from the hopper into the feed throat are conveyed by the rotary motion of the screw. The mechanical shear from the screw and thermal heat from the barrel convert the solid polymer into melt which is then pushed out of the die.

What is ram extruder?

A ram extruder is an extruder where, instead of extrusion screw, a ram or plunger is used . ... Ultra high molecular weight polyethylene, becomes gelatinous as it melts so it can be extruded with this type of processes. A hydraulic ram pushes the resin materials like PTFE, UHMW, etc. from the chamber to the die.

What is an extruder machine?

Extruder machines press solid and viscous media through a die. Metal and plastic can be formed in an extrusion process. Continuous inkjet printers and laser marking machines can apply alphanumeric text and codes on a variety of extruded products including wire, cable and pipe.

What is the meaning of extruder?

Definition of 'extruder'

1. a machine that extrudes metal, plastic or clay through a die.

What are extruder screws made of?

Although the most common steels for making extruder screws are AISI 4140 and 4340 steels, the most severe applications may require application of better nitridable materials such as Nit13M, CPM9V, and H-13 to produce a higher surface hardness.

What is screw compression ratio?

The ratio of the feed zone channel depth to the meter zone channel depth, referred to as “compression ratio” , typically ranges from 1.5:1 to 4.5:1 for most thermoplastic materials. Most injection screws classified as general purpose have a compression ratio of 2.5:1 to 3.0:1.

What is extrusion and its types?

Extrusion is a manufacturing process that involves forcing base metal through a pre-shaped die to create objects with a specific shape and profile. ... There are different types of extrusion processes, however, including cold, hot, friction and micro.

What is the difference between co rotating and counter rotating twin screw extruder?

In the co-rotating extruder the maximum velocity is always at the tips of the two screws. On the other hand, in the intermeshing region of the counter-rotating extruder, since the velocity on the surface of both screws is in the same direction, the polymer has a strong tendency to move in the cross- sectional plane.

What is single screw?

: having one screw propeller a single-screw ship — compare twin-screw.

What are the function of a single screw?

Single screw extrusion is one of the main type of polymer processing operation. The principal function of a single screw extruder is to build up pressure in thepolymer melt so that the polymer can be extruded through the die.
