What is the difference between solenoid and toroid?

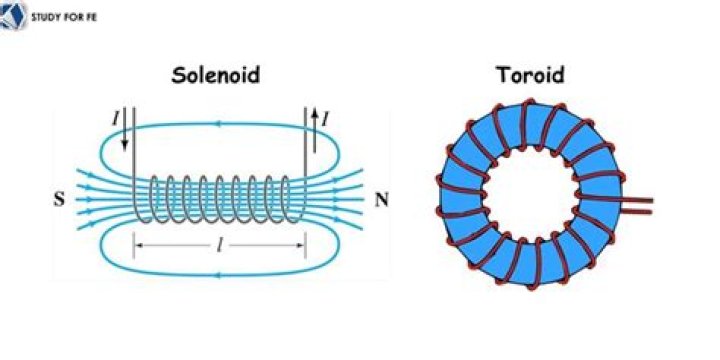

Matthew Wilson A solenoid is cylindrical in shape whereas toroid is circular. ... Magnetic field is produced outside in solenoid whereas magnetic filed outside of toroid is zero and the magnetic field is produced within.
What is toroid and solenoid?
A toroid is an endless solenoid in the form of a ring. The magnetic field inside a toroid is given as, B = (μoNI / 2πr) ……….(3) where I = current flowing through the solenoid.
What is solenoid and toroid Class 12?
Toroid is a hollow circular ring on which a large number of turns of a wire are closely wound. It can be viewed as a solenoid which has been bent into a circular shape to close on itself. ... The field B inside the toroid is constant in magnitude for the ideal toroid of closely wound turns and is given by, B = μo n I.
What is the main difference between a solenoid and an electromagnet?
5 Answers. An electromagnet is a made coil associated with a ferromagnetic core. This way, the strength of the magnet is controlled by the input current. A solenoid is a simple shape used in magnetostatics or magnetics.
What is the difference between solenoid and coil?
A coil is a normal bundel of wire wrapped circularly, whereas a solenoid is the circular coil of insulated wire which acts as a magnet when electric current flows through it.
What is the difference between solenoid and toroid?
41 related questions foundWhat is the difference between loop and solenoid?
The difference is in their lengths. Solenoid has a longer length compared to its diameter. Also, the distance between its two loops is longer.
Are solenoids AC or DC?
Solenoids are the most important components used in solenoid valves to control the flow of liquids and gases. Solenoids are electromechanical devices that convert AC or DC electrical energy into linear motion.
What is the difference between solenoid and inductor?
The difference between solenoid and inductor is that inductors are used to store magnetic energy and control the current flow, whereas the solenoid is designed in such a way to provide the magnetic field.
Is solenoid is an electro magnet?
A solenoid (/ˈsoʊlənɔɪd/,) is a type of electromagnet, the purpose of which is to generate a controlled magnetic field through a coil wound into a tightly packed helix.
Which is stronger solenoid or electromagnet?
NOTE: A solenoid still produces a magnetic field but not as strong as an electromagnet of the same size. ... In fact, the magnetic field with the iron core is more than 1,000 times stronger (yes – one thousand times).
What is solenoid class 10 BYJU's?
Answer: A solenoid is a common term for a wire coil used as an electromagnet. It also applies to any system that uses a solenoid to transform electric energy into mechanical energy. The system generates a magnetic field from electric current and produces linear motion using the magnetic field.
What is toroid formula?
Magnetic Field of Toroid
The toroid is a useful device used in everything from tape heads to tokamaks. Magnetic field = permeability x turn density x current. For a solenoid of radius r = m with N = turns, the turn density is n=N/(2πr)= turns/m.
Where is toroid used?
Toroidal inductors and transformers are used in a wide range of electronic circuits: power supplies, inverters, and amplifiers, which in turn are used in the vast majority of electrical equipment: TVs, radios, computers, and audio systems.
Why toroidal solenoid is different from solenoid?
A toroid has a similar shape when compared to a solenoid, but is bent into a ring structure. This doughnut-shaped structure is wound with copper wire.
What are toroidal solenoids used for?
You would use a toroid coil when working with electricity that has a low frequency. A toroid works as an inductor, which boosts the frequency to appropriate levels. Inductors are electronic components that are passive, so that they can store energy in the form of magnetic fields.
Who invented the solenoid?
André-Marie Amphere invented the solenoid in the late 1820s.
How many turns in a solenoid?
And we find that the number of turns in a solenoid is equal to its length times the magnetic field strength at its center divided by ? naught times the current in the solenoid ?.
What is solenoid with diagram?
The solenoid is a device with a long cylindrical coil of wire having a large number of turns fixed together very tightly. ... The condition for being a solenoid is that the length of the coil must be greater than its diameter. The magnetic field around a current carrying solenoid is represented in the diagram.
What is a solenoid and what is it used for?
A solenoid is a device comprised of a coil of wire, the housing and a moveable plunger (armature). When an electrical current is introduced, a magnetic field forms around the coil which draws the plunger in. More simply, a solenoid converts electrical energy into mechanical work.
What is the difference between inductor and capacitor?
A capacitor stores energy in an electric field; an inductor stores energy in a magnetic field. ... Another way of saying this is that capacitors “resist” changes in voltage and inductors “resist” changes in current.
Is a solenoid inductive?
Switching an inductive load. The biggest “enemy” of a common relay is an inductive load, such as a solenoid or an electromagnet. Its behavior is the most damaging, capable of completely destroying (welding or burning) the relay contacts. It behaves in the opposite way compared to a capacitive load.
Do solenoids have polarity?
The problem is that DC solenoids do have polarity. ... With a wrong polarity, the diode normally intended to help suppress voltage spikes inside the coil becomes forward biased. In other words, you get a short which can ruin the suppressor and, if power is applied for too long, ruin your entire solenoid as well.
Can we send direct current through solenoid?
Hydraulic solenoids use the pressure of hydraulic fluid in a fluid-filled cylinder. Solenoids that rely on electrical current fall into two main categories--solenoids that rely on AC (alternating current) as the source of power and solenoids that rely on DC (direct current) as the power source.
What is the operating current of a solenoid called?
Fig. 3 shows a diagram of the current flow pattern when a solenoid coil is energized. The initial current flow is called inrush current. The current that holds the armature in the energized position is called holding current.
