What is short to voltage?
Rachel Hill If a wire (conductor) or component is shorted to voltage, it is commonly called shorted. A short-to-voltage is where the power side of one circuit is electrically connected to the power side of another circuit.
What happens in a short to voltage?
In a short-circuit, the voltage across the short doesn't really drop to zero. It does drop well below the value it's intended to have. The current goes up a lot, but not to infinity.
What is a short in a circuit?
Short circuiting is when an electric current flows down the wrong or unintended path with little to no electrical resistance. It can cause serious damage, fire, and even small-scale explosions. ... If you've ever seen sparks in your electrical panel, it most likely was a short circuit causing them.
What is a short current?
The short-circuit current is the current through the solar cell when the voltage across the solar cell is zero (i.e., when the solar cell is short circuited). Therefore, the short-circuit current is the largest current which may be drawn from the solar cell. ...
Why is it called a short circuit?
A short circuit is simply a low resistance connection between the two conductors supplying electrical power to any circuit. This results in excessive current flow in the power source through the 'short,' and may even cause the power source to be destroyed.
Evaporative Systems Short to Voltage
25 related questions foundCan short circuit damage appliances?
Short circuits are a major type of electrical accident that can cause serious damage to your electrical system. They occur when a low-resistance path not suited to carry electricity receives a high-volume electrical current. ... The result of a short circuit can be appliance damage, electrical shock, or even a fire.
How do you fix a short circuit?
10 Tips for Identifying and Fixing an Electrical Short- Shorts Occur in a Circuit. Electricity flows in a circuit. ...
- Isolate the Circuit. ...
- Check the Appliances on the Affected Circuit. ...
- You Need the Proper Tools. ...
- Remove the Wires. ...
- Check the Wires. ...
- Remove the Breaker Wires. ...
- Check the Breaker.
Can low voltage cause short circuit?
LOW-VOLTAGE SHORT: A short can occur between any energized circuit and ground or common, resulting in a blown low-voltage fuse or breaker.
How do you fix low voltage problems?
If this low voltage is a consistent problem in your area, then you must contact your power supply department of your city and lodge a complaint. Complete the form you will be given at the centre and write down the problems you are facing in your area. You can call them personally to inspect the lines.
How can I tell if my house has low voltage?
How Can You Tell If Your Breaker Caused The Low Voltage?- You notice an odd burning smell around the breaker. ...
- Lights flicker or burn out unusually quickly throughout your home. ...
- The breaker keeps tripping, even when things are barely plugged in. ...
- Your breaker box is looking worse for the wear.
What can cause an electrical short?
Common Reasons for Short Circuits- Loose Connections. If wire attachments loosen and sag, two wires may encounter each other and create a short circuit. ...
- Aging & Outdated Wiring. Wires and wire insulation will experience wear and tear over time. ...
- Faulty Appliance Wiring. ...
- Damaged Insulation.
How do I know if I have an electrical short?
Contact a local IBEW/NECA electrical professional.- Keep Track of Circuit Breaker Trips. ...
- Look and Listen for Flickering, Buzzing or Dimming Lights. ...
- Look Out for Frayed or Chewed Wiring. ...
- Search for Discoloration, Scorching and Smoke. ...
- Feel for Warm or Vibrating Wall Outlets. ...
- Smell for Burning and Odd Odors.
What happens if short circuit occurs?
If a short circuit occurs—or even if too many appliances get hooked up to one wire so that too much current flows—the wire in the fuse heats up quickly and melts, breaking the circuit and preventing a fire from starting.
Is short circuit permanent?
In simple terms a short circuit is a low resistance path for an electric current to flow between two conductors supplying electrical power. Since the volume of current flow is huge this may cause the electrical power source to get damaged, sometimes permanently.
What are the negative effects of a short circuit?
Some of the effects of short circuits are overheating, fire, and explosions. These all can lead to significant damage and even injury. One of the most dangerous outcomes from a short circuit is an arc flash.
How do I find a short circuit in my house?
Test the wires for a short condition. The meter should read wide-open, infinite ohms or O.L.. If it does, the breaker is defective; replace the bad circuit breaker with an original replacement. If the wire shows a short condition, reading zero ohms or any resistance reading at all, the wire is shorted in the circuit.
How do you test for short voltage?
The best method to detect a 12-volt short circuit is to use a multimeter. Check the power source is on and the electrical device is switched to the “On” position, even if the device doesn't operate. You need electricity to flow through the wires to detect a short circuit. Turn on the multimeter.
What are three warning signs of an overloaded electrical circuit?
Signs of Overloaded Circuits- Dimming lights, especially if lights dim when you turn on appliances or more lights.
- Buzzing outlets or switches.
- Outlet or switch covers that are warm to the touch.
- Burning odors from outlets or switches.
- Scorched plugs or outlets.
How do you fix voltage drop in a house?
how to fix voltage drop? You can start by decreasing the length of any home run by running more branch circuits. stay within 100 feet of any branch circuit you decide to run. Don't bundle all your cables together.
How do you diagnose a short circuit?
The first step in finding a short circuit is to look for physical signs. This may include visible burns or melted metal on wires, burning smells, or flickering lights. Once you've identified a potential short, use your multimeter to confirm the voltage by placing it on its resistance or continuity setting.
What is normal voltage in a house?
These days, almost every residential customer can get 120 volts from their wall outlet. However, power is typically delivered into your home at a nominal voltage of 240 volts.
Why voltage is low in my house?
There can be different causes for this. Loose or corroded connections either at the house or on the powerlines can cause voltage fluctuations. ... Low voltage due to overloading on the network, loose connections, or too small a conductor wire carrying power to your house may cause dimming of your lights.
What would cause low voltage to a house?
Age and corrosion are a common cause of low voltage, as is dirty connections and poor insulation. Poor or damaged splicing work can also be a cause. In some cases, the wires used to carry electricity have a lower gauge than is necessary. ... Low voltage problems could be the result until the wires are replaced.

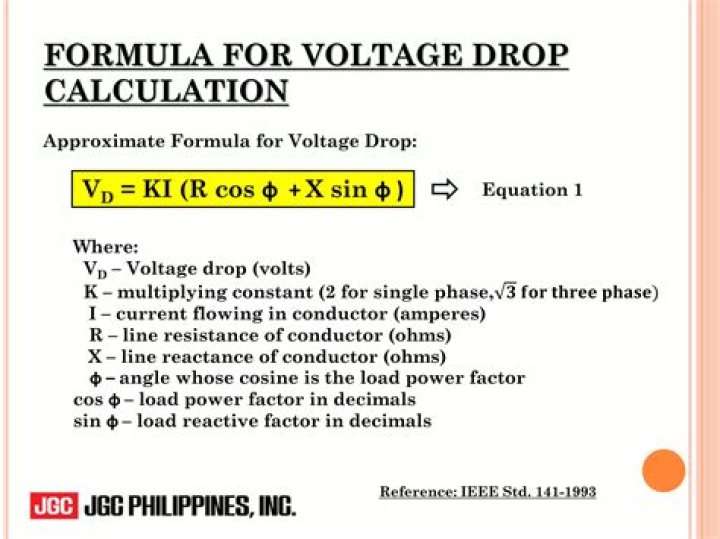

How do you increase voltage drop?
Reducing the load current on the circuit. Decreasing conductor length, and. Decreasing conductor temperature....
- Increase the Number or Size of Conductors. ...
- Decrease Load Current. ...
- Decrease Conductor Length. ...
- Adjust Conductor Temperature.
