What is ohmmeter reading?
Isabella Campbell The ohm meter is measuring the resistance by measuring the current passing through the tested device between the meter leads. This must be done in an unpowered circuit. Measuring resistance in a powered circuit will measure both the meter's applied voltage and the current in the circuit.
What does a ohmmeter measure?
ohmmeter, instrument for measuring electrical resistance, which is expressed in ohms. In the simplest ohmmeters, the resistance to be measured may be connected to the instrument in parallel or in series. ... Ratio meters measure the ratio of the voltage across the resistance to the current flowing through it.
What does 200 ohms mean?
With the test lead probes still shorted, switch to each resistance range in turn and the decimal point should move position as follows: 200 Ohm = 00.1, 2k Ohm = . 000, 20k Ohm = 0.00, 200k Ohm = 00.0, 2M Ohm = . 000, 20M Ohm = 0.00. (1k Ohm = one thousand Ohms, 1M Ohm = one million Ohms).
What is an acceptable ohm reading?
If the megger reads a resistance under 1 (1,000 ohms) on your meter after the initial 60-second interval, the cable has failed and the cable should be removed. If the megger reads a resistance between 1-1.25 on your meter, then the cable passes. Any reading above 1.25 is considered excellent.
What is a bad reading for a continuity test?
Seek a replacement fuse or wire if the reading is higher than 10 ohms. If you have a reading higher than 10 ohms, you have poor continuity. The resistance is higher than it should be and you need to replace the wire, fuse, outlet, battery, or device.
How to Measure Ohms with a Multimeter
38 related questions foundHow many ohms is a bad ground?
Ideally a ground should be of zero ohms resistance. There is not one standard ground resistance threshold that is recognized by all agencies. However, the NFPA and IEEE have recommended a ground resistance value of 5.0 ohms or less.
What is ohmmeter range?
OHMMETER RANGES. The amount of circuit resistance to be measured may vary over a wide range. In some cases it may be only a few ohms, and in others it may be as great as 1,000,000 ohms (1 megohm).
How many ohms should a good circuit have?
Anything reading between 2 megohms and 1000 megohms is usually considered a good reading, unless other problems have been noted. Anything less than 2 megohms indicates an insulation problem.
How many ohms is an open circuit?
An open circuit implies that the two terminals are points are externally disconnected, which is equivalent to a resistance R=∞ . This means that zero current can flow between the two terminals, regardless of any voltage difference.
What does a 0 reading on an ohmmeter mean?
Ohms is a measurement of resistance so "zero ohms" means no resistance. All conductors offer some resistance, so technically, there is no such thing as zero ohms.
How many types of ohmmeter are there?
The ohmmeter gives the approximate value of resistance. It is very portable and hence used in the laboratory. It is of three types; they are the series ohmmeter, shunt ohmmeter and multi-range ohmmeter.
What are the parts of the ohmmeter?
Parts of Ohmmeter- OHMMETER SCALE TEST PROBES RANGE MULTIPLIER POINTER ZERO-OHM ADJUSTMENT.
- - Most important part of the milliameter - It indicates the value that has been measured.
- - Non-linear scale where reading is based.
- - Where the actual reading is being multiplied.
- - ...
- -
How does a ohmmeter work?
The working principle of Ohmmeter is, when current flow through the circuit or component, the pointer deflects in the meter. When a pointer moves the left side of the meter, it represents a high resistance and responds to low current. The resistive measuring scale is nonlinear in an ohmmeter and the analog multimeter.
Why is an ohmmeter important?
Ohmmeter is an instrument used to measure the resistance of unknown resistor directly as it is a sensitive galvanometer connected in series to electric cell, standard resistance & rheostat, Ohmmeter is used to measure the resistance of unknown resistor, Terminals of the ohmmeter are connected to the ends of the ...
In what instrument is the ohmmeter found?
An ohmmeter is an electrical instrument that measures electrical resistance (the opposition offered by a circuit or component to the flow of electric current). Multimeters also function as ohmmeters when in resistance-measuring mode.
How many ohms is considered a short?
Very low resistance -- about 2 ohms or less -- indicates a short circuit. A meter with a continuity setting flashes or beeps only if it detects a short circuit.
How do I calculate current?
The current is the ratio of the potential difference and the resistance. It is represented as (I). The current formula is given as I = V/R. The SI unit of current is Ampere (Amp).
What is a high resistance reading?
Read the resistance value.
Resistance is a measure of how much a device or material reduces the electric current flowing through it. Higher numbers indicate a higher resistance rating, which means more energy will be required to integrate the component in a circuit.
How does an ohmmeter measure resistance?

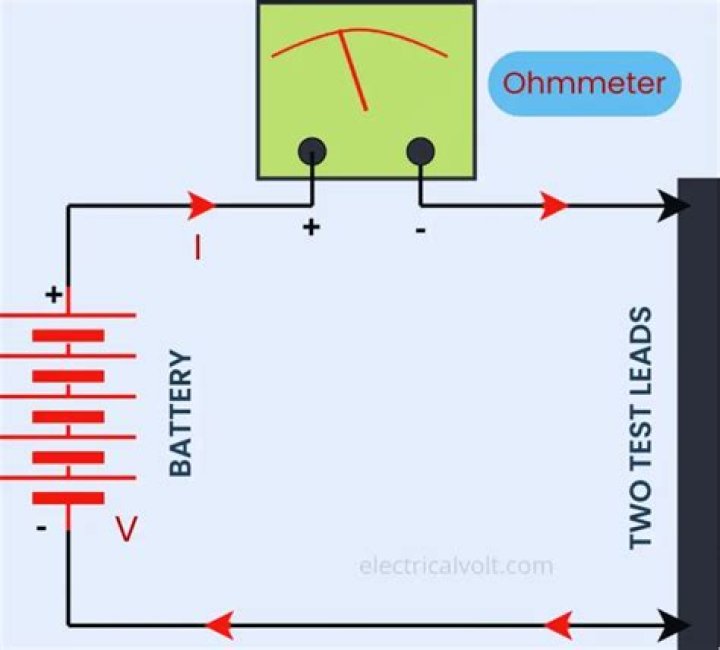

Resistance is measured with the circuit's power turned off. The ohmmeter sends its own current through the unknown resistance and then measures that current to provide a resistance value readout.
How do vom works?
A VOM is battery powered and is used with the current turned off. It's used to check continuity in a wire or component and to measure the electrical current -- from 0 to 250 volts, AC (alternating current, as in houses) or DC (direct current, as in batteries) -- flowing through the wire or component.
How do you calibrate an ohmmeter?
How to Calibrate a Digital Multimeter- Set the multimeter to the highest resistance range by turning the dial to the highest "ohm" setting.
- Touch the test probes of your digital multimeter together. ...
- Press the calibration knob until the display reads "0" on the digital multimeter if you don't see "0 ohms" initially.
How do you know if grounding is correct?
Test for Ground
The tester should light if the ground connection is good and the receptacle is connected properly. Now move the probe from the screw and place it in the round lower slot on the receptacle. The tester should also light in this position.
What is the resistance of human body?
The resistance of the human body is around 1000 ohms.
How do you test for good earth ground?
If you want to check if you have proper earthing, try plugging the wires from a lightbulb base into the ports of an outlet to see if it lights up. If you want to test more accurately, use a multimeter to take your readings instead.
