A lintel or lintol is a type of beam (a horizontal structural element) that spans openings such as portals, doors, windows and fireplaces. It can be a decorative architectural element, or a combined ornamented structural item.

What is the purpose of lintel beam?

A lintel is one type of beam which used to support the above wall when openings like doors, windows etc. are necessary to provide a building structure. The main function of the lintel is to take loads coming from above wall and transfer its load to the side walls.

What is the difference between lintel and beam?

The beam carries the load from slab and transfers it to the column from, column it is transferred to the footing and from footing finally to the soil. Whereas lintel carries the load of the wall above the openings and transfers it to walls only.

What is meant by lintels?

: a horizontal architectural member spanning and usually carrying the load above an opening.

What is lintel in house?

A lintel is one type of beam which is utilized to support the above wall or partition material when openings like doors, windows, and so forth are necessary to provide a building structure. The primary function of the lintel is to take loads originating from the high wall and transfer its heap to the side walls.

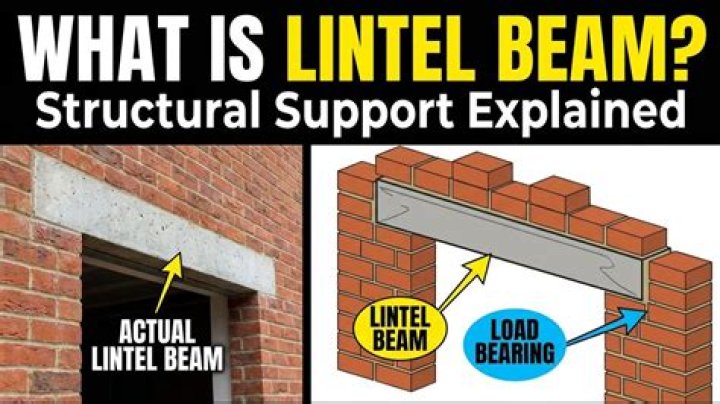

What is Lintel Beam

32 related questions found

Can we remove lintel beam?

Lintels are the only horizontal frames available in the building which has the capacity to resist any vibrations. This will be absent if we remove the lintel and replace it with a steel beam separately at the roof level.

How do you calculate lintel beams?

How To Calculate Steel Quantity Of Lintel Beam - Bar Bending...

1. Length of one bar = 1.2+ (2 x 0.150) – 0.025 =1.475m.
2. Length of 5 bars = 1.425 x 5 = 7.125m.
3. Weight of steel for 10 mm bar = D²L/162 = 10² x 7.125/162 = 4.398 kg.
4. Total length of stirrups = 0.632 x 11nos = 6.952m.

What is sill and lintel?

Sill is a horizontal bed of mortar usually as wide as the wall provided below windows or other openings. Sill supports the windows. Lintel is a structural RCC beam spanning throughout the length of the building or above the openings alone. Lintel supports the wall above the openings.

How do lintels work?

A lintel is a structural horizontal support used to span an opening in a wall or between two vertical supports. It is frequently used over windows and doors, both of which represent vulnerable points in a building's structure. Lintels are generally used for load-bearing purposes, but they can also be decorative.

How do you make a lintel beam?

Design Steps for an RCC Lintel Beam

1. Take effective depth of lintel, d = l/10; [IS:456-2000, Cl.23.2.1]
2. Overall depth D = Effective depth (d) + Effective cover.
3. Width of the lintel, B = Thickness of the masonry wall.
4. Effective Span,l = Least of ([ Clearspan + Bearing] , [Clean Span + Effective Depth])

What is lintel beam in construction?

A lintel beam is a structural member that rests across the openings like windows, doors, etc. in the residential building to carry the load from the structure above, and the ends of this beam are built into the wall and the width of the lintel beam and width of the wall is equal.

Is lintel a tie beam?

Theoretically speaking, it is a sort of beam but technically speaking, it has a supportive role. Its main function is to support the masonry wall above the openings/door/window and transfer its load to sidewalls. The lintel provides support to the load of the portion of the wall situated above it.

What are the three types of beams?

1. Cantilever beam

• Simply Supported beam. A beam supported or resting freely on the supports at its both ends, is known as simply supported beam. ...
• Overhanging Beam. If the end portion of a beam is extended beyond the support, such beam is known as overhanging beam. ...
• Fixed Beam.

Why do you need a lintel?

A lintel is a structural support over an opening, allowing loads to be transferred to the foundations without unnecessary stress placed upon frames such as windows or doors. A lintel should have sufficient strength and stiffness and be made of a material that is compatible with the masonry it supports.

Who would install a lintel?

Installing a lintel or Opening a wall to fit a door or window can be a very dangerous job, if you are not 100% certain what you are doing it is best to employ a builder to do it for you. Before opening the wall you are advised to seek advice from a structural surveyor.

Where lintel is provided?

The Lintel is a horizontal member placed just over the openings of doors, windows, verandas, etc. to support the load of the masonry work over It. Lintel beams provide supports to the openings in building and transfer that load safely to the masonry walls or columns.

How does bond beam work?

A bond beam is a horizontally reinforced element in a masonry wall that provides resistance to shear loads and also helps distribute lateral loads throughout the wall section. Reinforcement is placed in special bond-beam units that have reduced-height cross webs and grouted solid.

What is beam construction?

In building construction, a beam is a horizontal member spanning an opening and carrying a load that may be a brick or stone wall above the opening, in which case the beam is often called a lintel (see post-and-lintel system).

What is lintel height?

The height between the floor level and lintel level is known as lintel height. As per the building regulations and guidelines, For residential building the standard height of lintel should be 7feet (2.1m) and for the commercial buildings it is 7.5 feet (2.3 m) is adopted.

What are tie beams?

What Is Tie Beam? The beam which connects two or more columns/rafters in a roof/ roof truss or in any height above floor level is called tie beam. Tie beams are mainly provided in roof truss and at plinth level.

What is ground beam and plinth beam?

Plinth beam is a beam in a framed structure provided at ground level. ... It may not carry any slab load and designed to carry its own self weight and masonry load above the plinth beam. The plinth beam needs to be strong, but need not to be made up of reinforced cement concrete (RCC) all the time.

What is NGL and EGL?

Various types of levels are used in AutoCAD drawings, and they are used to ease understanding. The different types of levels used in building construction are as follows. Natural Ground Level (NGL) Ground Level (GL) Existing Ground Level (EGL)

Which mm rod is used for lintel?

The end bearings for the lintel should be at least 200 mm. The width of lintels is the same as that of the wall.

What is lintel level?

The level between the top portion of the window and top slab is called Lintel level. The potion above the Door lintel or Window lintel is called Lintel level. Lintel is provided above the door and window to transfer the upward wall load to the surrounding wall.

What is RCC lintel?

Reinforced Cement Concrete Lintels  At present, the lintels of R.C.C are widely used to the openings for doors, windows, etc. in a structure because of their strength, rigidity, fire resistance, economy and ease in construction. R.C.C lintels are suitable for all the loads and for any span.
