Pipe ramming is a trenchless method for installation of steel pipes and casings. Distances of 30 m or more and over 1,500 mm in diameter are common, although the method can be used for much longer and larger installations.

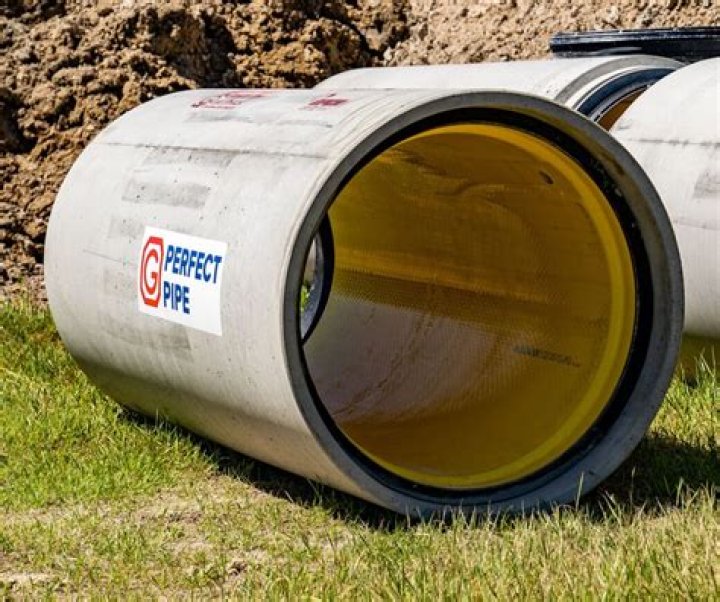

What does it mean to jack a pipe?

Pipe jacking is a trenchless method of installing pipes, conduits, and utility corridors by applying a force which pushes the pipe through the ground while controlled excavation takes place at the face. ... Pipe jacking can also be referred to as pipe ramming.

What is jacking construction?

In the trenchless construction and rehabilitation industry, jacking is used to install subterranean pipes by pushing them through the soil. ... The term is sometimes used interchangeably with pipe jacking or pipe ramming.

What is pipe jacking in tunnel construction?

Pipe Jacking Method in Trenchless Construction

Pipe jacking method involves the installation of a pipe (prefabricated) through the ground. The driving takes place from a drive shaft to the reception shaft. ... This facilitates the preparation of next pipe in a position to repeat the same procedure.

What is the difference between microtunneling and pipe jacking?

Microtunnelling is well-suited to situations where a pipeline has to conform to rigid line and level criteria. A pipe jack is defined as a system of directly installing pipe behind an open-face tunnel boring machine (TBM).

HOBAS Jacking Process (Animation)

15 related questions found

What is Jack and bore?

Jack and Bore is a trenchless method of sewer construction. ... Crews dig a sending pit and a receiving pit to install a new sewer pipe. They place a jack and bore machine in the sending pit and cut a hole underground horizontally from the sending pit to the receiving pit, without disturbing the surface above.

Why would pipe jacking be used instead of tunneling with shields?

Shields, excavation and face support can be provided for a wide variety of ground conditions. Construction tolerances are comparable with other tunnelling methods, and the pipe jacking method generally requires less overbreak than segmental tunnels and provides ground support and reduces potential ground movement.

What is pipe bursting method?

Pipe bursting is a method by which the existing pipe is opened and forced outward by a bursting tool. A hydraulic or pneumatic expansion head (part of the bursting tool) is pulled through the existing pipeline, typically by using a cable and winch.

Can you jack and bore a concrete pipe?

The cross-sectional area (CSA) of the pipe is usually sufficient to withstand pressure during jacking operations, but the expected jacking forces that the pipe will encounter should be ascertained prior to jacking. For excessive jacking pressure, concrete pipes with higher compressive strength may be required.

What is the purpose of jacking?

The jacking oil pump is used in large turbine systems to prevent metal-to-metal contact in the bearings during turbine start-up. This is accomplished by applying high- pressure oil to the turbine shaft bearings, raising the shaft with the high-pressure oil.

What are flat jacks?

The flat jack, invented by Freyssinet, is a simple, economical thin hydraulic device used to induce movement and/or apply high forces, which can be used in a restricted space. Description. Flat jacks take the form of a collapsible casing made up of two cold-worked steel half-sections and an annular rim.

Which pipe is best for boring?

PVC pipes have become the go-to choice for borewell. As one of the leading pipe manufacturers, we have a variety of range such as casing medium, casing shallow, and casing deep as per their applications in different depths of borewell projects.

What is HDD method?

Horizontal Directional Drilling (HDD) is a method of installing underground pipelines, cables and service conduit through trenchless methods. It involves the use of a directional drilling machine, and associated attachments, to accurately drill along the chosen bore path and back ream the required pipe.

How much does Jack and bore cost?

For jack and bore, the cost is $3 to $4 per inch of pipe diameter per linear foot if line and grade are not critical. The cost is $4 to $6 per inch of pipe diameter per linear foot if line and grade are critical (Iseley and Gokhale, 1997).

Is pipe bursting good?

Pipe Bursting Summed Up

Pipe bursting is a great way of replacing your sewer lines, especially if you are looking for ways to do so without disrupting the ground around the site in question. By choosing pipe bursting, you will not have to go through months of rehabilitation for the worksite.

Is pipe bursting safe?

Currently, pipe bursting is one of the safest and most cost effective plumbing repair options available to homeowners.

Is pipe bursting effective?

Pipe bursting is a powerful, effective method to replace PVC, clay, cast iron and any other kind of pipe. It's a method similar to lateral lining. After an entry point and receiving pit are cleared, a specially-designed tool called an expander head is introduced into the old pipe.

Can you jack and bore HDPE pipe?

The financial benefit from sliplining was the reduced number jack and bores required under existing roadways, as pipe bursting or open-cut was not allowed. ... The new, larger, or same size HDPE is then pulled by the rig through the existing pipe. During the process, the existing pipe is “burst” and left in the ground.

What is a bore in construction?

A bore is a horizontal hole produced underground primarily for the purpose of installing services. It is the underground tunnel in trenchless construction that's created to house cables, pipes or conduits. A bore is not created using conventional trenching.

How is horizontal drilling done?

Horizontal drilling is the process of drilling a well from the surface to a subsurface location just above the target oil or gas reservoir called the “kickoff point”, then deviating the well bore from the vertical plane around a curve to intersect the reservoir at the “entry point” with a near-horizontal inclination, ...

What is azimuth in HDD?

Azimuth is one of the angles used to describe the position of a well bore tangent relative to the North, projected on a horizontal plane. ... Actual bore path of a well bore needs to be closely monitored to prevent excess deviation from planned bore path.

What is NDRC drilling?

NDRC “Non Disruptive Road Crossing”

The Company specializes in non-disruptive road crossings utilizing the latest technology in Horizontal Thrust Boring and Directional Drilling Techniques. Horizontal Directional DrillingThe latest advanced technology in non disruptive road crossings.

Which company pipes are best for plumbing?

List of Top PVC Pipe Manufacturers in India

1. Supreme Industries [Plastics Piping Division] ...
2. Ashirvad pipes Pvt Ltd. ...
3. Finolex Industries. ...
4. Jain Irrigation [Piping Division] ...
5. Astral Pipes. ...
6. Prince Pipes and Fittings Pvt.

What is column pipe?

Column pipes are long tubes of different diameters that are used to extract and transport fluids. They are usually made from a combination of plastic and vinyl, called uPVC. It is non-corrosive, highly durable and possesses exceptional tensile strength to withstand tremendous hydrostatic pressure.
