Product Details. Full Bore Isolation maintains full water pressure where an isolation valve is used. Brass construction and Chrome Plated with easy 1/4 turn operation.

What does full bore valve mean?

A full port or sometimes called full bore, ball valve has a straight flow path where there is not a reduction of flow as it travels through the valve. In other words, the internal diameter of the pipe or tubing at the inlet and outlet of the valve has the same diameter as the interior of the ball valve.

What is a full flow isolation valve?

This type of valve allows the user to manually open and close the water flow making it quick and easy to conduct maintenance work on water supplies. ...

Do full bore valves make a difference?

There is absolutely no difference between the terminology full port and full bore; they are both the same thing. I have heard full bore used more in the industrial oil and gas industry than anywhere else; but that does not constitute a difference. So, we will get into what "full port' means when talking about valves.

What size is a standard isolation valve?

Isolation Valves, Standard & Full Bore 15mm, 22mm Chrome ISO Plumbing.

How to fit an isolation valve ⚡

42 related questions found

What size thread is on a 15mm compression fitting?

Threads on the 8mm, 12mm and 15mm compression ends are equal to 1/4", 3/8" and 1/2" BSP in accordance with BS 2779/ISO 228. Other thread sizes are to BS 84 Whitworth.

What is the best type of valve to use for isolation?

Gate Valves are used specifically in isolation applications in different piping systems, and they also operate fully when they are in opened or closed positions.

Does I need a full bore isolating valve mean?

Full bore are better where you need good flow but they are bulky. For things such as WH Basins where you don't need masses of flow then normal in-line isolators are fine. If the water is mains fed then in-line is OK again. I usually just use full bore for things like showers.

Why reduced bore valves are used?

The reducing ball valve is suitable for conveying gas or medium with physical properties similar to water, because its weight is about 30% lighter than the full diameter ball valve, and its flow resistance is only about 1 / 7 of the same diameter globe valve. It is beneficial to reduce pipeline load and cost.

Do isolation valves reduce water pressure?

1 Answer. They won't reduce the static pressure, just the dynamic pressure when there is water flow.

What does an isolation valve do?

Isolating valves, also known as an isolation valve, are used to regulate the flow of water from the mains to a water service pipe. ... Easy to use, simply turn the valve 90 degrees using a slot head screwdriver to open or close the valve.

Are lever ball valves full bore?

Universal Gas/Water Full Bore Lever Ball Valves (PN25) are perfect for use with gas or water. The Universal Ball Valve with colour coded sleeve indicates it is safe to be used on gas and water. This is a full bore body and a steel handle.

Can isolation valves be used on central heating?

Remove the isolation valves. They should not be used on a heating system. In time they will only leak anyway. The only valve suitable to use on heating is a gate valve which I would not use.

What is the difference between reduced bore and full bore?

A full bore valve has the same internal diameter as the pipe, whereas a reduced bore valve has a smaller internal diameter.

What is bore valve?

Valve bore size is the size of the hole through the ball, the working part of a ball valve. The difference between a standard and a full bore ball valve is directly related to the size of the ball and its bore. Full port bore sizes are the same as the inner diameters of both the valve ports and the pipe used.

What is a full port check valve?

Full Port Check Valves provide more flow and lower pressure. drops than conventional check valves. Our elastomer hinge check valve design takes performance to an entirely new level by eliminating the restrictive valve seat and substantially increasing the valve's open area and flow coefficient (Cv).

What is full bore flow?

Flow of water in a pipe where theoretically 100% of the cross-section of the pipe bore is filled. In practical terms, full-bore flow is regarded as achieved at water content greater than 95% by volume.

What is a reduced bore valve?

In reduced bore ball valves, flow through the valve is one pipe size smaller than the valve's pipe size resulting in flow area becoming lesser than pipe. ...

Why do we use full port valves?

Full-port ball valves are used where their low flow resistance is of value such as on pump suction pipes, where a pressure drop can affect pump performance. ... Flow is unrestricted but the valve is larger and more expensive so this is only used where free flow is required, for example in pipelines which require pigging.

What's the difference between a service valve and an isolation valve?

iso valves have compression both ends. so can be put in the middle of a section of pipe. service valves have compression one end and thread the other so can screwed onto a ball valve, or tap etc.

Are Pegler isolation valves full bore?

These are all full bore valves with Blue lever handle, blue tee handle, red lever handle and red tee handle options.

What is the difference between standard port and full port ball valves?

The difference between a standard ball valve and a full-port ball valve is in the size of the ball and bore in relation to the nominal pipe size of the valve. For example, the bore size in a 3/4-inch full-port ball valve is 3/4-inch in diameter, while the bore diameter in a standard ball valve is 1/2-inch in diameter.

What is another name for isolation valve?

A diaphragm isolation valve—also known as a "membrane valve"—is a solenoid-operated device that uses a diaphragm that extends and retracts to seal the valve seat and isolate the flow path.

Why do isolation valves leak?

Why Is My Isolation Valve Leaking? If your isolation valve is leaking, you may have a loose connecting nut or a broken valve component. ... A ballofix valve isolates the water supply by turning a screw. When you turn the screw to the off position, a ball goes across the pipe and stops the flow.

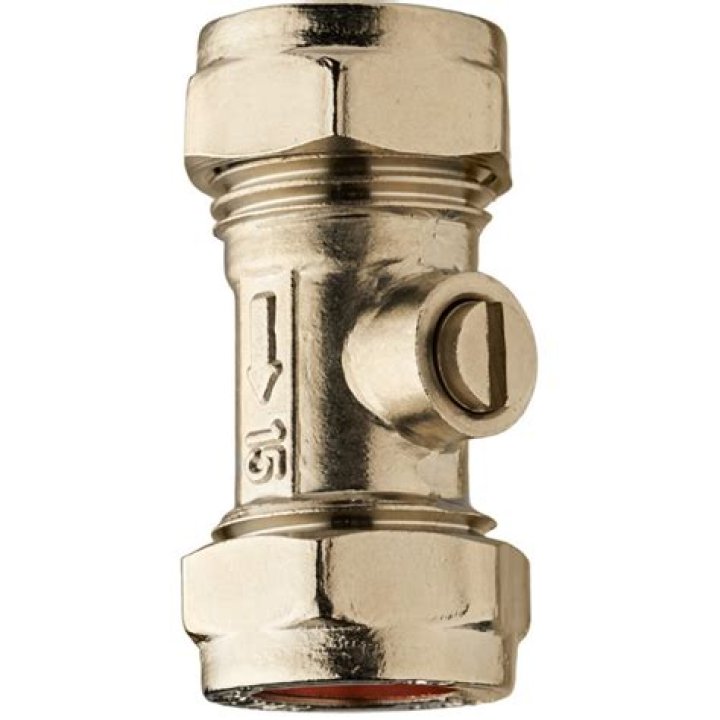

What does an isolation valve look like?

Isolation valve

Stopping the flow of water from your taps is really easy. Look at the isolation valve. You can see what looks like a slot-headed screw. If the slot is parallel with the arrow on the valve, the water is flowing through the pipe.
