Edge detection is a technique of image processing used to identify points in a digital image with discontinuities, simply to say, sharp changes in the image brightness. These points where the image brightness varies sharply are called the edges (or boundaries) of the image.

What is edge detection useful for?

Edge detection is an image processing technique for finding the boundaries of objects within images. It works by detecting discontinuities in brightness. Edge detection is used for image segmentation and data extraction in areas such as image processing, computer vision, and machine vision.

Why is edge detection useful in medical image processing?

Edge detection is a common process in the treatment of medical images and it is a very useful task for object recognition of human organs. Edge detection also show where shadows fall in an image or any other distinct change in the intensity of an image due to noise effects.

What is edge detection based on?

Roberts (Rogowska 2000), Prewit and Sobel (Rangarajan 2005) introduced edge detection on the basis of the principle of gradient which demonstrate the impact of these filters on the images which is based on the first derivative.

What are the applications of Canny edge detection?

The Canny edge detection method was also used to detect spontaneous, contractions. Abnormal spontaneous activity was evoked by the application of high-intensity, defibrillation-like electrical fields that may cause electrical damage to the cell membrane.

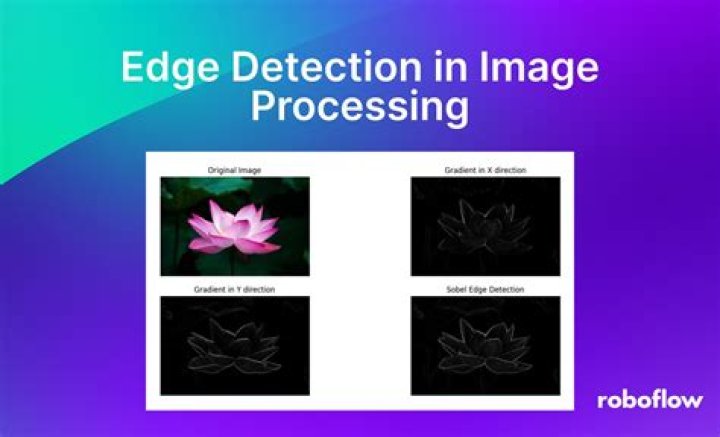

Edge Detection

27 related questions found

Which is the best edge detection algorithm?

Canny edge detector is probably the most commonly used and most effective method, it can have it's own tutorial, because it's much more complex edge detecting method then the ones described above.

What is the difference between Sobel and Canny edge detection?

The Canny Edge Detector is an edge detection operator that is used to detect a wide range of edges in images. ... The Sobel operator is used in image processing and computer vision, particularly within edge detection algorithms where it creates an image emphasising edges.

How does an edge detection filter work?

The Sobel filter is used for edge detection. It works by calculating the gradient of image intensity at each pixel within the image. It finds the direction of the largest increase from light to dark and the rate of change in that direction.

What are the steps for edge detection?

The Canny edge detection algorithm is composed of 5 steps:

1. Noise reduction;
2. Gradient calculation;
3. Non-maximum suppression;
4. Double threshold;
5. Edge Tracking by Hysteresis.

Which filter is used for edge detection?

The Canny filter is a multi-stage edge detector. It uses a filter based on the derivative of a Gaussian in order to compute the intensity of the gradients. The Gaussian reduces the effect of noise present in the image.

How can I improve my edge detection?

2 Answers

1. Read the input.
2. Convert to gray.
3. Threshold (as mask)
4. Dilate the thresholded image.
5. Compute the absolute difference.
6. Invert its polarity as the edge image.
7. Save the result.

What is edge in edge detection?

Edge detection is a technique of image processing used to identify points in a digital image with discontinuities, simply to say, sharp changes in the image brightness. These points where the image brightness varies sharply are called the edges (or boundaries) of the image.

How do you use edge detection in Photoshop?

1Make a selection with any selection tool. 2Click the Refine Edge button on the Options bar at the top of the Photoshop window. 3In the Edge Detection section, select the Smart Radius check box. 4Increase the radius by dragging the slider to the right.

What is edge in an image?

Edges are significant local changes in the image and are important features for analyzing images. ... An edge in an image is a significant local change in the image intensity, usually associated with a discontinuity in either the image intensity or the first derivative of the image intensity.

How is edge linking done in an image?

Edge detectors yield pixels in an image lie on edges. The next step is to try to collect these pixels together into a set of edges. Thus, our aim is to replace many points on edges with a few edges themselves.

Which techniques applies edge segmentation?

In this paper, we present methods for edge segmentation of satellite images; we used seven techniques for this category; Sobel operator technique, Prewitt technique, Kiresh technique, Laplacian technique, Canny technique, Roberts technique and Edge Maximization Technique (EMT) and they are compared with one another so ...

What is edge filter?

Edge Filters split incident light into two parts according to wavelength: one part contains the light with all the longer wavelengths and the other part the light with all the shorter wavelengths. One part of the incident light is transmitted and the other one is reflected and/or absorbed.

Why is Canny edge better than Sobel?

The Canny method finds edges by looking for local maxima of the gradient of the image. ... The figure shows that the number of edges detected by Canny is much more than edges detected by Sobel means the Canny edge detector works better than Sobel edge detector.

What is gradient edge detection?

Vertical edges can be detected by using a horizontal gradient operator followed by a threshold operation to detect the extreme values of the gradient. The gradient produces a doublet of extremes, positive-negative or negative-positive, depending on the direction of the transition.

How do you use edge detection in python?

The Canny edge detection algorithm can be broken down into 5 steps:

1. Step 1: Smooth the image using a Gaussian filter to remove high frequency noise.
2. Step 2: Compute the gradient intensity representations of the image.
3. Step 3: Apply non-maximum suppression to remove “false” responses to to edge detection.

How does Sobel edge detection work?

The Sobel filter is used for edge detection. It works by calculating the gradient of image intensity at each pixel within the image. ... The result shows how abruptly or smoothly the image changes at each pixel, and therefore how likely it is that that pixel represents an edge.

What is EDGE based segmentation?

In edge-based segmentation, an edge filter is applied to the image, pixels are classified as edge or non-edge depending on the filter output, and pixels which are not separated by an edge are allocated to the same category. ... 2) and eliminating all non-border segments containing fewer than 500 pixels.

Which is the best method among basic edge detection and why?

Canny edge detector is probably the most commonly used and most effective method, because it uses first a gaussian filter, it has more noise inmunity than other methods and you can stablish inferior and superior thresshold for edge detections in MATLAB.

Which tool is called an edge detection tool?

The Quick Selection tool and Magnetic Lasso tool are “semi-automatic,” If you drag the Quick Selection tool inside the edge you want, it can often figure out what the rest of the edge should be. If you drag the Magnetic Lasso along the edge you want, it can often follow that edge.

Where is Refine Edge 2020?

The Refine Edge Brush can be found under the “Select and Mask” feature, on the top left panel.

1. Use Refine Edge Brush to Enhance Your Selection. ...
2. Now since the dog is the subject of the photo, we can use another great feature in Photoshop 2020 called “Select Subject”, as shown below:
