What is diode switching time?
Victoria Simmons • Switching Time of a diode is the time it takes to switch the diode between two. states (ON and OFF states). • Assume R S is large enough that all current flows through diode in forward bias. conditions.
What is a switching diode?
A switching diode is suitable for switching a small signal of up to 100 mA, acting as a rectifier. In contrast, a rectifier diode is used for AC line rectification (from alternating current to direct current). Switching diodes are designed to handle a voltage of less than tens of volts.
What are types of switching time of diode?

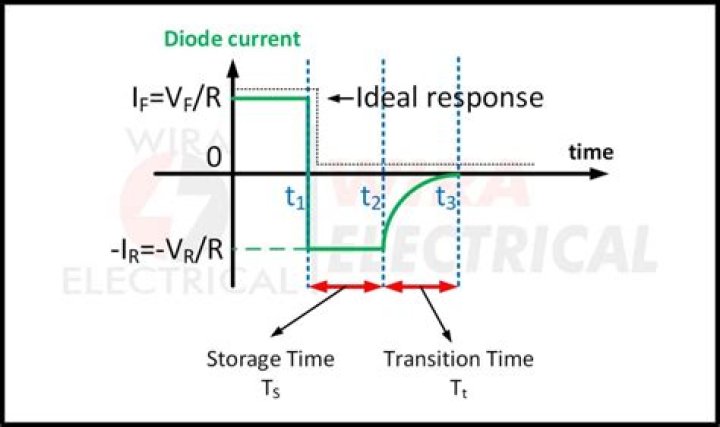

Definitions- Storage time − The time period for which the diode remains in the conduction state even in the reverse biased state, is called as Storage time.
- Transition time − The time elapsed in returning back to the state of non-conduction, i.e. steady state reverse bias, is called Transition time.
What is diode time?
A potential diffi culty due to diode turn-on time is that the resultant transitory “overshoot” voltage across the diode, even when restricted to nanoseconds, can induce overvoltage stress, causing switching regulator IC failure.
What is turn off time of diode?
For a few microseconds, the charge stored in the diode keeps V(out) positive. But if we look at the current through the diode, we can see it's actually conducting a lot of current in the negative direction! The diode stays on even when it's supposed to be off for about 1.5 microseconds.
Diode (PN Junction) Switching Times
32 related questions foundWhat is diode breakdown?
The break down diode is an electronic component with two electrodes called as the anode and the cathode. ... When the cathode is negative charge related to the anode at a voltage greater than minimum called as forward breaker, then the current flows through the diode.
What are the applications of switching diode?
Switching Diode Applications- Voltage clamping,
- High speed rectifying and switching circuits,
- Reverse current and discharge protection,
- Switched-mode power supplies (as a rectifier).
Whats a diode do?
A diode is a semiconductor device that essentially acts as a one-way switch for current. It allows current to flow easily in one direction, but severely restricts current from flowing in the opposite direction. ... When a diode allows current flow, it is forward-biased.
Which diode takes very small switching time?
The Schottky diode (named after the German physicist Walter H. Schottky), also known as Schottky barrier diode or hot-carrier diode, is a semiconductor diode formed by the junction of a semiconductor with a metal. It has a low forward voltage drop and a very fast switching action.
What is high speed switching diode?
These diodes have maximum repetitive peak reverse voltages of one hundred volts and repetitive peak forward current of either two hundred twenty-five or four hundred fifty milliamperes. ...
What do you mean by PIV?
Peak Inverse Voltage (PIV) or Peak Reverse Voltage (PRV) refer to the maximum voltage a diode or other device can withstand in the reverse-biased direction before breakdown. Also may be called Reverse Breakdown Voltage.
How do you test a switch diode?
The Diode Test procedure is conducted as follows:- Make certain a) all power to the circuit is OFF and b) no voltage exists at the diode. Voltage may be present in the circuit due to charged capacitors. ...
- Turn the dial (rotary switch) to Diode Test mode. ...
- Connect the test leads to the diode. ...
- Reverse the test leads.
What is switching speed?
switching speed (toggling speed) A measure of the rate at which a given electronic logic device is capable of changing the logic state of its output in response to changes at its input. It is a function of the delay encountered within the device, which in turn is a function of the device technology.
Which diode is used as switch?
A p-n junction diode can be used as a switch. When the diode is forward-biased, the switch is said to be in the ON state and when it is reverse-biased, the switch is in the OFF state. Figure 6.1 shows the V–I characteristic of a p–n junction diode.
What is diode types of diode?
There are several types of diodes and those are available for use in electronics design, namely; a Backward diode, BARRITT diode, Gunn Diode, Laser diode, Light emitting diodes, Gold doped diodes, crystal diode, PN Junction, Shockley diode, Step recovery diode, Tunnel diode, Varactor diode, and a Zener diode.
What is diode current?
The diode current equation expresses the relationship between the current flowing through the diode as a function of the voltage applied across it. Mathematically the diode current equation can be expressed as: ... V is the voltage applied across the diode, η is the (exponential) ideality factor.
Does diode work on DC?
As such, the diode can be viewed as an electronic version of a check valve. This unidirectional behavior is called rectification, and is used to convert alternating current (ac) to direct current (dc). Forms of rectifiers, diodes can be used for such tasks as extracting modulation from radio signals in radio receivers.
How are diodes rated?
The peak inverse voltage rating of a diode is the maximum reverse voltage that can be connected across a diode without breakdown. ... PIV rating extend for tens of volts to several thousand volts, depending on the construction. The PIV rating is also called the peak reverse voltage (PRV) or breakdown voltage V(BR).
How are diodes used in everyday life?
The application areas of diodes include communication systems as limiters, clippers, gates; computer systems as logic gates, clampers; power supply systems as rectifiers and inverters; television systems as phase detectors, limiters, clampers; radar circuits as gain control circuits, parameter amplifiers, etc.
Which of the following diode has the fast switching?
Schottky Diode:
The Schottky diode's significant characteristic is its fast switching speed as it doesn't allow the diode to reach saturation. This makes the Shottky diode useful for Microwave frequencies and digital applications.
Where is diode used?
Diodes can be used as rectifiers, signal limiters, voltage regulators, switches, signal modulators, signal mixers, signal demodulators, and oscillators. The fundamental property of a diode is its tendency to conduct electric current in only one direction.
What destroys a diode?
If the reverse bias voltage exceeds a maximum value, the breakdown voltage, the diode will conduct current and an excessive current flow can destroy the device. This is called avalanche breakdown. A second form of breakdown, tunneling (or Zener) breakdown, can also occur.
What is diode resistant?
Hence, diode resistance can be defined as the effective opposition offered by the diode to the flow of current through it. ... Ideally speaking, a diode is expected to offer zero resistance when forward biased and infinite resistance when reverse biased.
What happens to diode after breakdown?
Breakdown itself does not damage a diode, if the current is limited. Zener diodes constantly work in this mode. What is important is that if there is no current limiting, the diode will heat until it would burn, and you'll have a short circuit or open circuit, and it won't work.
