In marine propulsion, a variable-pitch propeller is a type of propeller with blades that can be rotated around their long axis to change the blade pitch.

How does a controllable-pitch propeller work?

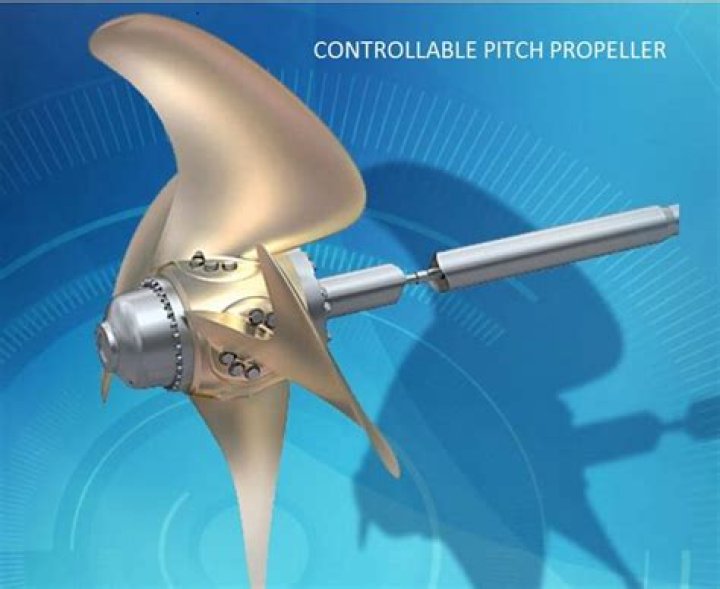

A controllable-pitch propeller is made up of a boss with separate blades mounted into it. An internal mechanism enables the blades to be moved simultaneously through an arc to change the pitch angle and therefore the pitch. ... The cylinder movement is transferred by a crank pin and ring to the propeller blades.

What is controllable-pitch propeller aircraft?

A controllable-pitch propeller is one where the pitch is controlled manually by the pilot. Alternatively, a constant-speed propeller is one where the pilot sets the desired engine speed (RPM), and the blade pitch is controlled automatically without the pilot's intervention so that the rotational speed remains constant.

What is the difference between fixed pitch propeller and controllable-pitch propeller?

Unlike fixed pitch propellers whose only operational variable is rotational speed, the controllable pitch propeller provides an extra degree of freedom in its ability to change blade pitch.

What are the advantages of a controllable-pitch propeller?

Advantages Of A Controllable Pitch Propeller

Higher propulsion efficiency than with a fixed pitch propeller, optimising speed and bollard pull performances. Better maneuverability: passing from “ahead” to “reverse” occurs smoothly and without dead time, simply through propeller pitch inversion.

Controllable Pitch Propellers | How they are used to power ships

35 related questions found

What automatically balances engine revolutions against propeller pitch?

On most ships this is achieved by installing a 'combinator' which automatically balances engine revolutions against propeller pitch, thus producing a saving in fuel and better propeller performance.

What is the difference between a controllable pitch propeller and a constant speed propeller?

The pitch on a constant-speed propeller can change automatically. With the controllable-pitch propeller, the pilot changes the angle directly in flight. The angle will not change automatically, only when the pilot manually changes it.

What is the difference between FPP and CPP?

CPP propeller blades can rotate around their axis, FPP is fixed and can't rotate. This is a type of propeller with blades that rotate around their own longitudinal axis and influence the direction of thrust. This is a type of propeller with fixed blades that cannot rotate.

How does a Kort nozzle work?

In a Kort nozzle, the inflow velocity is increased, reducing pressure. This lowers thrust and torque of the propeller. At the same time, a circulation occurs, resulting in an inward aimed force, that has a forward component. The duct therefore has a positive thrust.

What is marine propeller?

A propeller is a rotating fan-like structure that is used to propel the ship by using the power generated and transmitted by the main engine of the ship. ... A ship propels on the basis of Bernoulli's principle and Newton's third law.

What are flyweights aviation?

The "L" shaped flyweights, which spin around in a circle, are connected to the engine through gears. They're also connected to the pilot valve, which they move up and down. When the engine speeds up, the weights spin faster and fly out due to centrifugal force, lifting the pilot valve up.

What is the purpose of propeller counterweights?

Variable pitch propellers have either counterweights or a lock to limit unwanted blade angle movement to low pitch after failures. Counterweights are attached to the blade at a position that will cause the centrifugal loads on the counterweights to drive the blades towards higher pitch (towards feather).

What is Prop feathering War Thunder?

Feathering the propeller puts the still spinning prop into a low-drag state (think palm down from the earlier experiment) which will make flying the airplane a bit easier with the loss of an engine. Now on to how to do it in game.

What is full feathering propeller?

A full-feathering propeller system is normally used only on twin-engine aircraft. ... To prevent this, the propeller can be "feathered" (turned to a very high pitch), with the blades almost parallel to the airstream. This eliminates asymmetric drag forces caused by wind milling when an engine is shut down.

What is feathering a propeller?

On most variable-pitch propellers, the blades can be rotated parallel to the airflow to stop rotation of the propeller and reduce drag when the engine fails or is deliberately shut down. This is called feathering, a term borrowed from rowing.

Where would a nozzle tunnel propeller be most appropriate?

Tugs, fishing vessels, dredgers, and inland waterway vessels, which typically have heavily loaded propellers, will gain more thrust under these demanding conditions. Some types of general cargo vessels with relatively low sailing speeds might also benefit from installing a nozzle.

How do you increase thrust on a propeller?

A: Add another propeller! Propellers provide thrust to an airplane by creating a high pressure behind and a lower pressure out in front. More or larger propellers could help increase thrust on an airplane, but be careful!

What is fixed pitch?

Fixed-Pitch Propellers. A fixed-pitch propeller has the angle, or pitch, built into the propeller, as the name implies. The pitch cannot be changed once the propeller is completed. A fixed-pitch propeller is just one piece. Only one pitch setting is possible, and the whole configuration is usually a two-blade propeller ...

What is right handed propeller?

Propeller Geometry

In the case of a right-handed propeller, this type of propeller rotates in a clockwise direction, when viewed from astern, and thus describes a right-handed helical path. ... Conversely, the backs of the propeller blades are those parts of the propeller seen when viewed from ahead in the same way.

What propeller is most common used in ships?

A propeller is a fan like rotating structure generally at the aft of a ship imparting thrust to propel the ship. Most ships use the conventional screw propeller. But in some ships depending upon the need and requirement, different types of propellers are used.

What is the average roughness of a newly polished propeller?

New propellers are typically delivered with a surface roughness in accordance with ISO standard 484. Propellers are delivered to either a Class "S" or Class "I" standard which equates to surface roughness between1. 5 and 6 microns.

Why do cruises have a coarse pitch?

At cruising altitude, a more horizontal, high (coarse) propeller pitch allows the prop to move through the air more efficiently. This conserves fuel and reduces strain on the engine.

What is the advantage of a constant speed propeller?

A Constant Speed Propeller is more efficient than Fixed Pitch Propellers because it allows for the engine to operate at the most efficient RPM for given conditions. By operating the engine at the most efficient RPM, pilots can improve fuel efficiency, increasing range.

What is adjustable pitch?

of an airplane propeller. : having means of pitch adjustment of the blades while at rest but incapable of such adjustment while in motion.
