Displays the baud rate value according to the system clock setting and the serial channel setting. ... The baud rate will become 1/16 of the frequency calculated in the serial channel setting.

What is baud rate?

The baud rate is the rate at which information is transferred in a communication channel. Baud rate is commonly used when discussing electronics that use serial communication. In the serial port context, "9600 baud" means that the serial port is capable of transferring a maximum of 9600 bits per second.

What is 115200 baud rate?

baud 115200 means 115200 bits per second only if each baud = 1 bit. If each baud is 5 bits, then having baud 115200 means a bit rate of 115200 * 5 bits per seconds.

Why is 115200 baud?

One of the more common baud rates, especially for simple stuff where speed isn't critical, is 9600 bps. Other "standard" baud are 1200, 2400, 4800, 19200, 38400, 57600, and 115200. The higher a baud rate goes, the faster data is sent/received, but there are limits to how fast data can be transferred.

What is baud rate generator in UART?

The UART Baud Rate Generator (BRG) is a 16-bit timer used to generate the clocking mechanism required for communication. The timer consists of the UART Baud Rate Generator High and Low register pair (UxBRGH:UxBRGL).

Understanding UART

29 related questions found

How is baud calculated in UART?

Calculates the baud rate when the serial channel is used in the UART mode. Displays the baud rate value according to the system clock setting and the serial channel setting. The baud rate will become 1/16 of the frequency calculated in the serial channel setting.

Is baud a bit or byte?

Baud is related to gross bit rate, which can be expressed in bits per second. If there are precisely two symbols in the system (typically 0 and 1), then baud and bit per second (bit/s) are equivalent.

What is UART protocol?

By definition, UART is a hardware communication protocol that uses asynchronous serial communication with configurable speed. Asynchronous means there is no clock signal to synchronize the output bits from the transmitting device going to the receiving end.

How fast can UART go?

UART interfaces have a maximum data rate of around 5 Mbps. There is also some protocol overhead in the form of start, stop, and parity bits. The data rate of a UART interface is similar to that of an I²C interface.

What is baud rate with example?

Baud, or baud rate, is used to describe the maximum oscillation rate of an electronic signal. For example, if a signal changes (or could change) 1200 times in one second, it would be measured at 1200 baud. ... If a modem transfers a single bit per electronic pulse, one baud would be equal to one bit per second (bps).

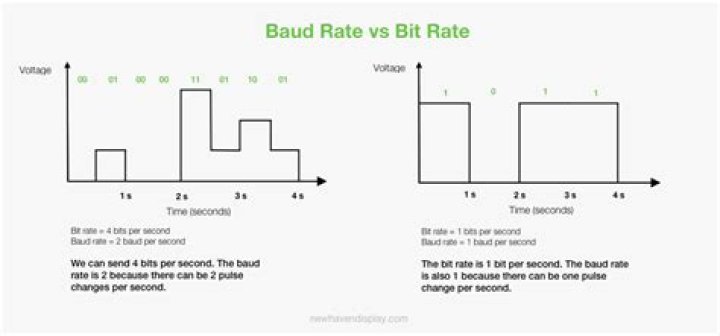

What is bit and baud rate?

Bit rate and Baud rate, these two terms are often used in data communication. Bit rate is simply the number of bits (i.e., 0's and 1's) transmitted in per unit time. While Baud rate is the number of signal units transmitted per unit time that is needed to represent those bits.

What is bit rate in data communication?

Bit rate refers to the rate at which data is processed or transferred. It is usually measured in seconds, ranging from bps for smaller values to kbps and mbps. Bit rate is also known as bitrate or data rate.

What is symbol rate communication?

In a digitally modulated signal or a line code, symbol rate or modulation rate is the number of symbol changes, waveform changes, or signaling events across the transmission medium per unit of time. The symbol rate is measured in baud (Bd), baud rate or symbols per second.

CAN bit sampling point?

1.1 the bit sample point is located somewhat close to the end of the actual bit time in order to compensate for signal propagation delays in the CAN network plus delays within the actual CAN receiver/transmitter circuits.

CAN FD CAN HS?

CAN FD provides a significant speed increase above classical HS-CAN networks, accelerating bit rates from previously 500 kbps up to 2 or 5 Mbps in the data phase of the CAN FD frame.

How do you calculate bit time?

The basic formula for is as follows: Bit time = 1 / NIC speed. Some common measurements of bit time are 10 nanoseconds for Fast Ethernet and 100 nanoseconds if the determined speed is 10 Mbits/s for the NIC. The bit time is 1 nanosecond for gigabit Ethernet.

How many bits per second is 9600?

How many bits per second is 9600? For every byte of data transmitted, there are actually 10 bits being sent: a start bit, 8 data bits, and a stop bit. So, at 9600 bps, we're actually sending 9600 bits per second or 960 (9600/10) bytes per second.

What is the difference between baud and bps?

bps is simply the number of bits transmitted per second. The baud rate is a measure of how many times per second a signal changes (or could change).

What is the purpose of UART?

UART stands for Universal Asynchronous Receiver/Transmitter. It's not a communication protocol like SPI and I2C, but a physical circuit in a microcontroller, or a stand-alone IC. A UART's main purpose is to transmit and receive serial data. In UART communication, two UARTs communicate directly with each other.

What is the difference between data rate and signal rate?

Data rate and Signal rate:

Data rate – Number of data elements transmitted per second. Signal rate – Number of signal elements transmitted per second.

What is the difference between data rate and bit rate?

Bit rate of a video signal is the no of bits per frame per second. Also, data rate is the no of bits per second.

What happens if baud rate is incorrect?

If the baud rates (and thus the bit periods) are different, each sampling point will move gradually closer to the bit transition. In other words, the last data bit is the one that is most severely affected by baud rate discrepancy.
