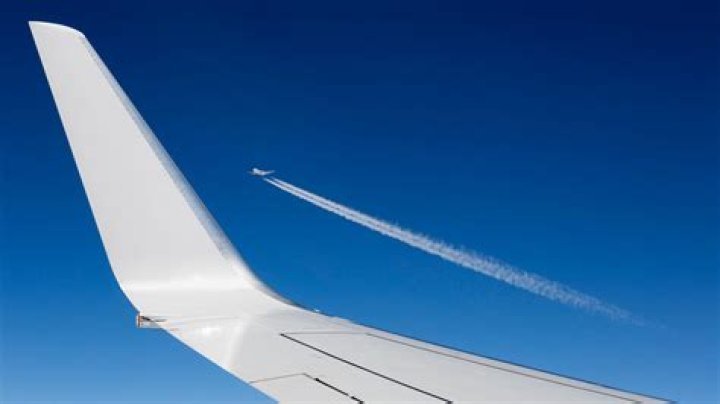

Winglets are vertical extensions of wingtips that improve an aircraft's fuel efficiency and cruising range. Designed as small airfoils, winglets reduce the aerodynamic drag associated with vortices that develop at the wingtips as the airplane moves through the air.

What does winglets mean on a plane?

Winglets allow the wings to be more efficient at creating lift, which means planes require less power from the engines. ... Winglets help mitigate the effects of "induced drag." When an aircraft is in flight, the air pressure on top of the wing is lower than the air pressure under the wing.

Can a plane fly without winglets?

Winglets are the folded up piece at the end of the wing. They're installed to decrease wingtip vortices, which is another cause of drag on the aircraft. ... Without them, the plane will have to deal with more vortex drag, and will not be able to fly as easily, but it will still be able to fly.

Why do planes not have winglets?

So why don't all airplanes have winglets? The airflow around winglets is complicated, so designing them is tricky. It's easier to improve an airplane's lift-to-drag ratio by simply making the wing longer, though this can lead to other problems, such as fitting into gates.

Why does Boeing 777 have no winglets?

Why does the 777 not have winglets? One reason that the 777 does not feature such wingtip extensions is the operational limits these would place on the aircraft. The 777-200LR and -300ER variants of the aircraft have a wingspan of 64.8 meters. This only just falls below the upper limit for the ICAO's aerodrome code E.

Winglets - How Do They Work? (Feat. Wendover Productions)

39 related questions found

Do winglets do anything?

Winglets increase an aircraft's operating efficiency by reducing what is called induced drag at the tips of the wings. ... The effect of these vortices is increased drag and reduced lift that results in less flight efficiency and higher fuel costs.

Do winglets really help?

Winglets produce an especially good performance boost for jets by reducing drag, and that reduction could translate into marginally higher cruise speed. But most operators take advantage of the drag reduction by throttling back to normal speed and pocketing the fuel savings. Several airliners use them.

Do all aircraft have winglets?

In fact, winglets of some shape or form are pretty much standard equipment on modern jets today, and some airlines are even retrofitting them to older aircraft too.

When did planes get winglets?

The Ilyushin Il-96 was the first Russian and modern jet to feature winglets in 1988. The Bombardier CRJ-100/200 was the first regional airliner to feature winglets in 1992. The A340/A330 followed with canted winglets in 1993/1994. The Tupolev Tu-204 was the first narrowbody aircraft to feature winglets in 1994.

How much do winglets cost?

Winglets cost anywhere from $500,000 for a 737 to more than $2 million for bigger planes. But the payoff can be rapid. Southwest Airlines estimates that it saves 54 million gallons of fuel every year thanks to equipping 93 percent of its fleet of 737s with winglets.

Why do aircraft have upturned wingtips?

The winglet is there to reduce vortex drag, which is the spiralling flow of air that forms under the tip of the wing mid-flight. “You can sometimes see these spirals trailing behind an aircraft wing — keep an eye out for them when it's raining or misty,” Qantas reported.

Which thing can fly without wings?

The answer to the “what flies without wings” riddle is “time”.

What is winglet made of?

Most airplane winglets are made of high-tech polymers. They can be retrofitted to aircraft that were originally designed without them. Adding winglets to an aircraft extends its range.

Do winglets reduce wake turbulence?

Winglets reduce wake turbulence thus minimizing its potential effect on following aircraft. Winglets come in different shapes and sizes with each type performing the same basic drag-reducing function. They have proven to be very effective even when retrofitted to aircraft originally designed in the 1960s.

What planes have split winglets?

The 737 MAX is fitted with Boeing's trademark split winglets, also called split-scimitar winglets. Dubbed the 737 MAX AT Winglet, they are a unique design incorporating features from blended, split-scimitar and raked winglets.

What is the best winglet?

• The most efficient winglet on any airplane.
• 737 Blended Winglet.
• 737 MAX AT Winglet.
• 737 Blended Winglet.
• 737 MAX AT Winglet has Natural Laminar Flow.

What is a winglet in Wings of Fire?

Wings of Fire: Winglets is a series of books written by Tui T. Sutherland as a companion to the Wings of Fire series. The first Winglets book is titled Prisoners, which is told from Fierceteeth's perspective.

Do winglets reduce drag?

Winglets increase an aircraft's operating efficiency by reducing what is called induced drag at the tips of the wings. An aircraft's wing is shaped to generate negative pressure on the upper surface and positive pressure on the lower surface as the aircraft moves forward.

What is the tip of a plane called?

A wing tip (or wingtip) is the part of the wing that is most distant from the fuselage of a fixed-wing aircraft. Because the wing tip shape influences the size and drag of the wingtip vortices, tip design has produced a diversity of shapes, including: Squared-off.

How much fuel do winglets save?

Depending on the airplane, its cargo, the airline's routes, and other factors, blended winglets can: Lower operating costs by reducing block fuel burn by 4 to 5 percent on missions near the airplane's design range.

What is the trailing edge of an aircraft wing?

The trailing edge of an aerodynamic surface such as a wing is its rear edge, where the airflow separated by the leading edge meets. Essential flight control surfaces are attached here to control the direction of the departing air flow, and exert a controlling force on the aircraft.

What has ring but no finger?

A lot of users have been wondering why is the answer to the riddle is the telephone. Taking the first line into consideration, “ring” here describes the sound a telephone makes when a call comes through.

What is in bed but never sleeps?

The answer to What has a bed but never sleeps and runs but never walks? Riddle Answer is "A river."

What is white when it's dirty?

The answer to this interesting What Becomes White When It Is Dirty? Riddle is Blackboard.
