What does windsock measure?
Victoria Simmons In this activity the students make a windsock to measure wind speed and direction. Wind is air in motion. Two ways we can measure the wind are speed, and direction: a windsock is a tool we can use to measure both.
What unit of measurement does a windsock use?
Standards. Per FAA standards, a properly-functioning windsock will orient itself to a breeze of at least 3 knots (5.6 km/h; 3.5 mph) and will be fully extended by a wind of 15 knots (28 km/h; 17 mph).
How does windsock measure wind speed?
Wind speed is indicated by the windsock's angle relative to the mounting pole; in low winds, the windsock droops; in high winds it flies horizontally. Alternating stripes of high visibility orange and white were initially used to help to estimate the speed of wind.
What does windsock and wind vane measure?
Instruments Used to Determine Wind Direction
Windsocks and wind vanes -- also called weather vanes -- both show the direction the wind is blowing. For example, wind vanes and windsocks might indicate a southerly wind meaning that the wind is blowing from the south.

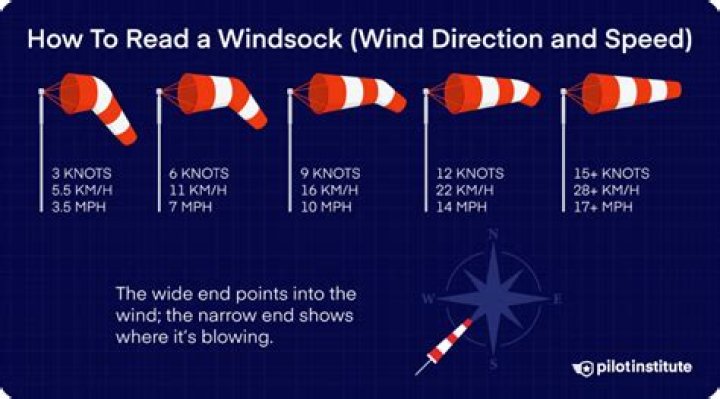

How do you read windsock?
If the windsock is extending to the northeast, the wind is coming from the southwest, or is southwesterly. The second segment of the sock extends when the wind speed has reached six knots; the third segment, nine knots; and the fourth segment, 12 knots.
Wind direction and speed
44 related questions foundWhat is a windsock purpose?
Wind is air in motion.
Two ways we can measure the wind are speed, and direction: a windsock is a tool we can use to measure both. A windsock is a conical textile tube you may have seen at an airport or alongside a highway at a windy location. Wind enters the windsock from one end and escapes out of the other.
How does a windsock work?
A windsock is one of the simplest things known to man. It is a sock of material that is sown into the shape of a tube. ... The tunneling effect of the wind through the tapered "sock" causes lift and makes the wind sock stick out like it does. However, this only works when there is wind to blow through the sock.
What does an anemometer measure?
An anemometer is an instrument that measures wind speed and wind pressure. Anemometers are important tools for meteorologists, who study weather patterns.
What are the uses of anemometer?
Uses Of Anemometer- To measure the wind pressure.
- To measure the flow of the wind.
- To measure the direction of the wind.
- It is used by the drone users or RC plane users to check the weather conditions before testing their devices.
- Also used by long-range shooters and pilots.
Why do we measure wind?
Wind speed and direction are important for monitoring and predicting weather patterns and global climate. Wind speed and direction have numerous impacts on surface water. These parameters affect rates of evaporation, mixing of surface waters, and the development of seiches and storm surges.
Why are windsocks red and white?
Did you know that the white and orange strips on windsocks are not for decoration, they actually indicate relative wind speeds. Windsocks are conical textile tubes that are often installed at airports and at chemical plants where there is risk of gaseous leakage.
Why windsock is narrow at the end?
What is the purpose of industrial and aviation windsocks? ... In case of a high-speed wind, a windsock will fly horizontally, its position helping to determine the strength of the breeze. When the narrower end of the windsock points to the north, it indicates that the breeze is coming from the south, and vice versa.
How long is a windsock?
The standard wind sock is 8 feet long, with a throat diameter of 18 inches.
How do we measure wind?
Wind speed is measured with an anemometer. Most anemometers have four horizontal shafts arranged like the spokes of a wheel. The end of each shaft is cup-shaped. The wind pushes the concave side of the cup more than the convex side, so the anemometer spins in the wind.
Why is it called a windsock?
Windsocks originally come from Japan and China. ... The Romans used windsocks as military banners. Some believe the wind-sail, used to direct air into a ship's lower apartments, inspired the development of the windsock in the Western world.
How does an anemometer measure speed?
Use a red marker or red paint and put a large X on one of the cups. Take your anemometer outside and measure the wind speed. To do so, count the number of times the cup with the red mark passes in front of you in 30 seconds. Multiply by two to get revolutions/rotations per minute (rpm).
Which instrument is used to measure the rainfall?
Instruments for measuring precipitation include rain gauges and snow gauges, and various types are manufactured according to the purpose at hand. Rain gauges are discussed in this chapter. Rain gauges are classified into recording and non-recording types.
What instrument measures air velocity?
An anemometer is an instrument used to measure the speed or velocity of gases either in a contained flow, such as airflow in a duct, or in unconfined flows, such as atmospheric wind.
Is anemometer a sensor?
The three Cups type Wind Speed Sensor Voltage Type(0-5V) Anemometer Kit is an instrument that can measure the wind speed. ... The precision of the surface is very high, and the internal circuit has been protection processing, the sensor has high strength, weather resistance, corrosion resistance and waterproof.
How does an anemometer measure wind speed?
HOW AN ANEMOMETER MEASURES WIND SPEED- Instantaneous Wind Speed = Anemometer Factor x Instantaneous Shaft Speed.
- Average Wind Speed = Anemometer Factor x (Number of Turns / Time)
What is a windsock for kindergarten?
Windsocks are a popular decoration to hang up on your porch. You can also hold them by the handle, and run around with them to make the streamers ripple in the wind. They come in all sorts of shapes and colors, making them a perfect craft project for children of all ages.
What is a windsock made out of?
The two main ones are nylon and polyester. All our windsocks are made out of polyester. It is the material that is mainly used in the industry and has taken over from nylon material. Although nylon is still used in some parts of the world, polyester is superior resistant to fading by UV.
