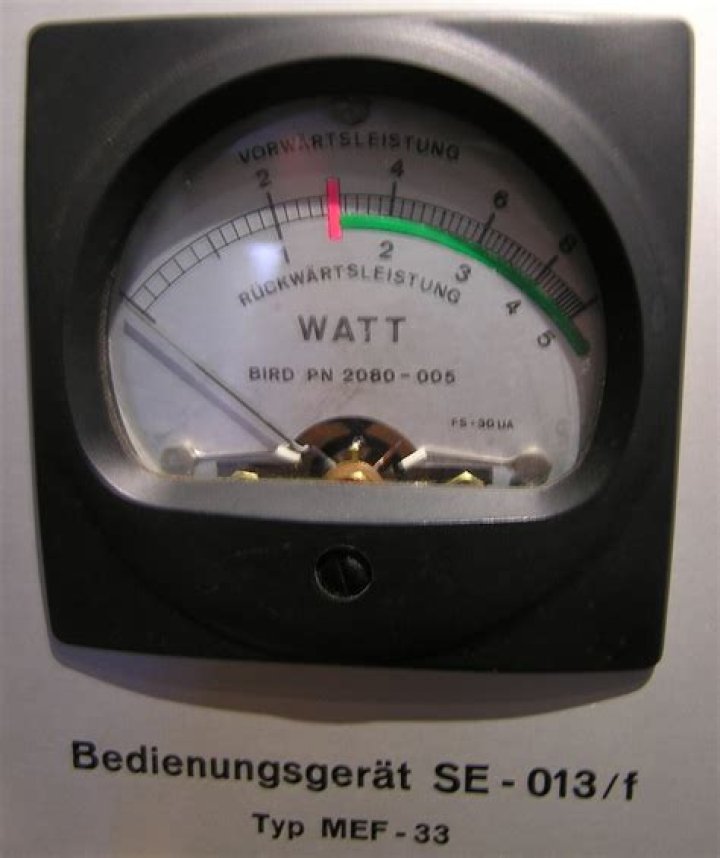

The wattmeter is an instrument for measuring the electric active power in watts of any given circuit. Electromagnetic wattmeters are used for measurement of utility frequency and audio frequency power; other types are required for radio frequency measurements.

What is wattmeter in English?

: an instrument for measuring electric power in watts.

What is the unit of wattmeter?

An instrument for measuring electric power in watts, the unit of electrical energy, volt times amperes; therefore, combining the functions of a volmeter and an ammeter. Abbrev., wm.

What is digital wattmeter?

Digital wattmeters measure current and voltage electronically thousands of times a second, multiplying the results in a computer chip to determine watts. The computer can also perform statistics such as peak, average, low watts and kilowatt-hours consumed.

Which type of power is used in wattmeter?

The induction type wattmeter can be used to measure AC power only. The working of induction type wattmeter is based on the principle of electromagnetic induction. The induction wattmeter consists of two laminated electromagnets viz. Shunt Magnet and Series Magnet.

Quick look at: DC power/watt meter 60V 100A

41 related questions found

Why do we use wattmeter?

The wattmeter is an instrument for measuring the electric active power (or the average of the rate of flow of electrical energy) in watts of any given circuit. Electromagnetic wattmeters are used for measurement of utility frequency and audio frequency power; other types are required for radio frequency measurements.

What are the types of wattmeter?

Types of Wattmeters

• Ammeter. The technique used by an ammeter underlies most wattmeters. ...
• Digital Wattmeters. ...
• Professional Wattmeters.

How is wattmeter used in an electrical circuit?

A wattmeter is used to measure the power of a circuit. ... The current coil of the wattmeter is added in series and the pressure coil is added in parallel. To measure the power of any electrical load from a wattmeter, the current coil must be connected in series with the load and is necessary.

Does a wattmeter measure dc power?

Wattmeter Method

As discussed DC power measurement, current coil of the dynamometer type wattmeter carries the load current while the pressure coil carries the current in proportional and in phase with the voltage of the circuit.

How many terminals does a wattmeter have?

Wattmeter Internal Circuit

The two terminals of the current coil are denoted by M and L. M terminal is to be connected to the power supply and the L terminal is to be connected to the Load. The two terminals of the voltage or pressure coil are denoted by C and V.

What is CC and PC in wattmeter?

The wattmeter is used for measurement of average power in any electrical network. The wattmeter has a voltage or potential coil (PC) and a current coil (CC) with polarity marking as indicated in Fig. ... If either one of the coils is reversed, the meter will give the negative value of power.

What is multiplying factor of wattmeter?

Step3: The Multiplication Factor (MF) is: MF = (voltage range x current range x power factor)/(range of the wattmeter scale).

How does wattmeter measure average power?

Each wattmeter measures a line-to-line voltage between two of the three power supply lines. In this configuration, the total power, watts is accurately measured by the algebraic sum of the two wattmeter values.

What is Electrodynamometer wattmeter?

An electrodynamometer or simply Dynamometer wattmeter is an instrument that is universally used for the measurement of DC as well as AC electric power. It works on the principle of dynamometer i.e. a mechanical force acts between two current carrying conductors.

How many coils does a wattmeter have?

The Electrodynamometer wattmeter has two coils i.e., fixed and moving coils. The fixed coil is connected in series with the circuit in order to measure power consumption. The supply voltage is applied to the moving coil.

What is the difference between wattmeter and energy meter?

The energy meter measures the total energy consumed by the load while the wattmeter measures the power in a circuit. The energy meter measures the energy in joules but wattmeter the measure the power in watts.

How many coils are there in a single phase wattmeter?

A wattmeter principally consists of two coils, one coil is called the current coil, and the other the pressure or voltage coil.

What is wattmeter application?

Uses of wattmeter:

The electromagnetic wattmeter is used to measure utility frequencies. They are also used in industry to check the power rating and consumption of electrical appliances. They are used with refrigerators, electric heater and other equipment to measure their power rating.

What is electrostatic wattmeter?

August 15, 2019 June 16, 2019. We use electrostatic wattmeter for measuring the small quantity of power. Particularly it is useful when the voltage is high and the power factor is low. We use electrostatic wattmeter mainly for measuring of dielectric loss of a power cable.

What is a Wattmeter give the names of any two types of wattmeter?

Wattmeter Types:

• Dynamometer type wattmeter.
• Induction type wattmeter.
• Electrostatic type wattmeter.

What is the difference between UPF and LPF wattmeter?

Answer: LPF wattmeter is used to measure power in inductive circuits. Inductive circuits have the property of lagging power factor and hence these wattmeters are used. ... So UPF(Unit Power Factor) Wattmeter is used in SHORT CIRCUIT TEST of Transformer.

Does wattmeter measure instantaneous power?

The power measured by the Two Wattmeter at any instant is the instantaneous power absorbed by the three loads connected in three phases. In fact, this power is the average power drawn by the load since the Wattmeter reads the average power because of the inertia of their moving system.

Why do we use 2 wattmeter method?

The two wattmeter method is used in determining total power derived from the three phase load which is always constant, regardless of variations in phase power as well as angular displacement. Thus, the power output from a three-phase motor is also constant based on the findings using the said measurement.
