beneficial for applications that have irregular access patterns and that are latency sensitive, like key-value stores, graph stores, and relational databases. RDMA networks also provide high bandwidth and high message rates, enabling systems that have high throughput and low latency at the same time.

Is RDMA reliable?

RDMA transports are either reliable or unreliable and are either connected or unconnected (also called datagram). With reliable transports, the NIC uses acknowledgments to guarantee inorder delivery of messages.

Why do we need RDMA?

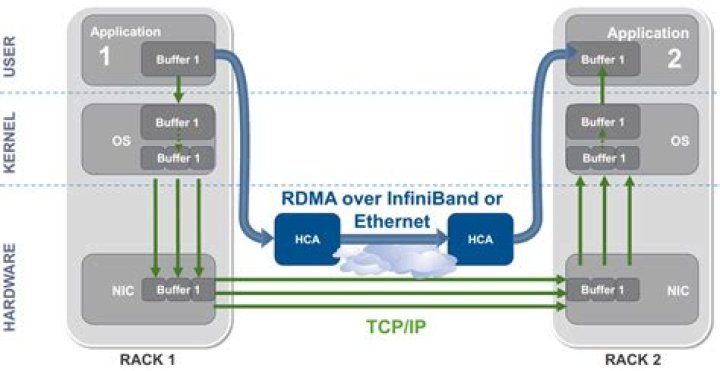

Remote Direct Memory Access(RDMA) helps in boosting the performance of applications that need low latency and high throughput as it supports kernel bypass, zero-copy and does not involve CPU. Remote Direct Memory Access(RDMA) is direct access of memory from memory of one machine to the memory of another machine.

What are the main benefits of using RDMA in your network?

The advantages of RDMA is the low latency transfer of information between compute nodes at the memory-to-memory level, without burdening the CPU. This transfer function is offloaded to the network adapter hardware in order to bypass the operating system software network stack.

Does RDMA use IP?

While the RoCE protocols define how to perform RDMA using Ethernet and UDP/IP frames, the iWARP protocol defines how to perform RDMA over a connection-oriented transport like the Transmission Control Protocol (TCP). ... One solution is to use converged Ethernet switches to make the local area network reliable.

Future Proof IO – When to Use RDMA | Lightboard Session 4

45 related questions found

Who uses RDMA?

Software vendors, such as Red Hat and Oracle Corporation, support these APIs in their latest products, and as of 2013 engineers have started developing network adapters that implement RDMA over Ethernet. Both Red Hat Enterprise Linux and Red Hat Enterprise MRG have support for RDMA.

Where is RDMA used?

RDMA is the standard protocol for high-speed InfiniBand network connections. This RDMA network protocol is often used for intersystem communication and was first popular in high-performance computing environments.

Why is an RDMA network advantageous for machine learning tasks?

Remote Direct Memory Access, RDMA for short, makes it possible to send data quickly and easily from a computer's main storage to the main storage of another computer. This is especially helpful when dealing with large data sets or complex processes, which tend to be required, for example, for machine learning.

What is RDMA Microsoft?

Remote DMA (RDMA) is an incredible technology that allows networked hosts to exchange information with virtually no CPU overhead and with extremely little latency in the end-system.

What is RDMA network fabric?

RDMA is Remote Direct Memory Access and the fabric is the storage network. RDMA over Fabrics is about increasing performance for access to shared data and taking advantage of solid-state memory technology.

What is protection domain in RDMA?

Once you have established a protection domain (PD), you may create objects within that domain. This section describes operations available on a PD. These include registering memory regions (MR), creating queue pairs (QP) or shared receive queues (SRQ) and address handles (AH).

What is RDMA technology?

Remote Direct Memory Access (RDMA) is an extenion of the Direct Memory Acces (DMA) technology, which is the ability to access host memory directly without CPU intervention. RDMA allows for accessing memory data from one host to another.

How does RDMA Read work?

RDMA is a hardware mechanism through which the network card (NIC) can directly access all or parts of the main memory of a remote node without involving the processor. One-sided RDMA operations do not involve the remote CPU at all. No data is copied between the user space and kernel, and the other way around.

What is Ibverbs?

Rust API wrapping the ibverbs RDMA library. libibverbs is a library that allows userspace processes to use RDMA “verbs” to perform high-throughput, low-latency network operations for both Infiniband (according to the Infiniband specifications) and iWarp (iWARP verbs specifications).

How do I know if my NIC is RDMA capable?

How do I verify iWARP RDMA operation?

1. Get-NetAdapterRDMA. Verify that the network interfaces show as RDMA capable and multichannel is enabled.
2. Get-SmbClientNetworkInterface. Network Direct is enabled in the OS.
3. Get-NetOffloadGlobalSetting | Select NetworkDirect.

Who invented RDMA?

Cool factoid: RDMA was co-invented by Amazon's current CTO, Werner Vogels!

What is SMB Direct feature?

SMB Direct is an extension of the Server Message Block technology by Microsoft used for file operations. The Direct part implies the use of various high speed Remote Data Memory Access (RDMA) methods to transfer large amounts of data with little CPU intervention.

When was Rdma invented?

RDMA Born in November 1993

It was a big break for the startup and the idea of RDMA, first codified in a November 1993 patent by a team of Hewlett-Packard engineers. Like many advances, the idea behind RDMA was simple, yet fundamental.

What is RoCE Mellanox?

RDMA over Converged Ethernet (RoCE) is a standard protocol which enables RDMA's efficient data transfer over Ethernet networks allowing transport offload with hardware RDMA engine implementation, and superior performance. RoCE is a standard protocol defined in the InfiniBand Trade Association (IBTA) standard.

What is an InfiniBand switch?

InfiniBand switch combines IB technology with fiber switch hardware. It achieves high capacity, low latency and excellent scalability for HPC, enterprise data centers and cloud computing environments.

What is azure RDMA?

Remote Direct Memory Access, or RDMA, is a technology that provides a low-latency network connection between processing running on two servers, or virtual machines in Azure.

What is RDMA port?

The system supports node-to-node connections that use Ethernet protocols that support remote direct memory access (RDMA) technology, such as RDMA over Converged Ethernet (RoCE) or iWARP.

What port does RDMA use?

Node-to-node communications with RDMA-capable Ethernet connections use TCP port 21455 for data traffic and UDP port 21451 and 21452 for service discovery on the system. If you are using the RoCE protocol, ensure that traffic is also open for UDP port.

What is GPU direct?

GPUDirect RDMA is a technology introduced in Kepler-class GPUs and CUDA 5.0 that enables a direct path for data exchange between the GPU and a third-party peer device using standard features of PCI Express. Examples of third-party devices are: network interfaces, video acquisition devices, storage adapters.

What is mellanox Ofed?

Mellanox OFED (MLNX_OFED) is a Mellanox-tested and packaged version of OFED, and supports RDMA (remote DMA) and kernel bypass APIs called OFED verbs over InfiniBand and Ethernet, allowing OEMs and System Integrators to meet the needs of end-users in their markets.
