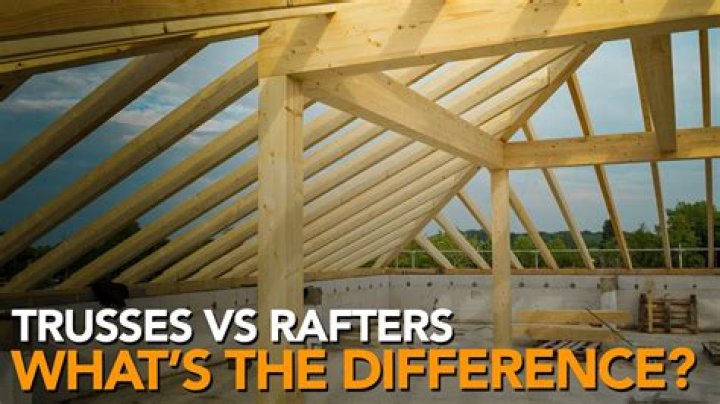

Rafters contain two main outer beams which support the roof structure. On the other hand, trusses come with multiple beams which add more support. Moreover, as said earlier, the entire weight of the roof is equally shared by a series of triangles inside the main frame.

What is better trusses or rafters?

Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.

Why are trusses cheaper than rafters?

Trusses are lightweight engineered units consisting of top and bottom "chords" supported by a webbing of lumber in a triangle shape. Because they're pre-made to your building specs offsite, often via automation like computer-driven saws, they are much faster and cheaper to install than rafters.

Whats a truss and a rafter?

Trussed rafter roofs, also known as roof trusses, provide a structural framework to support the roof fabric, ceilings or floors of buildings in both domestic and commercial structures. ... Robust and reliable, they can be used on a wide range of building types including timber frame, masonry and steel frame.

When would you use a rafter?

Rafters for Open Design

One of the major benefits for using rafters today is the open space they create. If you plan on creating a vaulted space, rafters will help you maximize the open area. Trusses can create vaulted ceilings but they are not quite as efficient at opening up a space as traditional rafters.

Cost Comparison For Gable Roof Trusses Versus Roof Rafters - Two Car Garage Framing Design Ideas

45 related questions found

Is it cheaper to build or buy roof trusses?

Lower cost – Building with roof trusses is 30% to 50% cheaper than building a stick roof. ... Span – Trusses can handle long spans over open areas better than rafters can. Good for DIY – Because of the ease of installing trusses, they are much easier for the do-it-yourselfer to build with.

Are roof trusses load bearing?

Most exterior walls are load bearing, but not all. It all comes down to where the roof trusses/rafters and floor joists/trusses are bearing.

Can you replace trusses with rafters?

This can be done by adding in extra rafters between your new support header and sidewalls. You'll need more rafters when getting rid of trusses as each rafter will be bearing more weight. Then, cut out the original trusses fully.

Are roof trusses stronger than rafters?

Are Roof Trusses Stronger Than Rafters? Yes, roof trusses can hold a great deal more weight than the rafters. Not only that, but they can also span a longer distance and still hold more weight.

How long do roof trusses last?

How long do roof trusses last? Roof trusses, including attic trusses with the right treatment, replacement of (shingles, and flashing) should survive the entire lifetime of the house, so long as there are no disasters eg. fire.

Do roof trusses need support in the middle?

Generally, you don't need central support for domestic trusses. In industrial applications, trusses support enormous roofs made from heavy materials and thus generally require central support.

What size wood is used for roof rafters?

Roof Rafter Spacing: 12 inches. Species and Grade: Douglas fir-larch #2. Dead load: 10 psf. Lumber Size used: 2×6.

Are roof trusses expensive?

Roof Truss Prices

You'll spend anywhere from $1.50 to $4.50 per square foot of building area for materials alone, or between $35 and $150 per truss, though extremely long and complex types can reach $400 each. Labor runs anywhere from $20 to $75 per hour.

What is a disadvantage of a typical roof constructed with roof trusses?

The biggest downside to roof trusses is that many types of trusses do not leave much space for a usable attic. There are certain designs that will create a small space, but this space is often half the span of the truss. ... Roof trusses, on the other hand, can be customized but are often limited to less complex designs.

How far can trusses span without support?

A roof truss can span up to 80' without support, however in any home that distance would be impractical and incredibly costly. Trusses are designed to span spaces without interior supports, and spans of up to 40' are the most common in today's homes.

Is it OK to cut a roof truss?

Home owners should avoid cutting or modifying their roof trusses. These trusses are usually engineered by a structural engineering company to carry a specific roof load. When a truss becomes damaged, cut or modified there is a chance of a structural overload or that they will not perform properly.

Are rafters and joists the same thing?

into rafters. (transitive) To furnish (a building) with rafters. A joist is a horizontal structural member used in framing to span an open space, often between beams that subsequently transfer loads to vertical members. ... To furnish with rafters, as a house.

Can you finish an attic with trusses?

Your truss supplier can design the trusses to provide open space to use for storage until you actually finish the attic. The supplier will also design the bottom cords of the trusses to support the future floor, furniture, people, etc. Add a window that meets egress requirements to the attic space.

What can be used instead of trusses?

You can use rafters for building a shed, cabin, or a small addition without having to wait for trusses to be made in a factory. There is no need to go through the hassle of creating and designing a roof truss for small projects, such as garages or sheds. Simply use rafters that are cut to shape on-site.

What are roof rafters?

A rafter is one of a series of sloped structural members such as wooden beams that extend from the ridge or hip to the wall plate, downslope perimeter or eave, and that are designed to support the roof shingles, roof deck and its associated loads. A pair of rafters is called a couple.

What does a roof truss sit on?

The trusses are fist stacked on top of the walls, either by hand or with a crane. These trusses went up in about four hours. They are on 24-inch centers. The trusses are tied to the walls with small metal plates.

How much weight will a 2x4 truss support?

The maximum weight capacity of a 2×4 stud is about 25,000 pounds to 30,000 pounds.

Which way do roof rafters run?

An important thing to know about joists is that they usually run in the same direction throughout a house. If the visible joists in a basement or attic run east to west, for example, you can be fairly certain the invisible joists under the bedroom floor also run east to west.
