The sensitivity of the potentiometer is defined as the smallest potential difference that is measured by using a potentiometer. The sensitivity of the potentiometer can be increased by decreasing the potential gradient. i.e., by increasing the length of the potentiometer wire.

What is sensitivity of potentiometer formula?

It is calculated as V / L, where V is the potential difference between two points and L is the distance between two points. The longer the wire the lesser the potential gradient and the greater the sensitivity of the potentiometer.

What is sensitivity of a potentiometer How can it be increased?

The smallest potentiometer difference can be measured using a potentiometer and so it is called sensitivity of potentiometer. Sensitivity of the potentiometer is increased only when increasing the length of the potentiometer wire. If reducing the current in circuit by the rheostat.

Which potentiometer is more sensitive and why?

(ii) A potentiometer is called sensitive if fall of potential per unit length i.e potential gradient is small. The slope of V-l graph gives potential gradient which is smaller for the potentiometer B than for potentiometer A. Hence, potentiometer B is more sensitive than A.

What is sensitivity of potentiometer?

The sensitivity of the potentiometer is defined as the smallest potential difference that is measured by using a potentiometer. The sensitivity of the potentiometer can be increased by decreasing the potential gradient. i.e., by increasing the length of the potentiometer wire.

Sensitivity of potentiometer| How sensitivity of potentiometer can be increased?|

31 related questions found

Why is a 10 wire potentiometer more sensitive than a 4 wire?

As the length increases, the potential decrement per unit length will become less and hence accuracy increases which makes it more sensitive. So ten wire potentiometer is more sensitive than a four-wire one.

Why potentiometer is so sensitive?

It can be increased by reducing the potential gradient. A potentiometer is sensitive if it is capable of measuring the small potential differences and it shows significant change in balancing length for a small change in the potential difference being measured.

What are potentiometers made of?

The resistive element of inexpensive potentiometers is often made of graphite. Other materials used include resistance wire, carbon particles in plastic, and a ceramic/metal mixture called cermet.

How do you make a potentiometer less sensitive?

A less expensive option would be to use a pot of much lower resistance in series with your current pot. To set the pair of them, first adjust the low-resistance pot to the middle of it's range, then use the original pot to get the "coarse" setting, and the low-resistance pot for the fine adjustment.

What is sensitivity of meter bridge?

Sensitivity of metre bridge is the accuracy to measure the value of current. bridge is most sensitive when all resistance are of same order.

How does the sensitivity of a potentiometer vary with potential gradient?

The sensitivity of a potentiometer is inversely proportional to the potential gradient. So sensitivity can be increased by decreasing is potential gradient. This can be done by increasing the number of wires or by increasing the length of the wire.

Is potentiometer based on deflection method?

Potentiometer is based on no deflection method. When the potentiometer gives zero deflection, it does not draw any current from the cell or the circuit i.e. potentiometer is effectively an ideal instrument of infinite resistance for measuring the potential difference.

What is current sensitivity?

Current sensitivity is defined as the deflection caused in the galvanometer per unit flow of current. It is given by- Is=θI=nBAc.

What is EMF in potentiometer?

Electromotive force (emf) is a measurement of the energy that causes current to flow through a circuit. It is the energy provided by a cell or battery per coulomb of charge passing through it. It can also be defined as the potential difference across the terminals of a cell, when no current flows through it.

Why potentiometer is used?

A potentiometer is a type of position sensor. They are used to measure displacement in any direction. ... In Linear Potentiometers the track is straight and in Rotary potentiometers the track is circular. The wiper moves along the track to measure the displacement through proportionally dividing the input voltage.

Do Potentiometers need resistors?

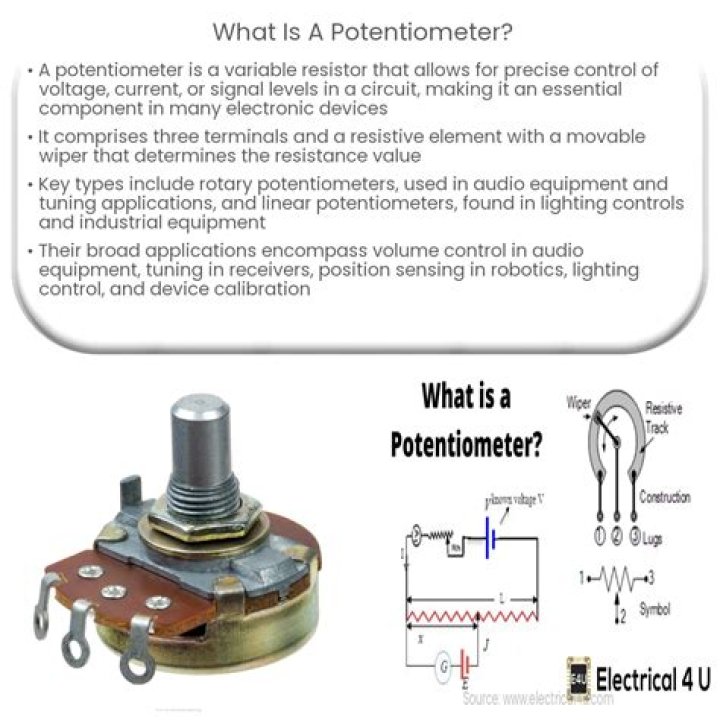

A potentiometer is a manually adjustable variable resistor with 3 terminals. ... A potentiometer is also commonly known as a potmeter or pot. The most common form of potmeter is the single turn rotary potmeter. This type of pot is often used in audio volume control (logarithmic taper) as well as many other applications.

What are the disadvantages of potentiometer?

Disadvantages of potentiometer

• It is slow in operation.
• It has low accuracy.
• It has limited bandwidth.
• If you use a linear potentiometer, you should apply a large force to move the sliding contact.
• There is a possibility of friction and wear due to the sliding of the wiper across the resistive element.

How does the sensitivity of a potentiometer vary with potential gradient ?( 2?

The sensitivity of a potentiometer is inversely proportional to its potential gradient. With an increase in the series resistance of the wire, the potential gradient of the wire decreases which in turn helps us to measure the emf more accurately.

Is mobile a potentiometer?

A potentiometer is essentially a resistor with three contacts, one of which is mobile. It acts as a variable resistor, since changing the position of the mobile contact, called the "wiper" (denoted by an arrow), changes the amount of the resistor through which current R, must pass.

Why potentiometer is more accurate than voltmeter?

The potentiometer is preferred over voltmeter when there is a measurement of emf of the cell because the potentiometer does not draw any current as it is a null device. ... This is the reason why potentiometer is preferred over voltmeter in order to get the actual measurement of emf.

Why 10m wire is used in a potentiometer?

A greater length of wire is preferred as it has a lower potential gradient. So a greater balancing length is required, which can minimize the error in measurement.

What is the sensitivity in physics?

Sensitivity describes the smallest absolute amount of change that can be detected by a measurement, often expressed in terms of millivolts, microhms, or tenths of a degree. ... The actual sensitivity is as much a function of the measurement device as it is the environment in which the measurement is being made.

What is sensitivity of galvanometer?

The current sensitivity of a galvanometer is the deflection per unit current produced by the galvanometer. A high-sensitivity galvanometer can be used to measure very low values of currents. A low-sensitivity galvanometer can be used to measure high values of currents.

Is potentiometer based on principle of Wheatstone bridge?

Potentiometer works on Wheatstone bridge principle.
