Is olivine a single chain silicate?
John Hall There are five basic structures for the silicate minerals as listed below. ... Minerals with this structure include olivine. Single Chain structure - these form when two oxygen atoms of each tetrahedron are shared with adjacent tetrahedrons. The ratio of oxygen to silicon is 3 to 1.
What type of silicate mineral is olivine?
olivine, any member of a group of common magnesium, iron silicate minerals.
What are single chain silicates?
Silicate Chains
Silicate minerals containing chains are termed inosilicates. They consist of single chains (SiO32−)n, in which the silicon to oxygen atom ratio is 1:3, and double chains (Si4O116−)n, in which the silicon to oxygen atom ratio is 4:11.
Is olivine a sheet silicate mineral?
Figure 5.23 Olivine is a silicate mineral made of isolated silica tetrahedra bonded to Fe and Mg ions (left). Olivine crystals (centre) can often be found in the volcanic igneous rock called basalt (right).
Which is an example of a double chain silicate structure?
The amphibole group of minerals are double chain silicates, for example the tremolite - ferroactinolite series - Ca2(Mg,Fe)5Si8O22(OH)2. If 3 of the oxygens from each tetrahedral group are shared such that an infinite sheet of SiO4 tetrahedra are shared we get the basis for the phyllosilicates or sheet silicates.
Silicates 1.mov
30 related questions foundIs olivine a silicate?
Olivine is a group of silicate minerals with a generalized composition of A(2)SiO(4). The composition of common olivine minerals are listed below: Forsterite: Mg (2) SiO (4) Fayalite: Fe (2) SiO (4)
Is halite a silicate?
There are 2 types of minerals, silicate and nonsilicate minerals. A silicate mineral is a mineral that contains a combination of the 2 elements Silicon and Oxygen. ... Halite is a mineral. It has a chemical composition of NaCl (sodium chloride) and is commonly used for table salt, hence the nickname 'rock salt'.
Is pyrite a silicate mineral?
Common examples of silicate minerals include quartz, olivines and garnet minerals. ... One abundant non-silicate mineral is pyrite, or "fool's gold," a compound of iron and sulfur well known for its deceptive metallic luster.
Is potassium feldspar a silicate?
All the rock-forming feldspars are aluminosilicate minerals with the general formula AT4O8 in which A = potassium, sodium, or calcium (Ca); and T = silicon (Si) and aluminum (Al), with a Si:Al ratio ranging from 3:1 to 1:1.
Is olivine a non Ferromagnesian silicate?
ferromagnesian minerals: Olivine, Pyroxene, Amphibole, and Biotite, which are all dark, ferromagnesian minerals. Continuous Series or Branch: consists of the non- ferromagnesian minerals, Calcium-rich Plagioclase feldspar and Sodium-rich Plagioclase feldspar, which are lighter colored than the discontinuous branch.
What are the 5 silicate structures?
TYPES & CLASSIFICATION OF SILICATES- Ortho silicates (or Nesosilicates)
- Pyro silicate (or Sorosilicates)
- Cyclic silicates (or Ring silicates)
- Chain silicates (or pyroxenes)
- Double chain silicate (or amphiboles)
- Sheet or phyllosilicates.
- Three dimensional (or tecto) silicates.
What is the example of non silicate mineral?
Examples include gold (Au), silver (Ag), platinum (Pt), sulfur (S), copper (Cu), and iron (Fe). Diamond and graphite are also native element minerals, both composed entirely of carbon.
Is gypsum a silicate?
Minerals without the presence of silicon (Si) or oxygen as a tetrahedral structure. They include calcite, gypsum, flourite, hailte and pyrite. Common non-silicate mineral groups include Oxides, Sulfides, Halides and Phosphates.
Is olivine igneous metamorphic or sedimentary?
Olivine occurs in both mafic and ultramafic igneous rocks and as a primary mineral in certain metamorphic rocks. Mg-rich olivine crystallizes from magma that is rich in magnesium and low in silica.
Is amphibole a silicate?
Amphiboles have hydroxyl groups in their structure and are considered to be hydrous silicates that are stable only in hydrous environments where water can be incorporated into the structure as (OH)-. ... Amphiboles decompose to anhydrous minerals (mainly pyroxenes) at elevated temperatures.

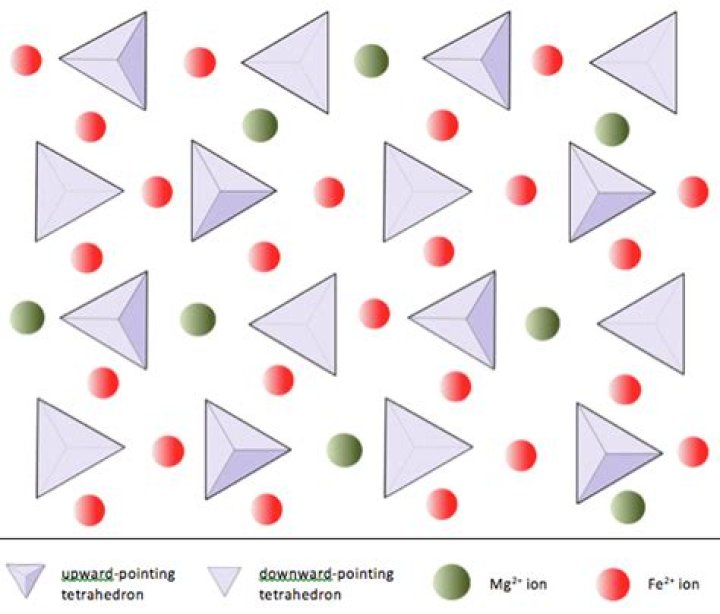

What is the silicate structure of olivine?
The simplest silicate structure, that of the mineral olivine, is composed of isolated tetrahedra bonded to iron and/or magnesium ions. In olivine, the –4 charge of each silica tetrahedron is balanced by two divalent (i.e., +2) iron or magnesium cations.
Is feldspar igneous sedimentary or metamorphic?
Because of their abundance, feldspars are used in the classification of IGNEOUS ROCKS. They are also abundant in METAMORPHIC ROCKS and in some sediments and SEDIMENTARY ROCKS.
What is the chemical formula for olivine?
Olivine is a magnesium iron silicate with the formula (Mg2+, Fe2+)2SiO4. End members are forsterite (Mg2SiO4) and fayalite (Fe2+2SiO4). Olivine is an abundant mineral in most mafic igneous rocks and the most abundant mineral in the earth's upper mantle.
Is calcite a silicate or non-silicate?
Calcite is the only common non-silicate rock forming mineral, being instead calcium carbonate. ... Calcite is one of the most ubiquitous minerals, being an important rock forming mineral in sedimentary environments. It is an essential component of limestones, and occurs in other sedimentary rocks.
What are silicate and non-silicate glasses?
Silicate minerals are composed of silicate groups. Nonsilicate minerals do not contain silicate groups. Silicate minerals have highly complex structures. Nonsilicate minerals have less complex structures when compared to silicate minerals.
Is Muscovite a silicate?
Muscovite, also called common mica, potash mica, or isinglass, abundant silicate mineral that contains potassium and aluminum. Muscovite is the most common member of the mica group. ... Muscovite typically occurs in metamorphic rocks, particularly gneisses and schists, where it forms crystals and plates.
Is Garnet a silicate?
garnet, any member of a group of common silicate minerals that have similar crystal structures and chemical compositions. They may be colourless, black, and many shades of red and green.
What halite means?
: salt that is in the form of large pieces or crystals : rock salt In crystals of halite there are ions of two different kinds … The smaller ones are those of sodium, and the larger ones are those of chlorine.—
