It is clear that dilation is not a congruent transformation, because the size of the shape is changed.

What type of transformation is a dilation?

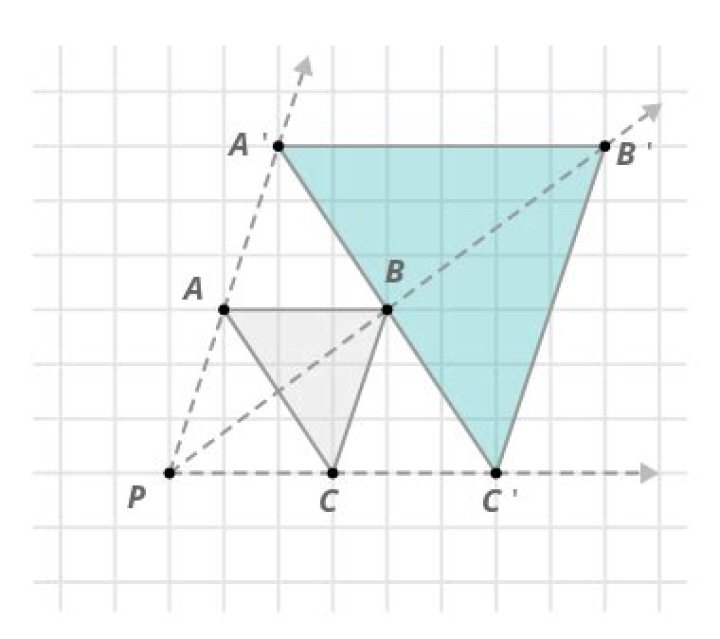

A dilation is a type of transformation that enlarges or reduces a figure (called the preimage) to create a new figure (called the image). The scale factor, r, determines how much bigger or smaller the dilation image will be compared to the preimage.

Why a dilation is not a congruence transformation?

Congruent figures are the same shape and the same size. The only choice that involves changing the size of a figure is letter a) dilation and as a result, creates two figures that are NOT congruent.

What transformation is a congruence transformation?

There are three main types of congruence transformations: reflections (flips), rotations (turns), and translations (slides). These congruence transformations can be used to obtain congruent shapes or to verify that two shapes are congruent.

Is dilation congruent or similar?

In order for two figures to be similar, they must have congruent (equal) corresponding angle measures and proportional sides. Dilations create similar figures because multiplying by the scale factor creates proportional sides while leaving the angle measure and the shape the same.

Dilations: Geometry Transformations Explained!

20 related questions found

Is a dilation a similarity transformation?

A rotation followed by a dilation is a similarity transformation. Therefore, the two triangles are similar.

Is dilation a rigid transformation?

A dilation is a similarity transformation that changes the size but not the shape of a figure. Dilations are not rigid transformations because, while they preserve angles, they do not preserve lengths.

What is another name for a congruence transformation?

In mathematics, a congruent transformation (or congruence transformation) is: Another term for an isometry; see congruence (geometry). A transformation of the form A → P^TAP, where A and P are square matrices, P is invertible, and P^T denotes the transpose of P; see Matrix Congruence and congruence in linear algebra.

How do you know if a transformation is congruent?

Figures are congruent if and only if there is a sequence of rigid motions that maps one figure to the other. So, to find congruent figures, look for sequences of translations, rotations, and reflections that map one figure to another. Because r(180°, O)(DEF) = LMN, the triangles are congruent.

Which transformation does not preserve congruence?

A dilation is the only transformation that does not preserve congruency but preserves orientation.

Do rotations preserve congruence and orientation?

As in part (c), since rotations preserve orientation, no composition of rotations will show the congruence between \triangle ABC and \triangle PQR. Reflections are sufficient to exhibit this triangle congruence or any other congruence.

Does dilation preserve orientation?

Dilations. A dilation is a transformation which preserves the shape and orientation of the figure, but changes its size.

Does dilation preserve congruence?

Dilations preserve congruence while reflections do not. ... Rotations and reflections both preserve a polygon's side lengths.

How do you tell if a transformation is a dilation?

A reduction (think shrinking) is a dilation that creates a smaller image, and an enlargement (think stretch) is a dilation that creates a larger image. If the scale factor is between 0 and 1 the image is a reduction. If the scale factor is greater than 1, the image is an enlargement.

Which transformation is not a congruence transformation or isometry?

A translation is considered a “direct isometry” because it not only maintains congruence, but it also, unlike reflections and rotations, preserves its orientation. On the other hand, a dilation is not an isometry because its Image is not congruent with its Pre-Image.

Which of the following is a congruence?

Two triangles are congruent if the side(S) and angles (A) of one triangle is equal to another. And the criterion for congruence of the triangle are SAS, ASA, SSS, and RHS.

Are translations always congruent?

Recall from Lesson 14-1 that congruent figures are figures with the same size and shape and that a translation image is always congruent to its preimage. ... A congruence transformation is a transformation under which the image and preimage are congruent. A congruence transformation is also called an isometry.

Are congruent shapes?

Two shapes that are the same size and the same shape are congruent. Shapes A, B, E and G are congruent. They are identical in size and shape.

Why is a rigid motion also called a congruence transformation?

Congruence Transformations

Another name for a rigid motion or a combination of rigid motions is a congruence transformation because the preimage and image are congruent. The terms “rigid motion” and “congruence transformation” are interchangeable.

What is a dilation transformation in math?

Dilation Geometry Definition: A dilation is a proportional stretch or shrink of an image on the coordinate plane based on a scale factor. Stretch = Image Grows Larger. Shrink = Image Grows Smaller.

How are dilations alike different from rigid transformations?

Dilations and rigid motions preserve angle measures. ... Dilations do not preserve distance (side lengths) while rigid motions do.

What do you mean by geometric transformation?

A geometric object is represented by its vertices (as position vectors) A geometric transformation is an operation that modifies its shape, size, position, orientation etc with respect to its current configuration operating on the vertices (position vectors).

What is similarity transformation?

▫ A similarity transformation is a composition of a finite number of dilations or rigid motions. Similarity transformations precisely determine whether two figures have the same shape (i.e., two figures are similar).
