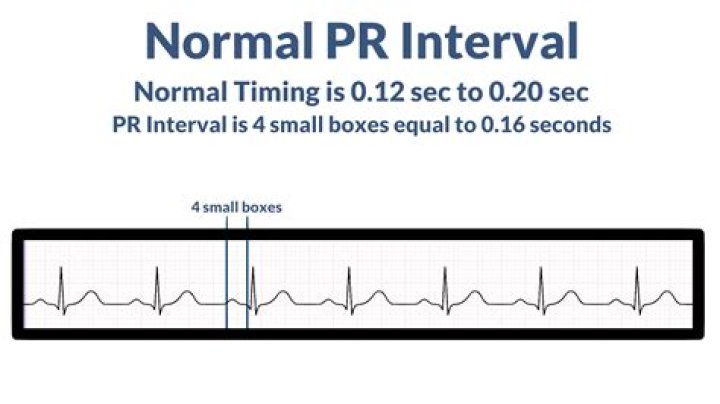

The normal PR interval is 0.12 to 0.20 seconds, or 120 to 200 milliseconds. Multiple abnormalities of the PR interval — including prolongation of the PR interval, shortening of the PR interval and variation from beat to beat — can occur; these are discussed in detail in ECG Reviews and Criteria.

What is the PR interval represent?

The PR interval represents the time between atrial depolarization and ventricular depolarization. Abnormalities in the timing of the PR segment can indicate pathology. A PR interval of under 120 milliseconds (ms) may indicate that electrical impulses are traveling between the atria and ventricles too quickly.

Is PR 90 normal?

Classifying PR interval as short (PR 90–120 ms), normal (PR 120–200 ms), or long (PR 200–500 ms), they demonstrated that both short and long PR intervals were associated with all-cause mortality, the composite of death or stroke, and the composite of cardiovascular death or cardiovascular re-hospitalization compared ...

What does abnormal PR interval mean?

A long PR interval (of over 200 ms) indicates a slowing of conduction between the atria and ventricles, usually due to slow conduction through the atrioventricular node (AV node). This is known as first degree heart block.

What does a PR interval of 0.24 mean?

First-degree AV nodal block - the conduction velocity is slowed so that the PR interval is increased to greater than 0.20 seconds. In the tracing below, the PR interval is 0.24 sec. Rate is not altered by the presence of the prolonged PR interval because it is still being controlled by the SA node.

How to Measure a PR Interval on EKG Strip | How to Interpret EKGs

19 related questions found

What is the normal PR?

The normal PR interval is 0.12 to 0.20 seconds, or 120 to 200 milliseconds.

What is normal QT interval?

In general, the normal QT interval is below 400 to 440 milliseconds (ms), or 0.4 to 0.44 seconds. Women have a longer QT interval than men.

Is a long PR interval anything to worry about?

Although a prolonged PR interval can signify conduction problems related to serious conditions such as a heart attack, a prolonged PR interval is most commonly seen in generally healthy, middle-aged to older adults and has been thought to reflect normal age-related changes.

Why is PR interval important?

The PR interval stretches from the onset of the P-wave to the onset of the QRS complex. It reflects the time interval from start of atrial activation (depolarization) to start of ventricular activation (depolarization). The PR interval reflects whether impulse conduction from the atria to the ventricles is normal.

Does PR interval change with heart rate?

In normal physiologic states the PR interval may vary with heart rate due to variations in sympathetic tone; increased tone mediates increased conduction through the AV node at faster heart rates (shortened PR), and withdrawal of sympathetic tone or increased vagal inputs will slow conduction through the AV node at ...

Is 120 pulse rate normal?

Your pulse rate, also known as your heart rate, is the number of times your heart beats per minute. A normal resting heart rate should be between 60 to 100 beats per minute, but it can vary from minute to minute.

What if my resting heart rate is 100?

Consult your doctor if your resting heart rate is consistently above 100 beats a minute (tachycardia) or if you're not a trained athlete and your resting heart rate is below 60 beats a minute (bradycardia) — especially if you have other signs or symptoms, such as fainting, dizziness or shortness of breath.

What is a good bpm for my age?

1-3 years: 80-130 bpm. 3-5 years: 80-120 bpm. 6-10 years: 70-110 bpm. 11-14 years: 60-105 bpm.

What is a normal PR interval in MS?

PR interval: 120-200 milliseconds. PR segment: 50-120 milliseconds. QRS complex: 80-100 milliseconds. ST segment: 80-120 milliseconds.

Can a short PR interval be normal?

Although a short PR interval may be a normal variant, it is also associated with the presence of an accessory bypass tract (e.g. WPW syndrome and LGL syndrome), and close proximity of the atrial impulse to the AV node such as occurs in a premature atrial beat.

How do you interpret a PR interval?

The PR interval is the time from the onset of the P wave to the start of the QRS complex. It reflects conduction through the AV node. The normal PR interval is between 120 – 200 ms (0.12-0.20s) in duration (three to five small squares). If the PR interval is > 200 ms, first degree heart block is said to be present.

Is first degree heart block serious?

First-degree heart block is the least severe. The electrical signals slow down as they move from your atria to your ventricles. First-degree heart block might not require treatment of any kind. Mobitz type I: The electrical signals get slower and slower between beats.

Is short PR syndrome serious?

When its length is lesser than 0.120 seconds, we speak as a short PR-interval. This event has a great capacity for severe cardiac arrhythmia production. Both entities can be very dangerous, separately. When they are together in the same individual, the consequences could be deadly.

How do you identify a pathological Q wave?

Q waves are considered pathological if: > 40 ms (1 mm) wide. > 2 mm deep. > 25% of depth of QRS complex.

What is a healthy PR interval?

The first measurement is known as the "P-R interval" and is measured from the beginning of the upslope of the P wave to the beginning of the QRS wave. This measurement should be 0.12-0.20 seconds, or 3-5 small squares in duration.

How is prolonged PR interval treated?

In general, no treatment is required for first-degree AV block unless prolongation of the PR interval is extreme (>400 ms) or rapidly evolving, in which case pacing is indicated. Prophylactic antiarrhythmic drug therapy is best avoided in patients with marked first-degree AV block.

What is considered prolonged PR interval?

Prolonged PR interval was defined as PR >200 ms, with further analysis performed using PR ≥220 ms. Main endpoints were all-cause mortality, cardiovascular mortality, and sudden cardiac death, and other endpoints included hospitalizations due to cardiovascular causes.

What is considered a high QT interval?

The normal QT interval varies depending on age and gender, but it's usually 0.36 to 0.44 second (see QT interval ranges). Anything greater than or equal to 0.50 second is considered dangerous for any age or gender; notify the healthcare provider immediately.

What is normal QTc interval for females?

Regarding the 12-lead ECG, “normal” QTc values are generally considered to be between 350 and 440 ms,^18,23 but, as will be discussed in the next section, this consideration of QTc >440 ms as indicative of “borderline QT prolongation” has probably been responsible for the greatest number of premature LQTS diagnostic ...

What is a QT interval in an ECG?

The Q-T interval is the section on the electrocardiogram (ECG) - that represents the time it takes for the electrical system to fire an impulse through the ventricles and then recharge. It is translated to the time it takes for the heart muscle to contract and then recover.
