Explanation: In prismatic compass, graduations are in W.C.B system, having 0° to south end, 90° at west, 180° at north and 270° at east. The graduations are engraved inverted.

What is graduation in compass?

Graduation in prismatic compass are marked from 0∘ to 360∘ Surveyor compass is divided into four quadrant and graduation are marked from 0∘ to 90∘ in each quadrant. In a prismatic compass a mirror is provided with the sight vane. In a surveyor compass no mirror is attached to the objective vane.

How the surveyor's compass is graduated?

Difference # Surveyor's Compass:

2. The graduations are marked both in the clockwise and counter clockwise directions dividing the graduated ring into four quadrants and the graduations are numbered from 0° to 90° in each quadrant. The zero points are marked at north and south and 90° at east and west (Fig. 5.4).

Where is the prism in a prismatic compass?

The prism is carried on a mounting which can be moved up and down between slides fixed on the outside of the case. The purpose of this up-and-down movement is to provide an adjustment for focusing.

What is prismatic compass in surveying?

A prismatic compass is a navigation and surveying instrument which is extensively used to find out the bearing of the traversing and included angles between them, waypoints (an endpoint of the lcourse) and direction. ... The compass is generally used to run a traverse line.

Compass Surveying : Reason for interchanging E and W in Surveyor and 0 @ S and 180 @ N in Prismatic

20 related questions found

What are the instrument used in prismatic compass surveying?

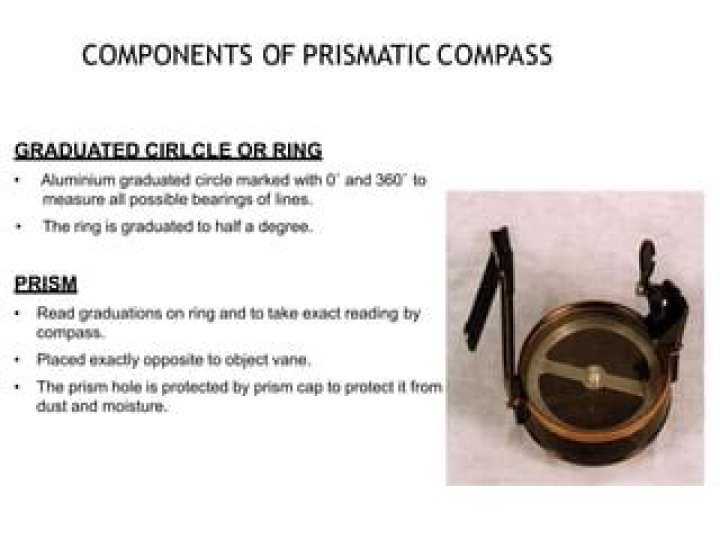

Parts of Prismatic Compass

Adjustable mirror. Sliding arrangement for a mirror. Object vane. Eye vane.

What are the components of prismatic compass?

The main parts of a prismatic compass can be briefly described as follows:

• Metal Box: The compass is enclosed in a cylindrical metallic box. ...
• Pivot: ...
• Lifting Pin and Lifting Lever: ...
• Magnetic Needle: ...
• Ring or Graduated Circle: ...
• Prism: ...
• Object Vane: ...
• Eye Vane:

Why prism is used in prismatic compass?

Hey mate here is your answer: The compass is generally used to run a traverse line. The compass calculates bearings of lines with respect to magnetic north. The name Prismatic compass is given to it because it essentially consists of a prism which is used for taking observations more accurately.

How do you read a prismatic compass?

The bearing is read from the inner circle of degrees on the compass against the lubber line. Conversely, to find the direction of a bearing, turn the compass until the inner ring below the lubber line reads the correct number of degrees and sight along the axis.

Which of the following is a part of surveyor's compass?

Which of the following is a part of surveyor's compass? Explanation: Prism cap, prism, brake pin, spring brake, pivot, agate cap etc are parts of the prismatic compass. Jewel bearing is one of the part of surveyor's compass.

What is the type of compass as per the system of graduation made?

Explanation: In prismatic compass, graduations are in W.C.B system, having 0° to south end, 90° at west, 180° at north and 270° at east. The graduations are engraved inverted. 9. In which of the following compass graduations are engraved inverted?

Which is location attraction in compass survey?

While compass surveying, the magnetic needle is sometimes disturbed from its normal position under the influence of external attractive forces. Such a disturbing influence is called as local attraction.

What are the sources of error in prismatic compass?

The prismatic compass may develop faults in manufacture and these may be due to (i) The pivot being not exactly in the centre. (ii) The balance of the graduated disc being imperfect. (iii) The line of sight not passing exactly through the centre of the prismatic compass i.e. the pivot (iv) Weak magnet.

Which type of compass shows the graduations are in quadrant bearing?

In a Surveyor Compass, the ring is divided into four quadrants and graduations are made from 0 to 90 degrees in each quadrant. 0 degrees is marked at the North and South points, and 90 degrees is marked at the east and west points.

What is bearing in survey?

In land surveying, a bearing is the clockwise or counterclockwise angle between north or south and a direction. ... In surveying, bearings can be referenced to true north, magnetic north, grid north (the Y axis of a map projection), or a previous map, which is often a historical magnetic north.

What is the principle of prismatic compass?

The Principle of Compass Survey is Traversing; which involves a series of connected lines the magnetic bearing of the lines are measured by prismatic compass and the distance (lengths) of the area measured by chain. Such survey does not require the formulation of a network of triangle.

Is prismatic compass represent true meridian?

Explanation: Prismatic Compass functions based on WCB – whole circle bearing and surveyor's compass functions based on the reduced bearing system. ... Explanation: True, magnetic and arbitrary meridians are used. True meridian passes through true North and South.

What is prismatic shape?

A prism is a 3-dimensional shape with two identical shapes facing each other. These identical shapes are called “bases”. The bases can be a triangle, square, rectangle or any other polygon. Other faces of a prism are parallelograms or rectangles.

How many types of adjustments are there in a prismatic compass?

Adjustments of prismatic compass

Two types of adjustments: Temporary adjustment. Permanent adjustment.

What are the parts of the compass?

Compass Parts: Know Your Instrument

• A Baseplate. ...
• Scales and Rulers. ...
• Direction of Travel Arrow. ...
• Magnifier. ...
• Index line. ...
• Dial. ...
• Declination Scale. ...
• Orienting arrow.

Which measurement is taken by prismatic compass?

The survey is based on the instrument known as prismatic compass. In this survey prismatic compass is used to measure the angles known as bearings and the distances are measured with the measuring tape. Thus the position of the object is determined by measuring angular and linear distances.

What is compass used in surveying?

The surveyor's compass (Fig. 11) is an instrument for determining the horizontal direction of a line with reference to the direction of a magnetic needle.

What are the types of compass survey?

There are two main kinds of magnetic compass used in surveying, both of which are included in the collection - the Surveyor's compass and the Prismatic compass.

What are the sources errors of compass?

Observational or Personal Errors:

(i) Inaccurate centering of the compass over the station-point. (ii) Inaccurate levelling of the compass. {iii) Imperfect bisection of the object sighted. (iv) Carelessness in reading and booking of the bearings.

What is closing error in prismatic compass?

While plotting a closed traverse, the starting and the ending points seldom coincide, and this discrepancy by which the ending point fails to meet with the starting one is called the closing error or error of closure.
