Shear stresses are zero on principal planes.

What is principal stress and shear stress?

Principal axes of stress are normal to planes of zero shear stress. The principal axes are orthogonal. Maximum shear stress is 45° from the principal stress direction. ... Maximum shear stress is one half the difference between the maximum and minimum principal stress.

Which stress is maximum in the principal plane?

Out of these three direct stresses, there will be one maximum stress and one minimum stress among these planes. The maximum stress is called the Principal stress and the plane at which the maximum stress induced is called the Principal plane and the shear stress will be zero on the principal planes.

What is the principle of shear stress?

Shearing stress is a force that causes layers or parts to slide upon each other in opposite directions. An example of shearing stress is the force of two connecting rocks rubbing in opposite directions. Like the normal stress, the shear stress will also have a maximum at a given angle, θτ-max. ...

What is principal plane and principal stresses?

• Principal planes are these planes within the material such that. the resultant stresses across them are wholly normal stresses or. planes across which no shearing stresses occur. • Principal stresses are those stresses which are acting on the. principal planes.

Solids: Lesson 43 - Max Shear and Principal Stress with Equations

36 related questions found

Which type of stress is plane stress?

Which type of stress is plane stress? Explanation: Plane stress is a two-dimensional stress in which stress components on any one direction is zero.

What are plane stresses?

Plane stress is defined to be a state of stress in which the normal stress, 0,, and the shear stresses, Orz and Oy z, directed perpendicular to the x-y plane are assumed to be zero. ... The loads are applied uniformly over the thickness of the plate and act in the plane of the plate as shown.

What are the 3 principal stresses?

The three principal stresses are conventionally labelled σ₁, σ₂ and σ₃. σ₁ is the maximum (most tensile) principal stress, σ₃ is the minimum (most compressive) principal stress, and σ₂ is the intermediate principal stress.

Is the shear stress on a principal plane zero?

Shear stresses are zero on principal planes. 3. Planes of maximum shear stress occur at 45° to the principal planes. ... This can be determined by substituting one of the values into the stress transformation equation for normal stress.

What do you mean by principal plane?

a plane that is perpendicular to the axis of a lens, mirror, or other optical system and at which rays diverging from a focal point are deviated parallel to the axis or at which rays parallel to the axis are deviated to converge to a focal point.

Is principal stress the maximum stress?

Principal Stress Definition: Principal Stress is the maximum and minimum stresses derived from normal stress at an angle on a plane where shear stress is zero.

What is the value of principal stress in maximum shear stress plane?

As shown in Figure 4.16, the maximum in-plane shear stress is oriented 2θ = 90 degrees from the major principal stress direction. The orientation at the point in the actual material is thus θ = 45 degrees from the major principal stress direction.

Does a plane of maximum shear stress contain?

When the shaft is subjected to pure torsion the normal stress in the plane of maximum shear will be zero. While for other cases the normal stress will exist in the plane of maximum shear stress.

Where does principal stress occur in a component?

The principal stresses are the corresponding normal stresses at an angle, θP , at which the shear stress, τ′xy τ x y ′ , is zero. This page performs full 3-D tensor transforms, but can still be used for 2-D problems.. Enter values in the upper left 2x2 positions and rotate in the 1-2 plane to perform transforms in 2-D.

What is max principal stress?

According to the theory of maximum principal stress, “The failure of a material or component will occur when the maximum value of principle stress developed in the body exceeds the limiting value of stress”. ... If maximum value of principal stress developed in the body exceeds the point D, failure will take place.

What are the principal stresses on a Mohr's circle?

Mohr's circle also tells you the principal angles (orientations) of the principal stresses without your having to plug an angle into stress transformation equations. Starting with a stress or strain element in the XY plane, construct a grid with a normal stress on the horizontal axis and a shear stress on the vertical.

What is plane stress and plane strain?

In continuum mechanics, a material is said to be under plane stress if the stress vector is zero across a particular plane. ... A related notion, plane strain, is often applicable to very thick members. Plane stress typically occurs in thin flat plates that are acted upon only by load forces that are parallel to them.

How many principal stresses are there?

There are two types of principal stresses; 2-D and 3-D. The equation of 2-D principal stress is calculated by the angle when shear stress is equal to zero. Here, the shear stress of point 2 relative to point 1 is and normal stresses are on x and y direction.

What is intermediate principal stress?

[17] For the simulated true triaxial experiments, axial load is applied under displacement control, while confining pressures are applied under load control. The intermediate principal stress is a function of the maximum principal stress, while the minimum principal stress is maintained at zero.

What is a principal stress state?

principal stresses are the maximum and minimum (extremum) extensional (norma) stresses. in a stress state at a point. The principal directions are the corresponding directions. The. principal directions have no shear stresses associated with them.

What is plane stress used for?

This is great for analyzing very thin plates that are loaded only in the plane, but it can also be applied to the surface of thicker components. In fact, the surface of a plate is the only location where true plane stress conditions can exist. It is a perfect representation of the boundary condition.

What is mean by plane stress analysis?

Plane stress analysis is the 2D stress state that is usually covered in undergraduate courses on mechanics of materials. It is based on a thin flat object that is loaded, and supported in a single flat plane. The stresses normal to the plane are zero (but not the strain).

What is plane stress transformation?

The condition that occurs in a thin plate subjected to loading uniformly distributed over the thickness and parallel to the plane of the plate typifies the state of plane stress (Fig. ... 1.10).

Is there shear stress in-plane stress?

When in-plane principal stresses are both positive or both negative, then the max shear stress is out of plane. When in-plane principal stresses have opposite signs, then the max shear stress is in-plane.

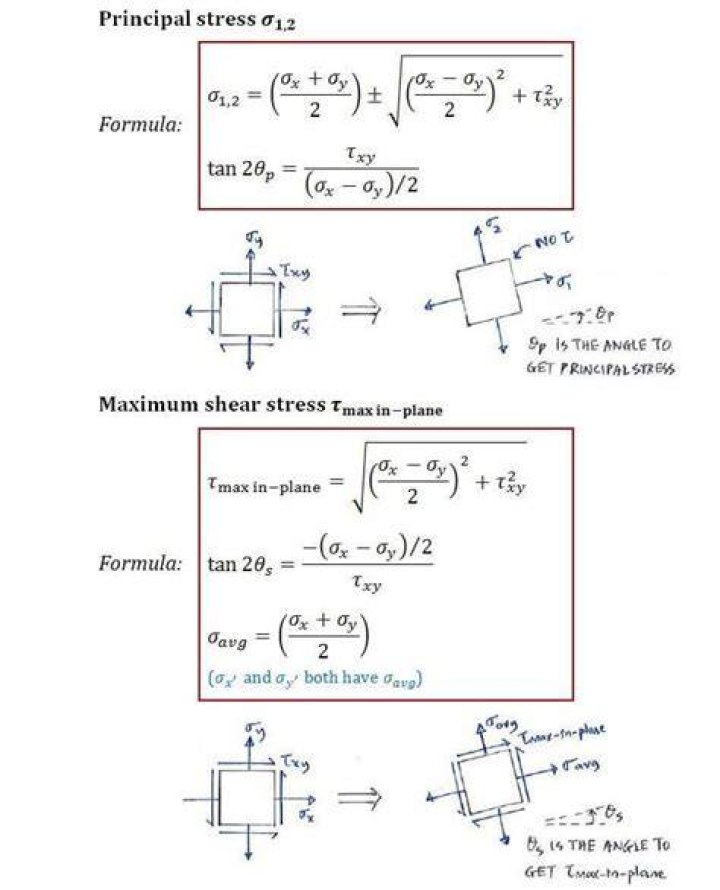

How do you find principal stress from state of stress?

In 2-D, the principal stress orientation, θP , can be computed by setting τ′xy=0 τ ′ x y = 0 in the above shear equation and solving for θ to get θP , the principal stress angle. Inserting this value for θP back into the equations for the normal stresses gives the principal values.
