Nitriding creates a component that has the following properties: High surface hardness (typically > 67 HRC) Resistance to wear. Anti-galling properties (for applications in poor lubrication conditions)

How do you measure nitriding hardness?

The test method to be used is Vickers in the low-load range. The nitriding hardness depth is derived from the curve representing the hardness over distance from the surface by measuring the distance from the surface to the calculated hardness limit.

Is nitriding surface hardening?

Nitriding is a surface hardening treatment, where nitrogen is added to the surface of steel parts either using a gaseous process where dissociated ammonia as the source or an ion or plasma process where nitrogen ions diffuse into the surface of components.

How hard is nitrided steel?

The hardness of the nitrided layer can be higher than that achieved by carburising and is in the range of 800–1200 HV.

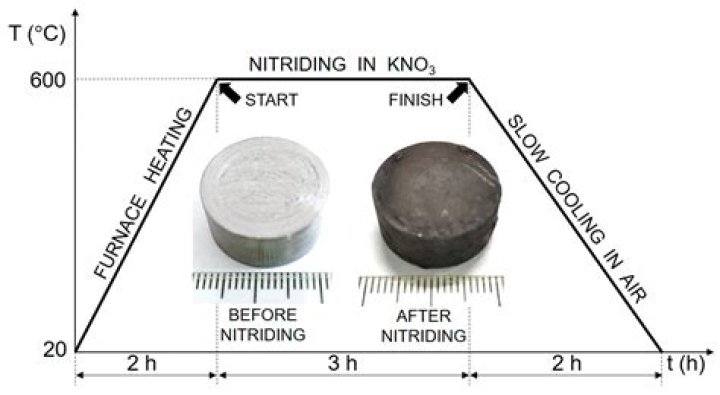

What is the nitriding process?

Nitriding is a heat treating process that diffuses nitrogen into the surface of a metal to create a case-hardened surface. These processes are most commonly used on low-alloy steels.

Nitriding Furnaces and Nitriding Process - Nitrex Metal

15 related questions found

What is the process of hardening?

The hardening process consists of heating the components above the critical (normalizing) temperature, holding at this temperature for one hour per inch of thickness cooling at a rate fast enough to allow the material to transform to a much harder, stronger structure, and then tempering.

What is nitride ion?

In chemistry, a nitride is a compound of nitrogen where nitrogen has a formal oxidation state of −3. ... The nitride ion, N³⁻, is never encountered in protic solution because it is so basic that it would be protonated immediately. Its ionic radius is estimated to be 140 pm.

What is the hardness achieved in the carbonitriding process?

Carbonitriding is often applied to inexpensive, easily machined low carbon steel to impart the surface properties of more expensive and difficult to work grades of steel. Surface hardness of carbonitrided parts ranges from 55 to 62 HRC.

What is Cyaniding process?

Cyaniding. Cyaniding is a case-hardening process that is fast and efficient; it is mainly used on low-carbon steels. The part is heated to 871–954 °C (1600–1750 °F) in a bath of sodium cyanide and then is quenched and rinsed, in water or oil, to remove any residual cyanide.

What color is nitrided steel?

Nitrided parts will typically be matte gray in color. AHT's trademarked process for added corrosion resistance, UltraOx®, will result in a sleek black finish as shown to the right.

What is the annealing process?

Annealing is a heat treatment process that changes the physical and sometimes also the chemical properties of a material to increase ductility and reduce the hardness to make it more workable.

What is a nitrided crank?

Nitriding is a process to harden the surface of a metal component. ... Lycoming uses this process to heat-treat crankshafts in their engines, increasing wear and fatigue resistance. Traditionally, gas nitriding or ammonia nitriding was used.

Why nitriding is done?

The main objectives of nitriding are to increase the surface hardness of the material, as well as its wear resistance, fatigue life, and corrosion resistance [30], which are achieved by the presence of the nitrided layer.

How do you check nitriding case depth?

Total case depth is usually measured visually by examining a part's cross section under handheld microscopes. Applying acid to the cross section prior to measurement creates the visual contrast humans need to be able to distinguish the part's case from its core.

How deep can you nitride?

The process can only be applied effectively to a limited range of appropriate alloy-containing materials. Depending upon process parameters and material, nitrided case depths can range from as little as 0.05mm up to 0.50mm. Surface hardness depends upon process parameters, the material and its original condition.

Does nitriding add thickness?

During nitriding the volume of the component increases by 3% of the layer thickness.

What is Cyaniding and nitriding?

Cyaniding Plant Cyaniding Material. Surface hardening , devised by heating the steel in an atmosphere of ammonia.  Nitriding is the last operation after shaping and heat treatment of a machine component.

What is case Carburising explain?

Carburizing, also referred to as Case Hardening, is a heat treatment process that produces a surface which is resistant to wear, while maintaining toughness and strength of the core. This treatment is applied to low carbon steel parts after machining, as well as high alloy steel bearings, gears, and other components.

What is the difference between nitriding and Cyaniding processes?

The key difference between cyaniding and carbonitriding is that cyaniding uses sodium cyanide liquid, whereas carbonitriding process uses a gaseous atmosphere consisting of ammonia and hydrocarbons. Moreover, cyaniding involves temperatures around 871 to 954 Celsius degrees.

What is the hardness achieved in the carbonitriding process Mcq?

What is the hardness achieved in the carbonitriding process? Explanation: Carbonitriding process of surface hardening results in a case depth of 0.5 mm and a hardness after heat treatment of HRC 65.

What is the difference between carbonitriding and Nitrocarburizing?

Nitrocarburizing also entails the dissolution of carbon and nitrogen into a workpiece, but, compared to carbonitriding, more nitrogen is used in nitrocarburizing. ... Case depths as a result of nitrocarburizing are typically more shallow compared to carbonitriding.

What is the difference between carburizing and carbonitriding?

The key difference between carburizing and carbonitriding is that carburizing is the process of hardening a steel surface using carbon, whereas carbonitriding is the process of hardening a steel surface using carbon and nitrogen.

Is nitride an anion?

Ionic nitrides

These compounds, which can be considered to consist of metal cations and N³⁻ anions, undergo hydrolysis (reaction with water) to produce ammonia and the metal hydroxide.
